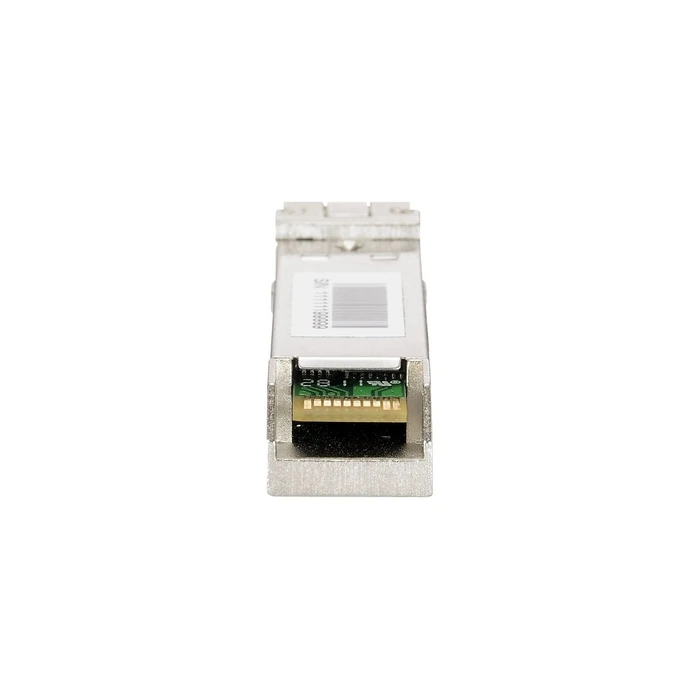

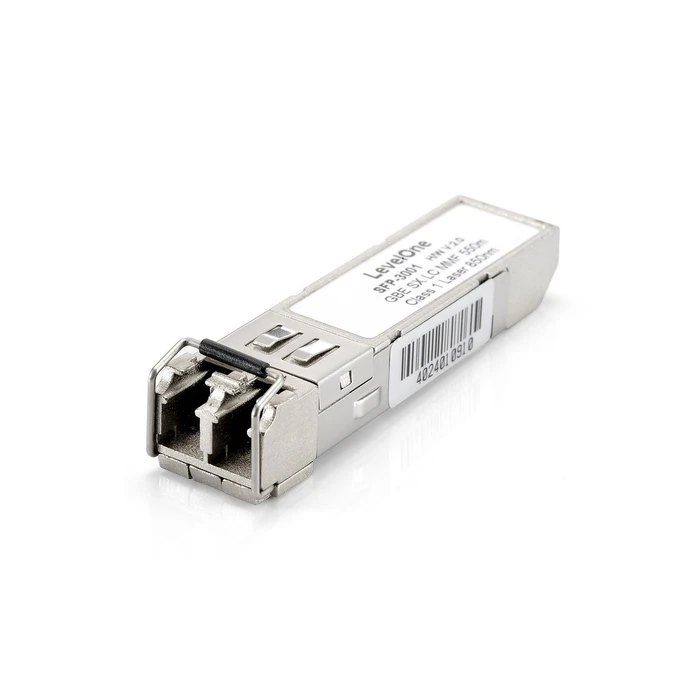

Transceiver LevelOne SFP 1.25G Multi-mode Duplex LC 550m

Τεχνικά Χαρακτηριστικά

• SFP transceiver type
  Fiber optics
• Maximum data transfer rate
  1250 Mbps
• interface
  SFP
• Single-mode fiber (SMF) supported
  no
• Multi-mode fiber (MMF) supported
  yes
• Optical cable connector
  LC
• Supported fiber cable diameters (core/sheath)
  50/125,62.5/125΅m
• Maximum possible transmission distance
  550 m
• wavelength
  850 nm
• Tx power (min)
  -9.5dBmW
• Tx power (max)
  -3dBmW
• Network standard
  IEEE 802.3z
• Duplex system
  Full
• Number of fiber connections
  1
• Plug & Play
  Hot swap
• Security
  EN 60825-1
• Certification
  CE, FCC
• Input voltage
  3.3V
• Maximum tension
  6V
• Current (maximum)
  0.3A
• operating temperatur
  0 - 70°C
• Storage temperature range
  -40 - 85°C
• Relative humidity in operation
  5 - 95%
• Goods tariff number (HS)
  85369010
• Number of products included
  1 piece(s)
• Packaging width
  106mm
• Packaging depth
  20mm
• Packaging height
  65mm
• Package weight
  35g
• Sustainability certificates
  RoHS
• Width
  57mm
• depth
  12mm
• Height
  13.7mm
• Weight
  20g
