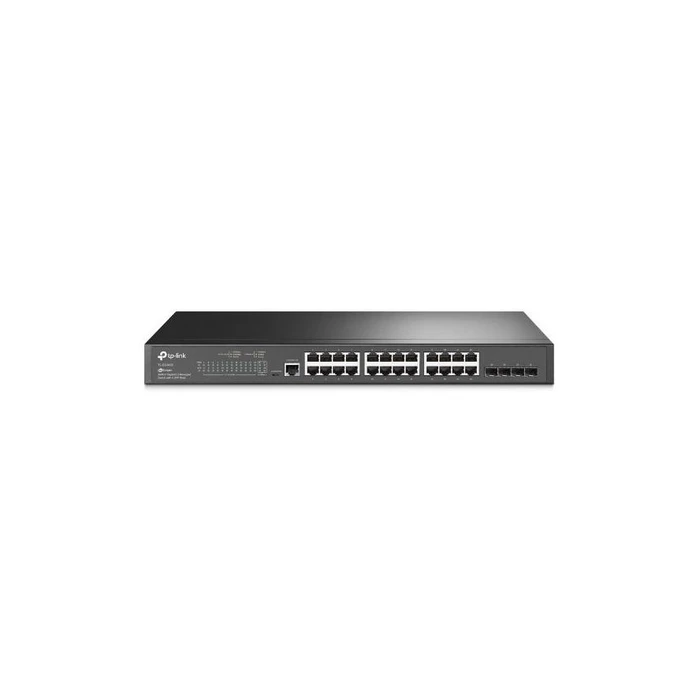

Network Switch TP-Link 24x GE TL-SG3428 (JetStream) 4xSFP v2

Τεχνικά Χαρακτηριστικά

• Number of basic switching RJ-45 Ethernet ports
  24
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Quantity of SFP module slots
  4th
• Console port
  RJ-45 / Micro-USB
• VLAN support
  yes
• Network standard
  IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3x
• 10G support
  no
• Port mirroring
  yes
• Policy-based routing
  yes
• Ethernet LAN data transfer rates
  10,100,1000 Mbit / s
• Spanning Tree Protocol
  yes
• Head-of-Line (HOL) blocking
  yes
• Rate restriction
  yes
• Active link detection
  yes
• Broadcast storm control
  yes
• Link aggregation
  yes
• Support data flow control
  yes
• MAC address table
  8000 entries
• Routing / switching capacity
  56 Gbit / s
• Transfer rate
  41.66 Mpps
• Static route
  yes
• Number of static routes
  48
• Jumbo frames support
  yes
• DHCP functions
  DHCP snooping
• IGMP snooping
  yes
• IGMP proxy
  yes
• Filter MAC addresses
  yes
• Authentication
  MAC based authentication, port based authentication
• Loop protection
  yes
• Multicast support
  yes
• Rack installation
  yes
• Form factor
  1U
• Product color
  black
• LED indicators
  yes
• System event log
  yes
• MIB support
  Yes
• Switch type
  Managed
• Switch level
  L2
• Quality of Service (QoS) support
  yes
• Cloud managed
  yes
• Web based management
  yes
• ARP inspection
  yes
• Configuration of the location settings (CLI)
  yes
• Supplied cables
  LAN (RJ-45)
• Quick start overview
  yes
• width
  440 mm
• depth
  180 mm
• height
  44 mm
• Heat dissipation
  65.58 BTU / hour
• Operating temperature range
  0 - 45 ° C
• Storage temperature range
  -40 - 70 ° C
• Humidity in operation
  10 - 90%
• Storage humidity
  5 - 90%
• Power over Ethernet (PoE)
  no
• Power supply included
  no
• AC input voltage
  100-240V
• AC input frequency
  50/60 Hz
• Power consumption (max.)
  19.22 W
