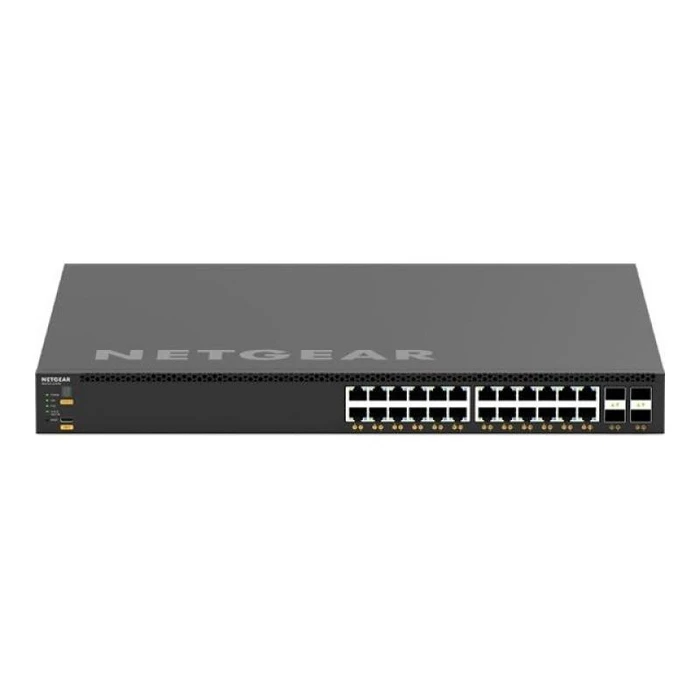

Network Switch Netgear XSM4328CV-100NES

Τεχνικά Χαρακτηριστικά

• Device Type
  Switch - 28 ports - L3 - Managed - stackable
• Enclosure Type
  Front to back airflow rack-mountable 1U
• Subtype
  10 Gigabit Ethernet / 25 Gigabit Ethernet
• Ports
  24 x 100/1000/2.5G/5G/10GBase-T (PoE+) + 4 x 1/10/25 Gigabit SFP28
• Power Over Ethernet (PoE)
  PoE+
• PoE Budget
  576 W
• Performance
  Routing/switching capacity: 680 Gbps
• Capacity
  Packet buffer size: 32 MB ¦ Multicast entries (IPv4): 256 ¦ Multicast entries (IPv6): 16 ¦ VLANs supported: 4000 ¦ Jumbo frame size: up to 12000 ¦ IGMP multicast groups: 2000 ¦ DHCP users: 2000 ¦ ARP entries: 4000 ¦ NDP entries: 512
• MAC Address Table Size
  16K entries
• Jumbo Frame Support
  12000 bytes
• Routing Protocol
  OSPF, RIP, IGMP, VRRP, PIM-SM, PIM-DM, IGMPv3, PIM-SSM, policy-based routing (PBR), MLDv2, RSTP
• Remote Management Protocol
  SNMP, RMON, Telnet, HTTPS, SSH, CLI, DHCP, RSTP, MIB
• Encryption Algorithm
  MD5, SSL 3.0, 2048-bit RSA, 256-bit SHA-2, 512-bit SHA-2, TLS 2.0
• Authentication Method
  Secure Shell (SSH), RADIUS, TACACS+
• Features
  BOOTP support, ARP support, DoS attack prevention, DiffServ support, Non-Stop Forwarding (NSF), sFlow, Jumbo Frames support, Dynamic ARP Inspection (DAI), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Dynamic VLAN Support (GVRP), Multiple VLAN Registration Protocol (MVRP), IP source guard, Bridge protocol data unit (BPDU), GARP Multicast Registration Protocol (GMRP), Spanning-tree Root Guard (STRG), LLDP-MED, proxy ARP, PTPv2 TC (Transparent Clock) support, Multiple MAC Registration Protocol (MMRP), Quad-core CPU, DHCPv4 server, DHCPv6 server
• Compliant Standards
  IEEE 802.1as, IEEE 802.1ak, IEEE 802.1Qat, IEEE 802.1Qav
• Processor
  X ARM Cortex-A57: 1.8 GHz
• RAM
  2 GB DDR4 SDRAM
• Flash Memory
  512 MB
• Status Indicators
  Power, PoE, link/activity/speed
• Interfaces
  24 x 10GBase-T RJ-45 PoE+ ¦ 4 x 25GBase-X SFP28 ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x USB Type A ¦ 1 x console (USB) Type C
• Power Device
  Internal power supply
• Power Provided
  880 Watt
• Power Consumption Operational
  119.4 Watt
• Power Consumption Stand by
  53.6 Watt
• Included Accessories
  Rubber feet, mounting brackets, rubber caps
• Cables Included
  1 x console cable
• Rack Mounting Kit
  Included
• MTBF
  486,832 hours
• Compliant Standards
  BSMI CNS 13438 Class A, EN 60950, UL 1950, CCC, RCM, BSMI CNS 14336-1, GB4943.1-2001, EN 61000-3-3:2013, EN 55024:2010, YD/T993-1998, EN 61000-3-2:2014, EN 55032:2012+AC:2013 Class A, ICES-003:2016 issue 6 Class A, cUL 950, CISPR 32:2012, VCCI-CISPR 32:2016 Class A, AN/NZS 60950.1:2015, AS/NZS CISPR32:2013 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013, GB/T9254-2008 Class A, ANSI C63.4:2014, FCC CFR 47 Part 15 Class A
• Localisation
  North America, United Kingdom, Europe
• Width
  44 cm
• Depth
  40 cm
• Height
  4.32 cm
• Weight
  6.58 kg
• Service & Support
  Limited warranty - lifetime
• Min Operating Temperature
  0 °C
• Max Operating Temperature
  45 °C
• Humidity Range Operating
  90% (non-condensing)
• Min Storage Temperature
  -20 °C
• Max Storage Temperature
  70 °C
• Humidity Range Storage
  95% (non-condensing)
