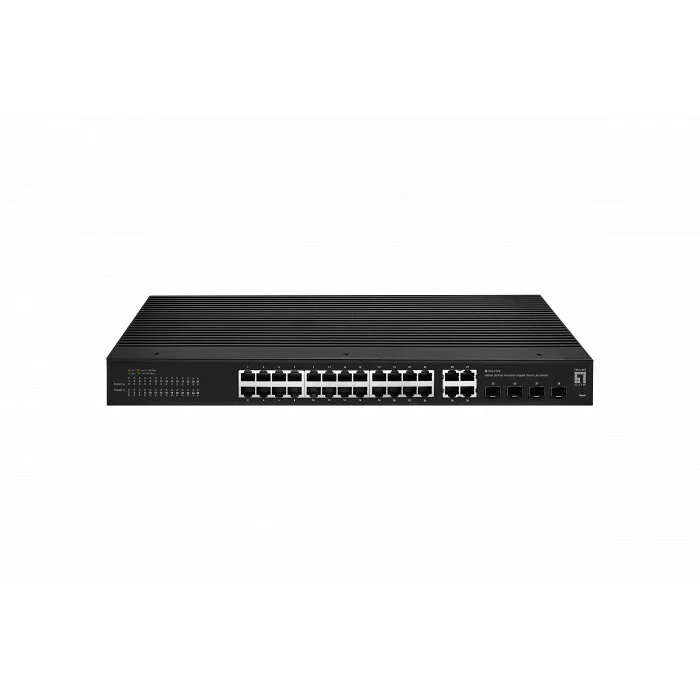

Network Switch LevelOne 28x GE IGS-2128 4xSFP, 24xRJ45 Ports sw
εως 36 δόσεις με πιστωτική κάρτα
Χρειάζεσαι Βοήθεια; Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα!
4 δόσεις 0% επιτόκιο, 20€ έως 300€
3 έως 60 δόσεις 300€ έως 100.00€
-
Layers per pallet (air)16 pc(s)
-
Pallet gross length80 cm
-
Pallet gross width120 cm
-
Compliance certificatesCE, Federal Communications Commission (FCC), RoHS, UKCA
-
Basic switching RJ-45 Ethernet ports quantity28
-
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
-
Gigabit Ethernet (copper) ports quantity24
-
Combo SFP ports quantity4
-
Width440 mm
-
Depth244 mm
-
Height45 mm
-
Weight3.4 kg
-
Power sourceDC
-
Power supply includedNo
-
Redundant power supply (RPS) supportYes
-
DC input voltage12 - 57 V
-
Power consumption (typical)20 W
-
Surge protectionYes
-
Surge protection voltage4 kV
-
Power protection featuresSurge protection
-
Operating temperature (T-T)-40 - 75 °C
-
Storage temperature (T-T)-40 - 85 °C
-
Operating relative humidity (H-H)10 - 90%
-
Storage relative humidity (H-H)5 - 95%
-
Heat dissipation68.24 BTU/h
-
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
-
10G supportNo
-
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T, 1000BASE-X
-
Port mirroringYes
-
Full duplexYes
-
Flow control supportYes
-
Link aggregationYes
-
Broadcast storm controlYes
-
Rate limitingYes
-
MAC address auto-learning supportedYes
-
MAC address auto-aging supportedYes
-
VLAN supportYes
-
Virtual LAN featuresPort-based VLAN, Tagged VLAN
-
Number of VLANs32
-
MAC address table8000 entries
-
Switching capacity56 Gbit/s
-
Jumbo frames supportYes
-
Jumbo frames9000
-
Packet buffer memory4.1 MB
-
Quick start guideYes
-
Terminal block includedYes
-
Package typeBox
-
Rack mount kitYes
-
Package width510 mm
-
Package depth375 mm
-
Package height93 mm
-
Package weight4 kg
-
IGMP snoopingYes
-
Queue scheduling algorithmsPriority queuing (PQ)
-
Switch typeManaged
-
Switch layerL2
-
Quality of Service (QoS) supportYes
-
Web-based managementYes
-
Rack mountingYes
-
Product colourBlack
-
LED indicatorsPower, Link, Activity
-
International Protection (IP) codeIP30
-
Country of originChina
-
Power over Ethernet (PoE)No
-
Flash memory2 MB
-
FanlessYes
-
Mean time between failures (MTBF)43800 h
