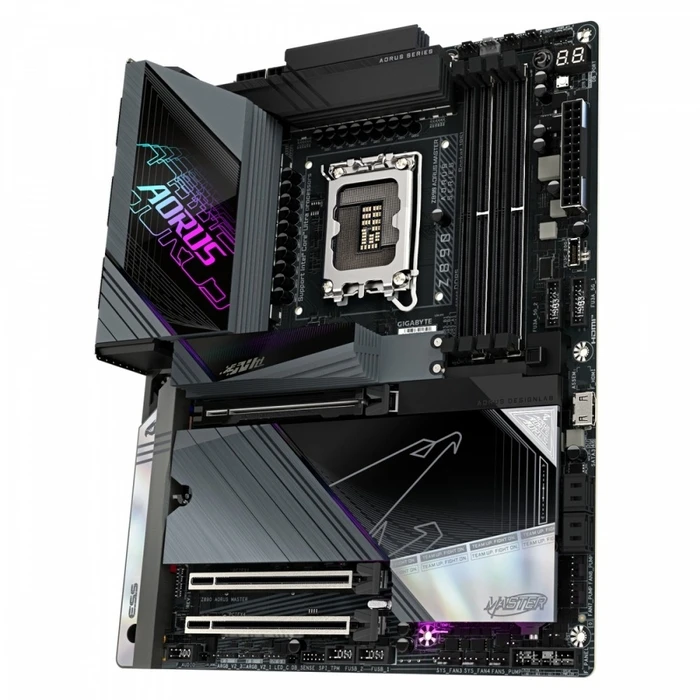

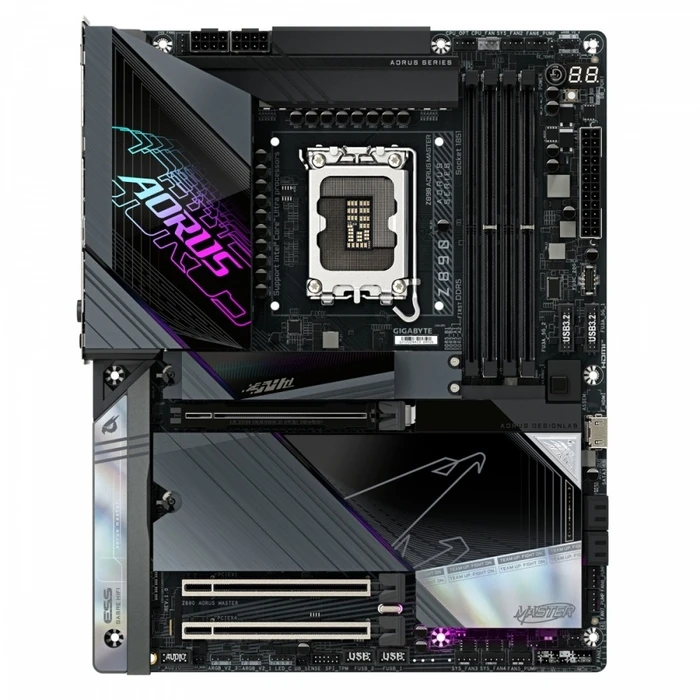

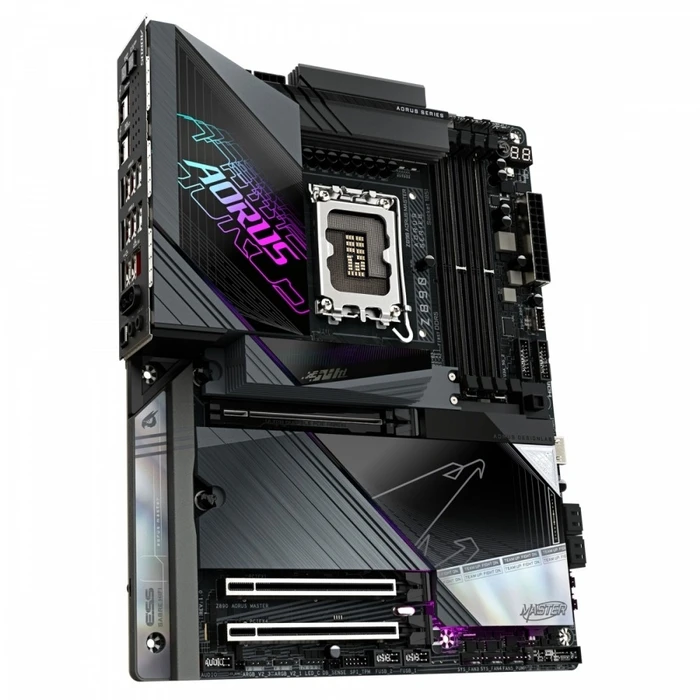

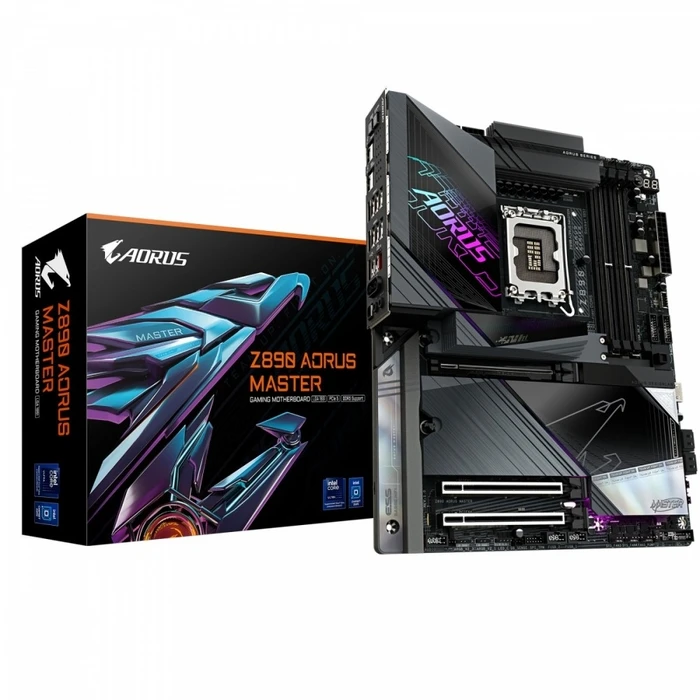

Motherboard Gigabyte Z890 Aorus Master

Z890 AORUS MASTER

• Supports Intel Core Ultra processors (Series 2)
• Digital twin 18+1+2 phases VRM solution
• D5 Bionic Corsa for Infinite Memory Performance
• AORUS AI SNATCH: Auto-Overclocking Software by AI models
• AI Perfdrive: Provides optimal and customized BIOS preset profile for users
• Premium Compatibility: 4*DDR5 with XMP Memory Module Support
• DDR Wind Blade: Enhanced Active Cooling for Memory Modules
• WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
• EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
• EZ-Latch Click: M.2 heatsinks with screwless design
• Sensor Panel Link: Onboard video port for hassle-free in-chassis panel setup
• Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
• New Power Monitor in HWinfo for real-time monitoring on CPU power phases
• Ultra-Fast Storage: 5*M.2 slots, including 2* PCIe 5.0 x4
• Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard XL
• Fast Networking: 10GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
• Extended Connectivity: Dual THUNDERBOLT 4 Type-C with DP-Alt
• DTS: X Ultra Audio: ALC1220 & Rear ESS SABRE Hi-Fi 9118 DAC
• Ultra Durable PCIe Armor : The metal back plate of PCIe x16 slot for enhanced durability
• PCIe UD Slot X: PCIe 5.0 x16 slot with 10X strength for graphics card

Model:

Z890 AORUS MASTER

CPU socket: LGA1851

Processor family: Intel Core Ultra

Integrated CPU: No

Chipset manufacturer: Intel

Chipset type:

Intel Z890 Express

Memory type: DDR5

Number of DDR5 slots: 4

Memory bus frequency: 6400 MHz

Memory bus frequency: 6600 MHz

Memory bus frequency: 6200 MHz

Memory bus frequency: 9466 MHz

Memory bus frequency: 8933 MHz

Memory bus frequency: 9066 MHz

Memory bus frequency: 8800 MHz

Memory bus frequency: 8400 MHz

Memory bus frequency: 8200 MHz

Memory bus frequency: 8266 MHz

Memory bus frequency: 8000 MHz

Memory bus frequency: 7950 MHz

Memory bus frequency: 7900 MHz

Memory bus frequency: 7800 MHz

Memory bus frequency: 7400 MHz

Memory bus frequency: 7200 MHz

Memory bus frequency: 5600 MHz

Memory bus frequency: 5800 MHz

Memory bus frequency: 6000 MHz

Memory bus frequency: 9500 MHz

Memory bus frequency: 9333 MHz

Memory bus frequency: 9200 MHz

Memory bus frequency: 8600 MHz

Memory bus frequency: 7600 MHz

Memory bus frequency: 7000 MHz

Memory bus frequency: 6800 MHz

Expansion slots: 1 x PCIe 3.0 x 16

Expansion slots: 1 x PCIe 5.0 x 16

Expansion slots: 1 x PCIe 4.0 x 16

RAID: Yes

Detailed data on disk/drive interfaces:

CPU:

• 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support) (M2D_CPU)

Chipset:

• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
• 4 x SATA 6Gb/s connectors

Graphics:

Integrated Graphics Processor-Intel HD Graphics support:

• 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports), supporting DisplayPort and Thunderbolt video outputs

When a Thunderbolt monitor is installed, the maximum resolution supported is 5120x2880@60 Hz with 24 bpp (single display output).

When a USB4 USB Type-C monitor is installed, the maximum resolution supported is 3840x2160@240 Hz (single display output).

• 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz
  support for HDMI 1.4 version.

Sound card:

• Realtek ALC1220 CODEC
• ESS ES9118 DAC chip
• Support for DTS:X Ultra
• High Definition Audio
• 2/4/5.1-channel

Network interface: Wi-Fi 802.11a/b/g/n/ac/ax/be

Network interface: Bluetooth

Network interface: 1 x 10Gbit/s 10GBase-T

Network interface:

LAN: Marvell AQtion AQC113C 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless communication:

• Intel Wi-Fi 7 BE200NGW
• 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.4
• Support for 11be 320MHz wireless standard

FireWire (IEEE 1394): No

COM connector / port: No

LPT connector / port: No

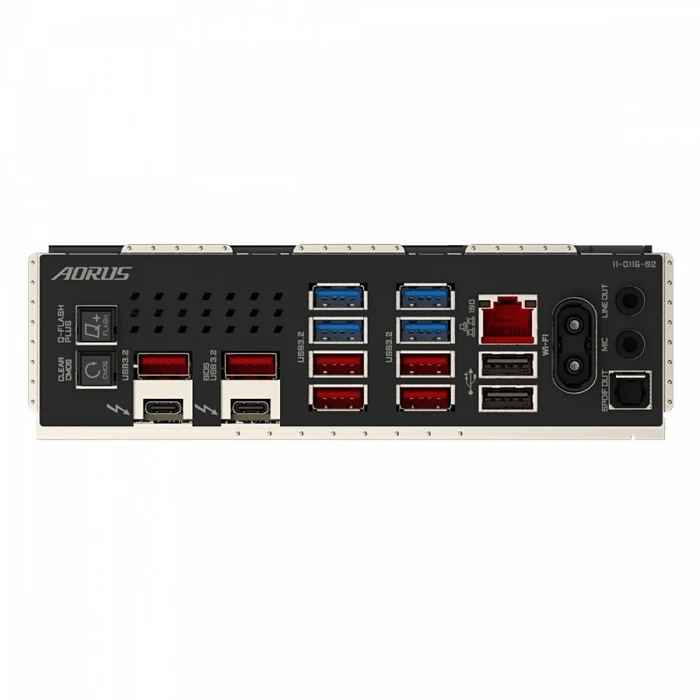

External connectors: 2 x SMA

External connectors: 1 x Przycisk Clear CMOS

External connectors: 1 x Q-Flash Plus button

External connectors: 1 x Line Out

External connectors: 1 x MIC

External connectors: 1 x RJ-45

External connectors: 1 x S/PDIF

External connectors: 2 x USB 2.0

External connectors: 4 x USB 3.0

External connectors: 6 x USB 3.1

External connectors: 2 x Thunderbolt 4

Onboard connectors: 5 x M.2

Onboard connectors: 1 x 24pin ATX zasilanie

Onboard connectors: 1 x Voltage measurement module

Onboard connectors: 1 x Noise detection header

Onboard connectors: 1 x HDMI

Onboard connectors: 1 x TPM header

Onboard connectors: 1 x System panel header

Onboard connectors: 1 x Front panel audio header

Onboard connectors: 1 x Clear CMOS jumper

Onboard connectors: 1 x Power button

Onboard connectors: 1 x Reset button

Onboard connectors: 1 x Reset jumper

Onboard connectors: 1 x 4pin CPU fan

Onboard connectors: 1 x 4pin CPU/Water Pump Fan Connector

Onboard connectors: 4 x 4pin Chassis fan

Onboard connectors: 4 x 4pin Chassis/Water Pump Fan Connectors

Onboard connectors: 1 x 8pin 12V power

Onboard connectors: 2 x temperature sensor

Onboard connectors: 4 x SATA III 6Gb/s

Onboard connectors: 4 x Adresowalna dioda LED

Onboard connectors: 1 x RGB LED strip header

Onboard connectors: 2 x USB 2.0/1.1 header

Onboard connectors: 4 x USB 3.0

Onboard connectors: 1 x USB C

Special functions:

• Support for GIGABYTE Control Center (GCC)
• Support for Q-Flash
• Support for Q-Flash Plus
• Support for Smart Backup

BIOS:

• 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Form factor: ATX

Dimensions:

30.5 x 24.4 cm

Supported operating systems: Windows 11

Software:

• Norton Internet Security (OEM version)
• LAN bandwidth management software
