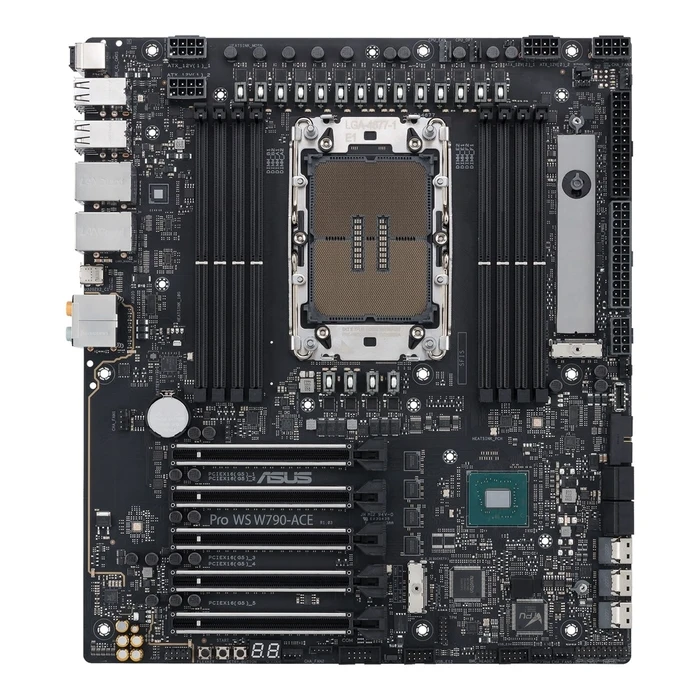

Motherboard Asus PRO WS W790-ACE Intel W790 LGA 4677

Τεχνικά Χαρακτηριστικά

• Processor socket
  LGA 4677
• Compatible processor series
  Intel Xeon W
• Processor manufacturer
  Intel
• Intel Xeon series
  W-3400
• Audio output channels
  7.1 channels
• Windows operating systems supported
  Windows 10 x64
• Component for
  Workstation
• Motherboard chipset
  Intel W790
• Audio chip
  Realtek S1220A
• Motherboard chipset family
  Intel
• Number of memory slots
  8
• Supported memory types
  DDR5-SDRAM
• Memory slots type
  DIMM
• Supported memory clock speeds
  6800
• ECC
  Y
• Memory channels
  Quad-channel
• Maximum internal memory
  2048 GB
• Depth
  277 mm
• Height
  50 mm
• Width
  305 mm
• Ethernet LAN
  Y
• Wi-Fi
  N
• Ethernet interface type
  10 Gigabit Ethernet
• 12V power connector
  Y
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• Number of SATA III connectors
  4
• Number of COM connectors
  1
• EPS power connector (8-pin)
  Y
• USB 3.2 Gen 2 (3.1 Gen 2) connectors
  1
• Number of chassis fan connectors
  5
• Front panel audio connector
  Y
• USB 2.0 connectors
  2
• TPM connector
  Y
• CPU fan connector
  Y
• ATX Power connector (24-pin)
  Y
• Clear CMOS button
  Y
• BIOS memory size
  512 Mbit
• BIOS type
  UEFI AMI
• Package width
  370 mm
• Package weight
  3.52 kg
• Package height
  108 mm
• Package depth
  312 mm
• Number of HDDs supported
  4
• Supported storage drive types
  HDD & SSD
• RAID support
  Y
• RAID levels
  1
• Number of storage drives supported
  6
• Supported storage drive interfaces
  M.2, SATA III
• Headphone outputs
  1
• USB 3.2 Gen 2x2 Type-C ports quantity
  1
• Microphone in
  Y
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  4
• Ethernet LAN (RJ-45) ports
  2
• USB 2.0 ports quantity
  8
• S/PDIF out port
  Y
• PCI Express x16 (Gen 5.x) slots
  5
• Weight
  1.81 kg
