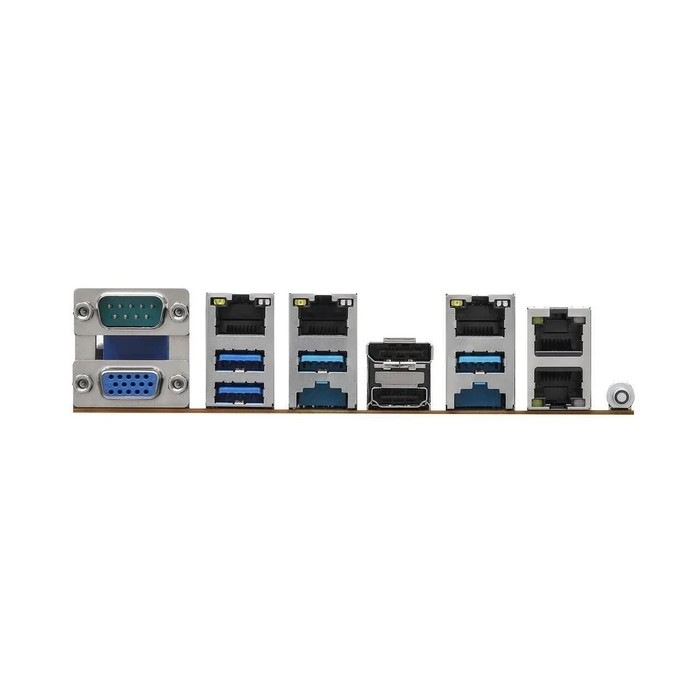

Motherboard ASRock Rack B650D4U-2L2T/BCM micro ATX - Socket AM5 - AMD B650E

Τεχνικά Χαρακτηριστικά

• Installed number
  0
• Max. supported number
  1
• Form factor
  Micro ATX
• Compatible processors
  Ryzen
• Chipset
  AMD B650E
• Supported RAM technology
  DDR5 SDRAM
• Supported RAM integrity check
  Non-ECC, ECC
• Supported RAM speed
  3600MHz, 5200MHz
• processor socket
  Socket AM5
• Power connections
  Main power connector, 24-pin, 2 8-pin ATX12V connectors
• Supported RAM memory (registered or buffered)
  Unbuffered
• RAM slots
  4 DIMM slots
• Internal interfaces
  1 x audio pin header, 2 x USB 2.0 pin header, 1 x speaker pin header, 2 x USB 3.2 Gen 1 pin header, 1 x SPI pin header
• Max supported size
  128GB
• Type
  Graphics adapter
• Graphics processor
  ASPEED AST2600
• Network controller
  Broadcom BCM57416 / Intel I210
• network
  2 x 10 Gigabit Ethernet, Gigabit Ethernet
• Expansion slots
  1 x CPU, 1 x M.2 socket (2242/2280 M.2 Key M Slot), 1 x PCIe 5.0 x16, 4 x DIMM 288-pin (1.1 V), 1 x PCIe 5.0 x4, 1 x PCIe 4.0 x1
• Memory interfaces
  PCIe 5.0 -connection points: 1 x M.2, PCIe 4.0 -connection points: 1 x OCuLink, SATA-600 -connection points: 4 x 7-pin Serial ATA, SATA-600 / PCIe 3.0 -connection points: 1 x OCuLink
• Storage
  Serial ATA-600, M.2 socket, OCuLink port
• USB/FireWire
  USB 3.2 Gen 1
• Mass storage interfaces
  4 x SATA-600, 2 x OCuLink port, 1 x M.2 *
• USB/FireWire port configuration (active)
  4 x USB 3.2 Gen 1
• USB/FireWire port configuration (header)
  2 x USB 3.2 Gen 1 + 2 x USB 2.0
• Width
  24.4cm
