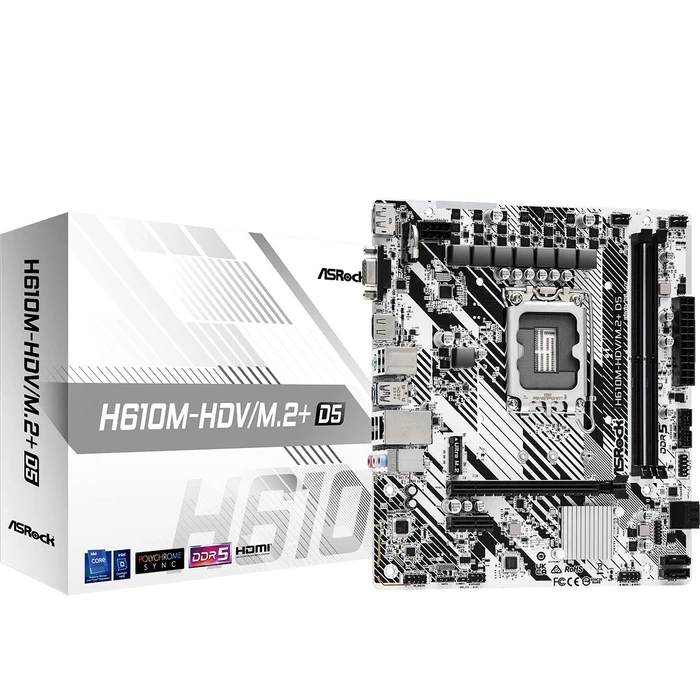

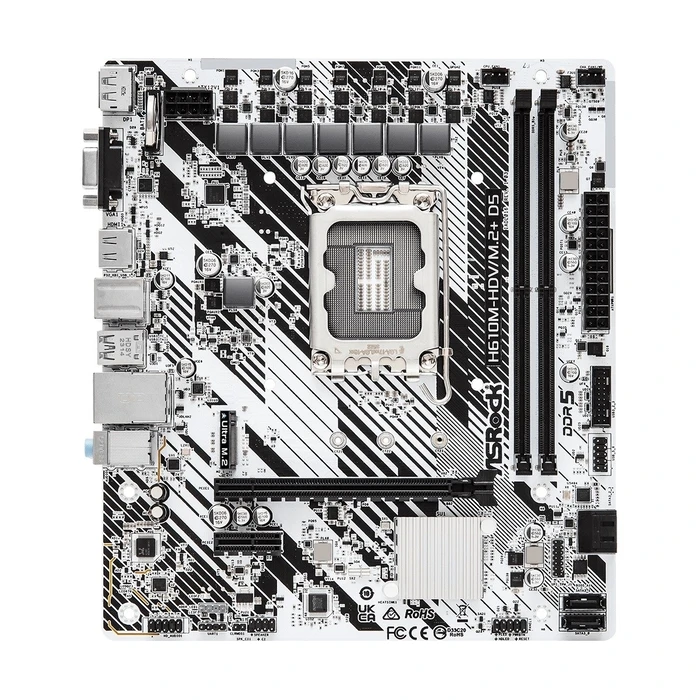

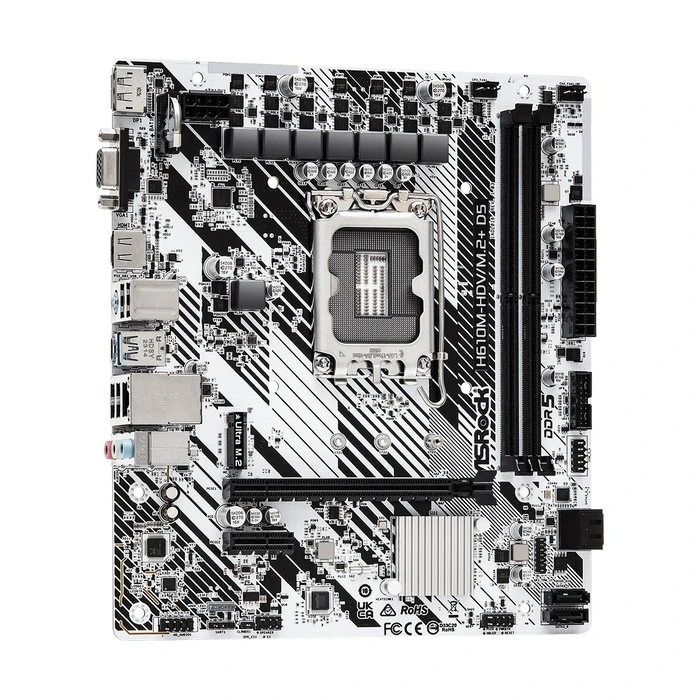

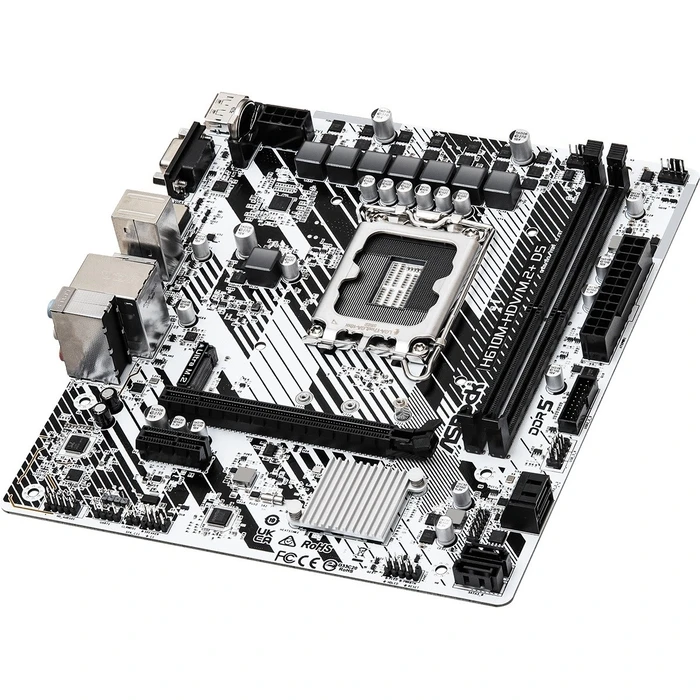

Motherboard ASRock H610M-HDV/M.2+ D5 Intel H610 LGA 1700 micro ATX

Τεχνικά Χαρακτηριστικά

• Processor socket
  LGA 1700
• Maximum number of SMP processors
  1
• Processor manufacturer
  Intel
• Compatible processor series
  Intel Core i7
• Maximum resolution
  7680 x 4320 pixels
• HDCP
  Y
• Parallel processing technology support
  Not supported
• Windows operating systems supported
  Windows 10 x64
• PC health monitoring
  Fan
• Motherboard form factor
  micro ATX
• Motherboard chipset family
  Intel
• Audio chip
  Realtek ALC897
• Motherboard chipset
  Intel H610
• Number of memory slots
  2
• Supported memory types
  DDR5-SDRAM
• Memory slots type
  DIMM
• Memory channels
  Dual-channel
• Unbuffered memory
  Y
• Maximum internal memory
  96 GB
• Supported memory clock speeds
  5600
• Depth
  193 mm
• Width
  220 mm
• Ethernet interface type
  Gigabit Ethernet
• Wi-Fi
  N
• Ethernet LAN
  Y
• LAN controller
  Realtek 8111H
• Wake-on-LAN ready
  Y
• 12V power connector
  Y
• RGB LED pin header
  Y
• Number of SATA III connectors
  4
• USB 2.0 connectors
  1
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• Chassis intrusion connector
  Y
• Number of chassis fan connectors
  1
• ATX Power connector (24-pin)
  Y
• TPM connector
  Y
• CPU fan connector
  Y
• BIOS type
  UEFI AMI
• Cables included
  SATA
• Supported storage drive types
  HDD & SSD
• RAID support
  N
• Supported storage drive interfaces
  M.2, SATA III

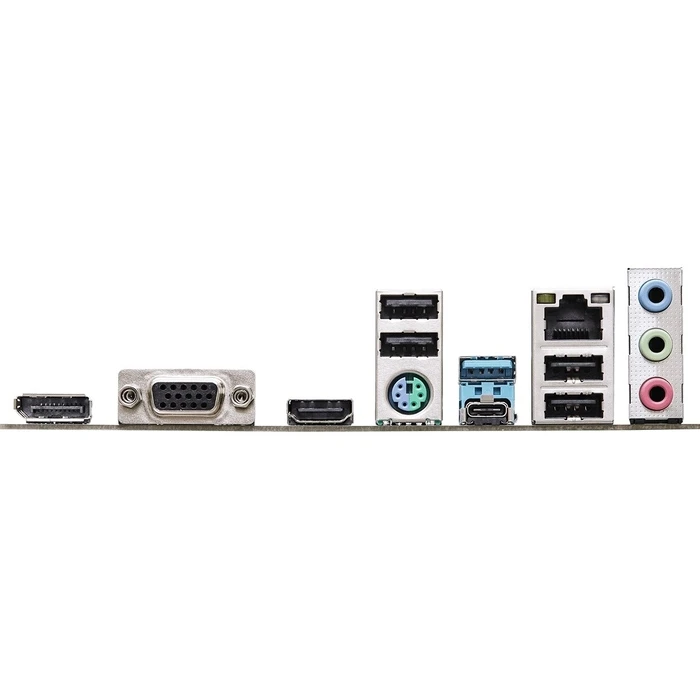

• VGA (D-Sub) ports quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
  1
• DisplayPorts quantity
  1
• Ethernet LAN (RJ-45) ports
  1
• HDMI version
  2.1
• USB 2.0 ports quantity
  4
• PS/2 ports quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  1
• HDMI ports quantity
  1
• DisplayPort version
  1.4
• PCI Express x16 (Gen 4.x) slots
  1
• PCI Express x1 (Gen 3.x) slots
  1
• Number of M.2 (M) slots
  1
