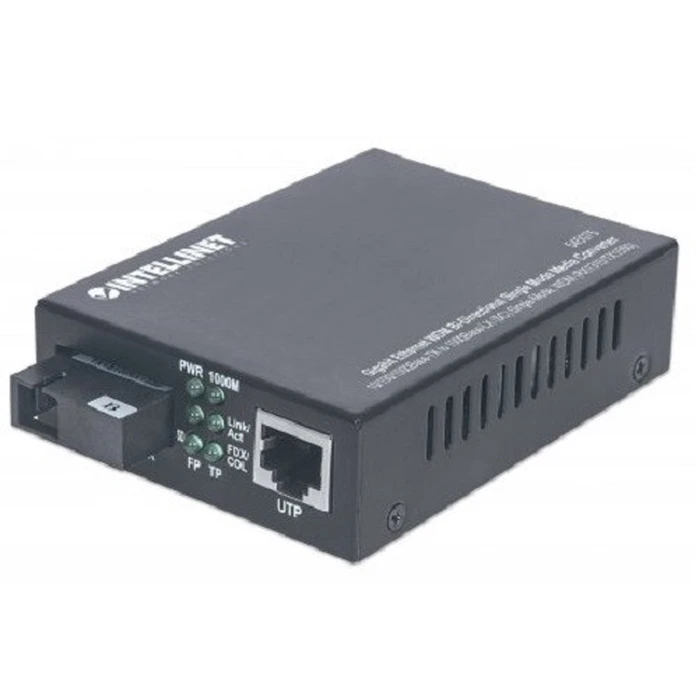

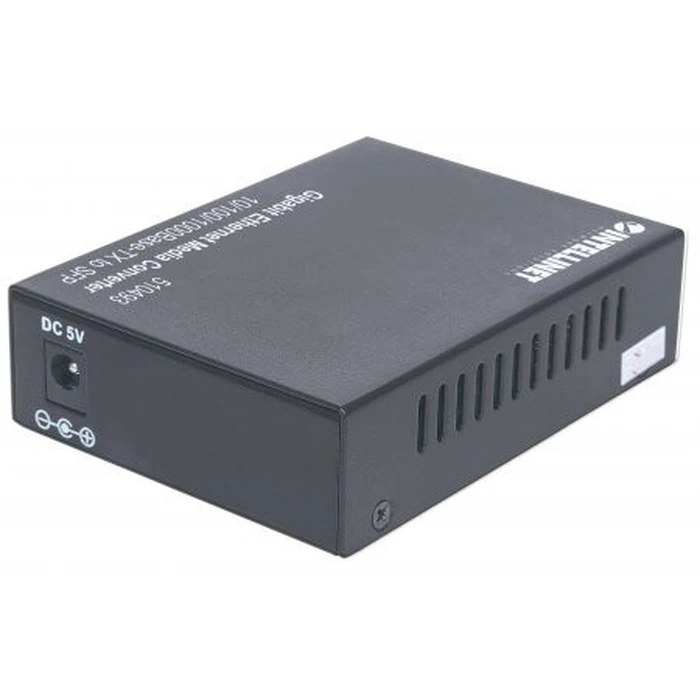

Media Converter Intellinet Gigabit SFP 100m

network
Data transfer rate (max)1000 Mbit / s
Converter input interface10Base-T, 100Base-TX, 1000Base-TX
Networking standardsIEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet Interface TypeFast Ethernet, Gigabit Ethernet
Ethernet LAN data transfer rates10,100,1000 Mbit / s
Data transfer rate1000 Mbit / s
Auto MDI / MDI-X
Duplex SystemFull
supported cable typesCat5e, fiber
Connectors and Interfaces
transmission technologyWired
Ethernet LAN ports (RJ-45)1
Fibre Channel ports1
Optical cable connectorSFP
power
Maximum transfer distance100 m
Cable mode structureMulti-mode, single-mode
design
Colour of productblack
housing materialmetal
LED displaysLink, Power
energy
External power supply
input voltage12
input power1.2
Power consumption (max.)5 W
packaging content
User Guide
Certificates
certificationFCC Class A, CE
operating conditions
Temperature range in operation0 - 50 ° C
Storage temperature range-20 - 70 ° C
Humidity in operation10 - 80%
Weight & dimensions
width70 mm
depth96 mm
height26 mm
weight170 g
