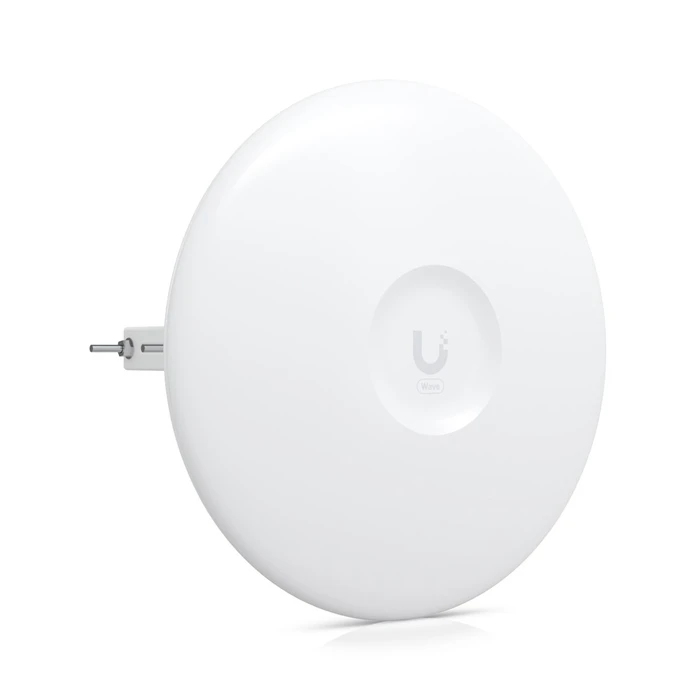

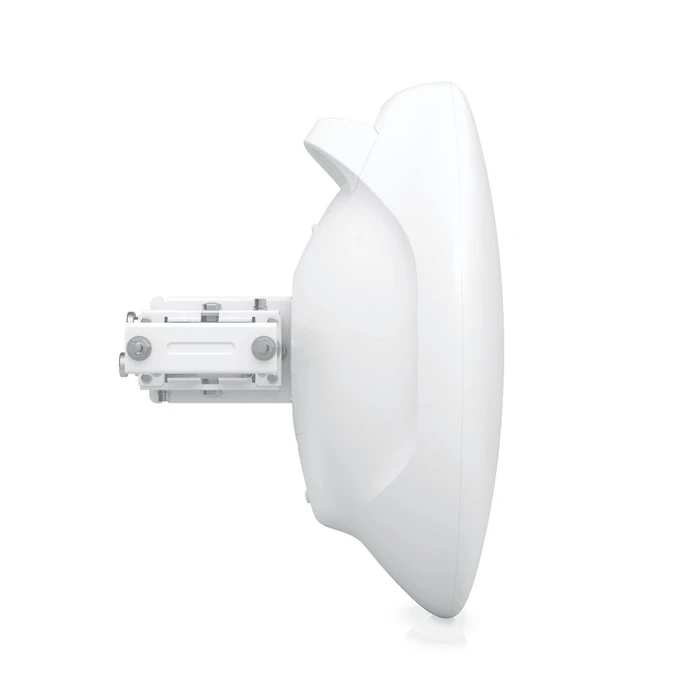

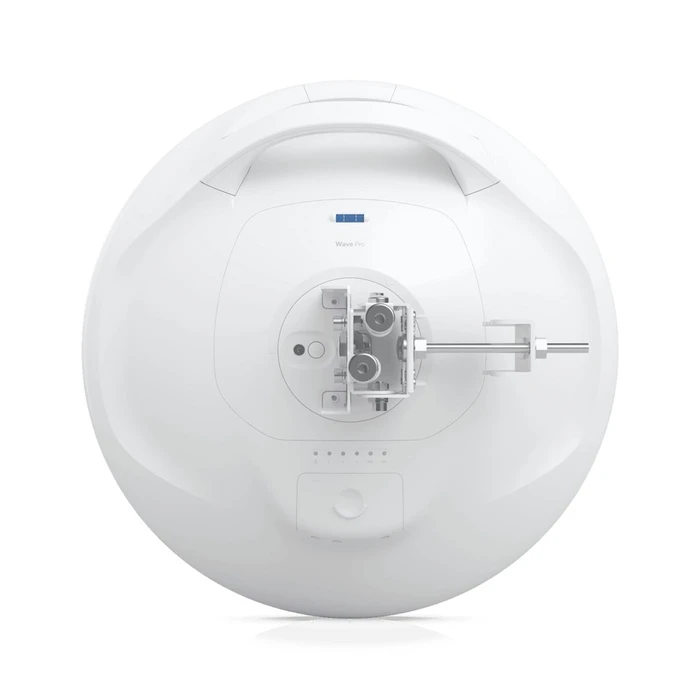

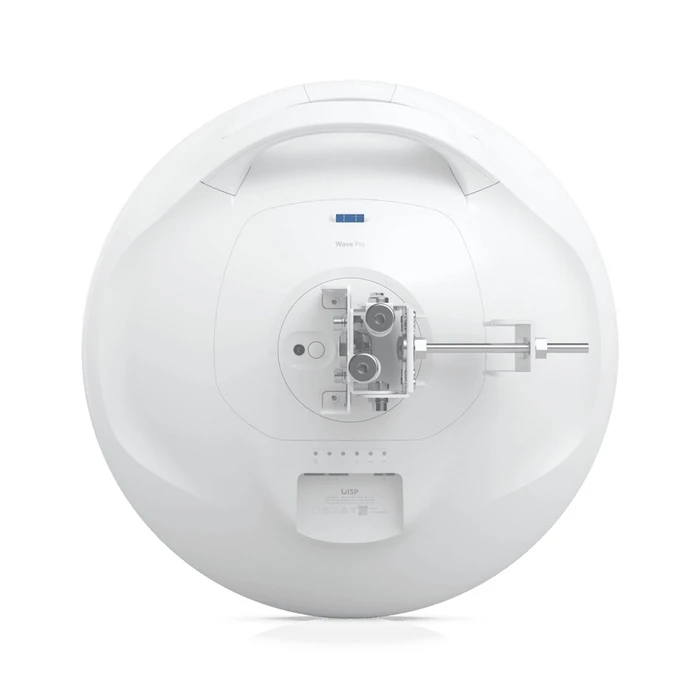

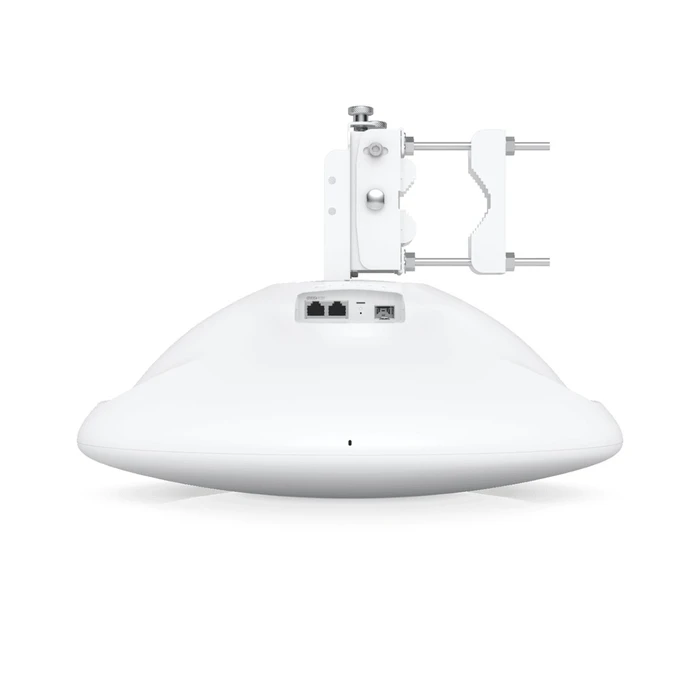

Κεραία WiFi Ubiquiti Wave Professional Network bridge 2500 Mbit/s White

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Dimensions
  ?424.4 x 166.2 mm
• Weight
  2.8 kg (without mount), 4 kg (with mount)
• Enclosure Material
  Aluminum alloy and UV-stabilized plastic
• Mount Material
  Stainless steel
• Pole Mount Diameter
  25 to 76.2 mm
• Wind Loading
  369 N at 200 km/h
• Weatherproofing
  IPX6
• Processor
  Quad-core ARM Cortex-A53, 1.4 GHz
• Memory
  512 MB DDR3L
• Networking Interface
  Two 2.5 GbE RJ45 ports and one 10G SFP+ port
• Max Power Consumption
  26W
• Power Method
  Passive PoE (44–54V DC)
• Power Supply
  48V DC, 0.65A PoE adapter
• Supported Voltage Range
  44–54V DC, 22–27V DC
• GPS
  Yes
• Button
  Factory reset
• LEDs
  Power, Ethernet, SFP+, GPS, link status
• Ambient Operating Temperature
  -40°C to 60°C
• Ambient Operating Humidity
  5% to 95% noncondensing
• Certifications
  FCC, IC, CE
• Operating Mode
  PtP and PtMP station modes
• Ubiquiti Specific Features
  Integrated 60 GHz radio, discovery protocol, Wave technology
• Services
  UISP, ping watchdog, NTP client, SNMP
• Tools
  Antenna alignment, discovery utility, ping, trace route, speed test, cable test, site survey
• Network Mode
  Bridge/router mode
• Application Requirements
  UISP version 2.3.0 or later
• Total Throughput
  5.4 Gbps (3.2 Gbps duplex)
• Max Range
  15 km (PtP), 8 km (PtMP)
• Operating Frequency
  57 to 71 GHz (60 GHz radio), 5150 to 5875 MHz (5 GHz radio)
• Channel Bandwidth
  2160, 1080, 540 MHz (60 GHz radio), 20, 40, 80 MHz (5 GHz radio)
• Modulation
  BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM
• Antenna Gain
  46 dBi (60 GHz), 22 dBi (5 GHz)
• Polarization
  Vertically linear (60 GHz), dual-linear (5 GHz)
• Beamwidth
  60 GHz: azimuth 3 dB 1.3°; 5 GHz: azimuth 3 dB 8°
• Cross-Pol Isolation
  20 dB (5 GHz)
