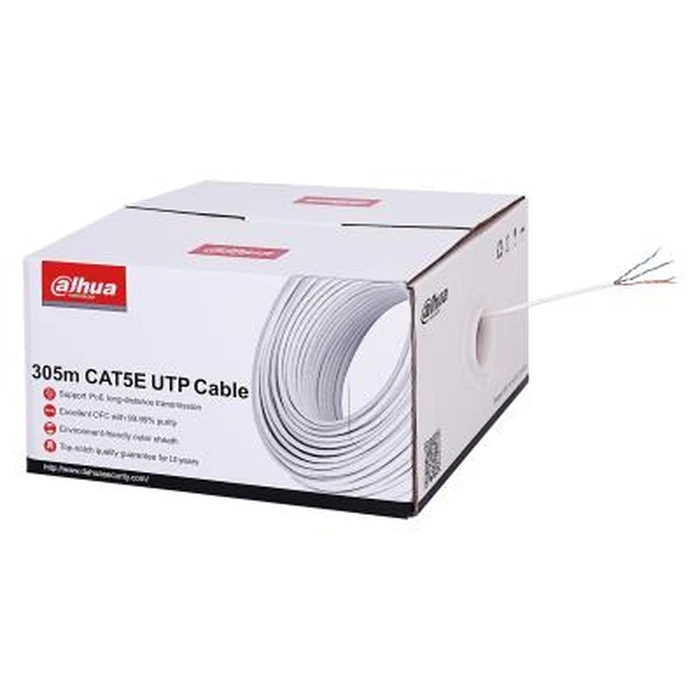

Καλώδιο Δικτύου Dahua Cat5E Utp 305M White/Pfm920I-5Eu-C

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Conductor Material
  High-purity oxygen-free copper (OFC), 24 AWG
• Cable Length
  305 meters
• Impedance
  100 ± 15 Ω
• Maximum DC Resistance
  9.38 Ω per 100 meters
• Insulation Resistance
  Minimum 5000 MΩ·km
• Dielectric Strength
  No breakdown with 2.5 kV DC for 2 seconds
• Attenuation
  Maximum 22.0 dB per 100 meters at 100 MHz
• Near-End Crosstalk (NEXT)
  ≥ 35.30 dB per 100 m at 100 MHz
• Return Loss
  ≥ 20.1 dB per 100 m at 100 MHz
• Tensile Strength (Sheath)
  ≥ 13.8 MPa
• Tensile Strength (Insulation)
  ≥ 16.5 MPa
• Elongation at Break (Sheath)
  ≥ 100%
• Elongation at Break (Insulation)
  ≥ 300%
• Installation Bending Radius
  Greater than 8 times the outer diameter of the cable
• Conductor Elongation at Break
  ≥ 10%
• Operating Temperature Range
  –10°C to +40°C
• Sheath
  Customized PVC outer sheath, UL CM or CMR flame retardant classification
