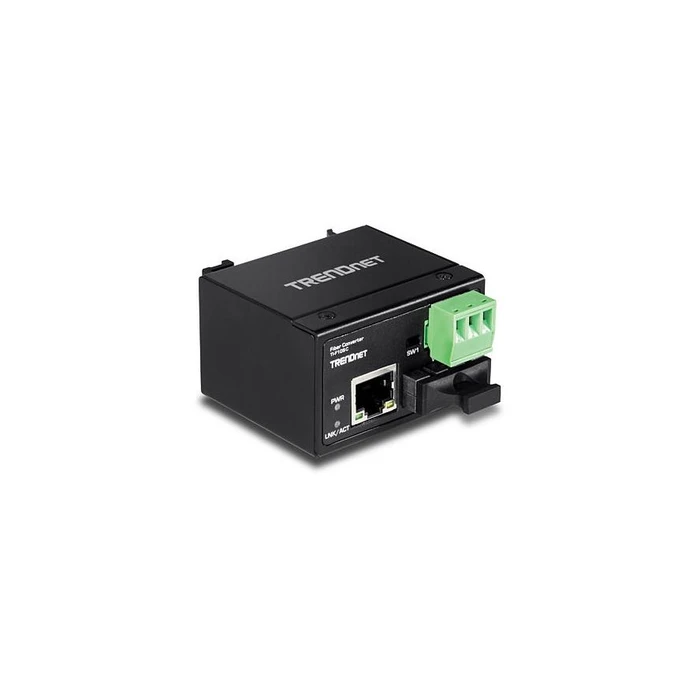

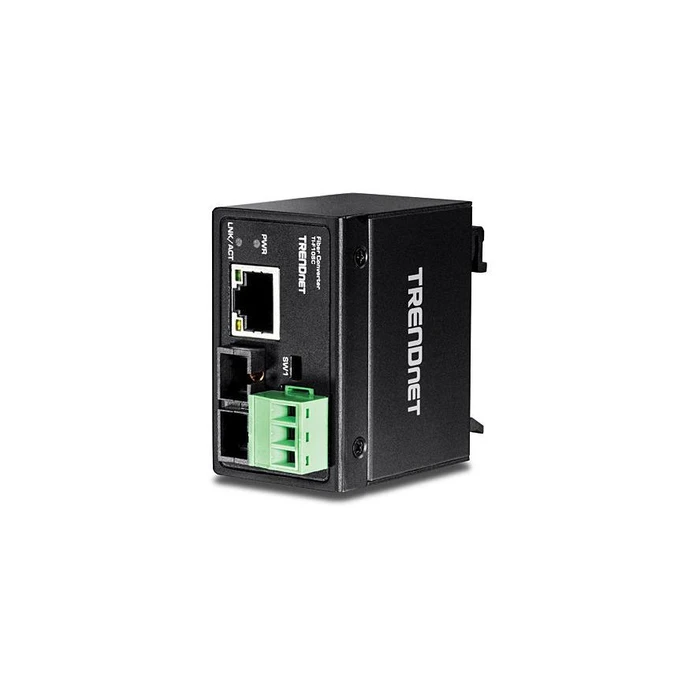

Μετατροπέας TrendNet converter Industrial 100Base-FX SC 2KM IP 30

Τεχνικά Χαρακτηριστικά

• Input voltage
  12 - 60 V.
• Power consumption (max.)
  1.92 W.
• Maximum data transfer rate
  200 Mbit / s
• Converter input interface
  100Base-TX
• Converter output surface
  100Base-FX
• Network standard
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Ethernet interface type
  Fast ethernet
• Ethernet LAN data transfer rates
  10.100 Mbit / s
• Copper ethernet cabling technology
  10BASE-T, 100BASE-TX
• Ethernet cable cabling technology
  100BASE-FX
• Support data flow control
  yes
• Auto-negotiation function
  yes
• Duplex system
  Full, half
• Transmission technology
  Wired
• Number of Ethernet LAN ports (RJ-45)
  1
• Number of fiber connections
  1
• Optical cable connector
  SC
• Mean Time Between Failures (MTBF)
  510304 h
• Maximum possible transmission distance
  2000 m
• wavelength
  1310 nm
• Cable fashion structure
  Multi mode
• Supported fiber cable diameters (core / cladding)
  50 / 125,62.5 / 125 ΅m
• Link budget
  7 dB
• Certification
  FCC, CE
• Built-in
  no
• DIN rail mounting
  yes
• LED indicators
  yes
• Housing material
  metal
• International protection class (IP code)
  IP40
• Product color
  black
• Quick installation guide
  yes
• Operating temperature range
  -40 - 75 ° C
• width
  60 mm
• depth
  50 mm
• height
  35 mm
• Weight
  88 g
