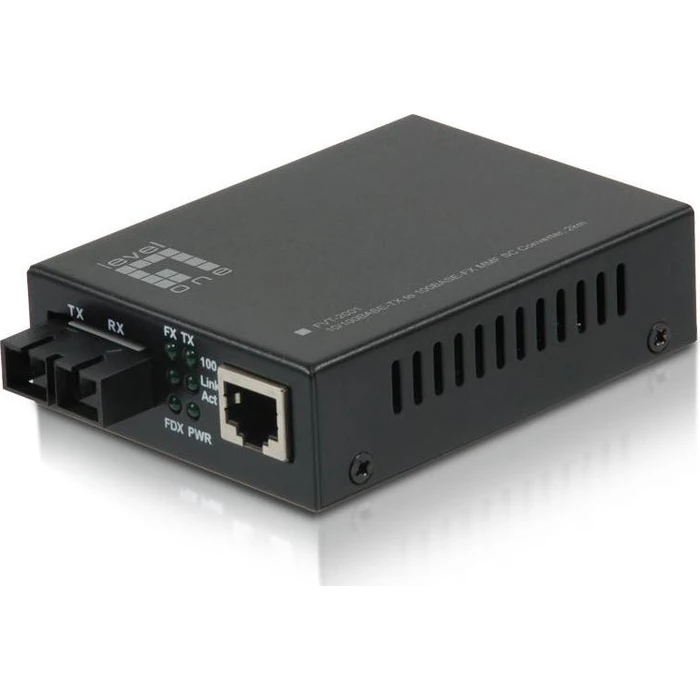

Μετατροπέας LevelOne FVT-2001 10/100TX>100FX SC MM 2km

Τεχνικά Χαρακτηριστικά

• Input voltage
  5 V
• Input current
  1 A
• Maximum data transfer rate
  100 Mbit / s
• Converter input interface
  10Base-T, 100Base-TX
• Converter output surface
  100Base-FX
• Network standard
  IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Ethernet interface type
  Fast ethernet
• Ethernet LAN data transfer rates
  10.100 Mbit / s
• Support data flow control
  yes
• Auto MDI / MDI-X
  yes
• Auto-negotiation function
  yes
• Store-and-forward
  yes
• Duplex system
  Full, half
• Link Loss Carry Forward (LLCF) supported
  yes
• Link Loss Return (LLR) supported
  yes
• DC connection
  yes
• Transmission technology
  Wired
• Number of Ethernet LAN ports (RJ-45)
  1
• Optical cable connector
  SC
• Number of Power over Ethernet (PoE) connections
  1
• Maximum possible transmission distance
  2000 m
• wavelength
  1310 nm
• Cable fashion structure
  Multi mode
• Supported fiber cable diameters (core / cladding)
  50 / 125,62.5 / 125 ΅m
• Certification
  FCC, CE
• Built-in
  no
• Product color
  black
• LED indicators
  Activity, link
• Country of origin
  China
• Sustainability certificates
  RoHS
• AC power adapter
  yes
• Quick installation guide
  yes
• Packaging width
  235 mm
• Packaging depth
  125 mm
• Packing height
  55 mm
• Package weight
  494 g
• Packaging type
  box
• Operating temperature range
  40-75 ° C
• Storage temperature range
  -10 - 55 ° C
• Humidity in operation
  5 - 90%
• width
  94 mm
• depth
  70 mm
• height
  25 mm
• Weight
  420 g
