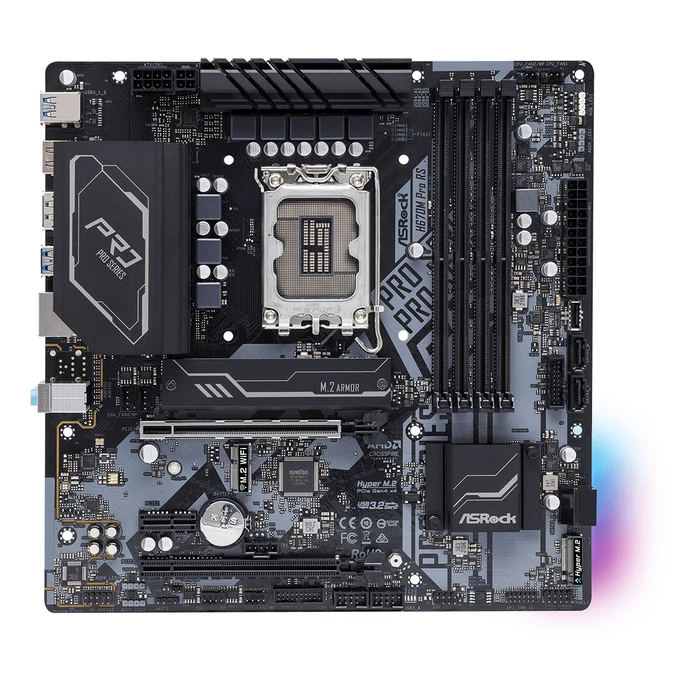

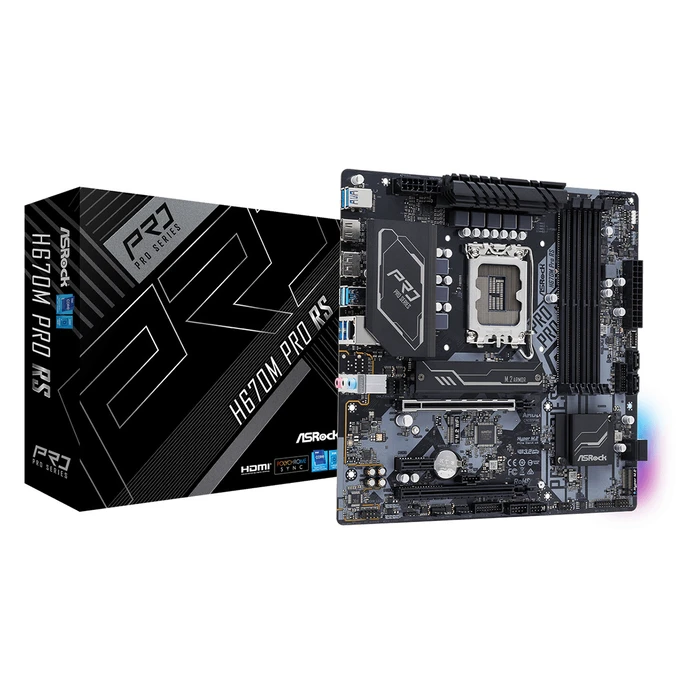

Motherboard AsRock H670M Pro RS - micro ATX - LGA1700-Sockel - H670

Τεχνικά Χαρακτηριστικά

• Installed number
  0
• Max number supported
  1
• form factor
  Micro ATX
• chipset
  Intel H670
• Supported RAM technology
  DDR4 SDRAM
• Supported RAM integrity check
  Non-ECC, ECC (operation in non-ECC mode)
• Supported RAM speed
  4800MHz (OC)
• processor socket
  LGA1700 socket
• power connections
  ATX12V connector 4-pin, main power connector 24-pin, ATX12V connector 8-pin
• Supported RAM memory (registered or buffered)
  Unbuffered
• RAM slots
  4 DIMM slots
• Internal interfaces
  1 x audio header, 4 x USB 2.0 header, 1 x Thunderbolt header, 1 x USB-C Gen 1 header, 4 x USB 3.2 Gen 1 header
• Max supported size
  128GB
• performance characteristics
  Intel Extreme Memory Profiles (XMP) 2.0, Dual-channel memory architecture, Supported ECC modules running in ECC mode
• Type
  Graphics adapter (CPU required)
• Type
  sound card
• compatibility
  High definition audio
• audio codec
  Realtek ALC897
• Audio
  High Definition Audio (8-channel)
• Data Link Protocol
  Ethernet, Fast Ethernet, Gigabit Ethernet
• network controller
  Intel I219V
• network
  gigabit ethernet
• expansion slots
  1 x CPU, 4 x DIMM 288-pin, 1 x PCIe 3.0 x1, 1 x PCIe 3.0 x16 (x4 mode), 1 x M.2 socket (Key E), 1 x PCIe 4.0 x16
• storage interfaces
  PCIe 4.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 / PCIe 4.0 connectors: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, SATA-600 connectors: 4 x 7-pin Serial ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5
• Storage
  Hyper M.2 socket, Serial ATA-600 (RAID)
• FireWire
  USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C Gen 1
• mass storage interfaces
  4x SATA-600 (RAID), 2x Hyper M.2
• USB/FireWire port configuration (active)
  2x USB 3.2 Gen 2 + 4x USB 3.2 Gen 1
• USB/FireWire port configuration (headers)
  1x USB-C Gen 1 + 4x USB 3.2 Gen 1 + 4x USB 2.0
• software incl.
  ASRock Polychrome SYNC, ASRock A-Tuning, Antivirus (trial version), Drivers & Utilities, ASRock XFast LAN
• broad
  24.4 cm
• depth
  24.4 cm
