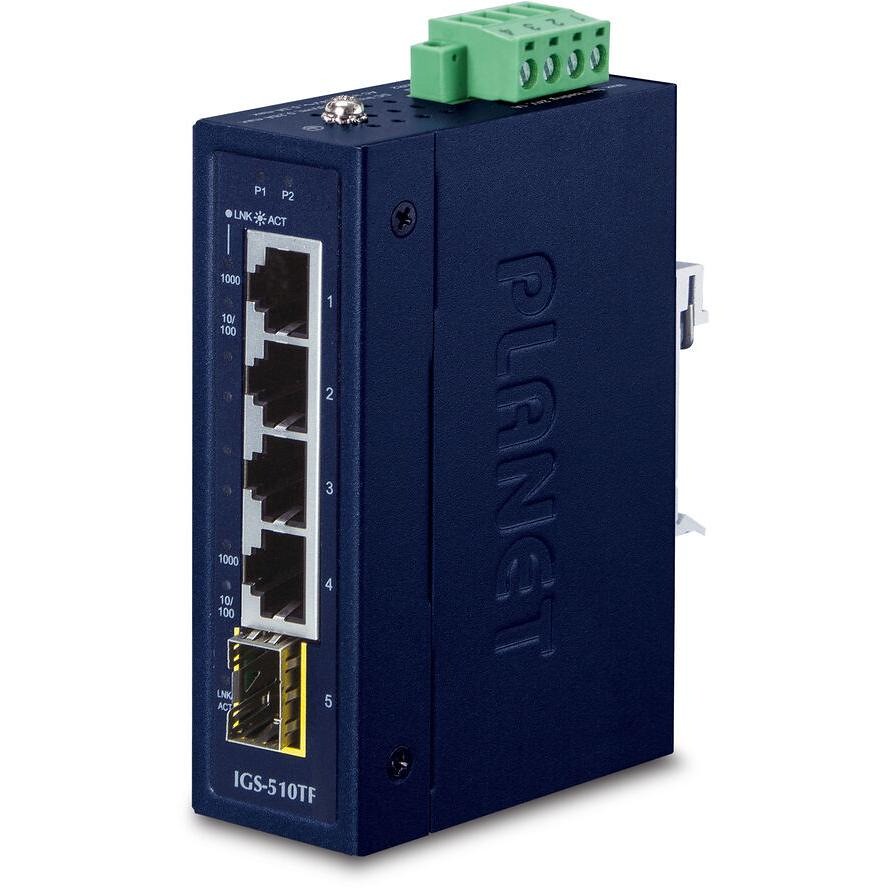

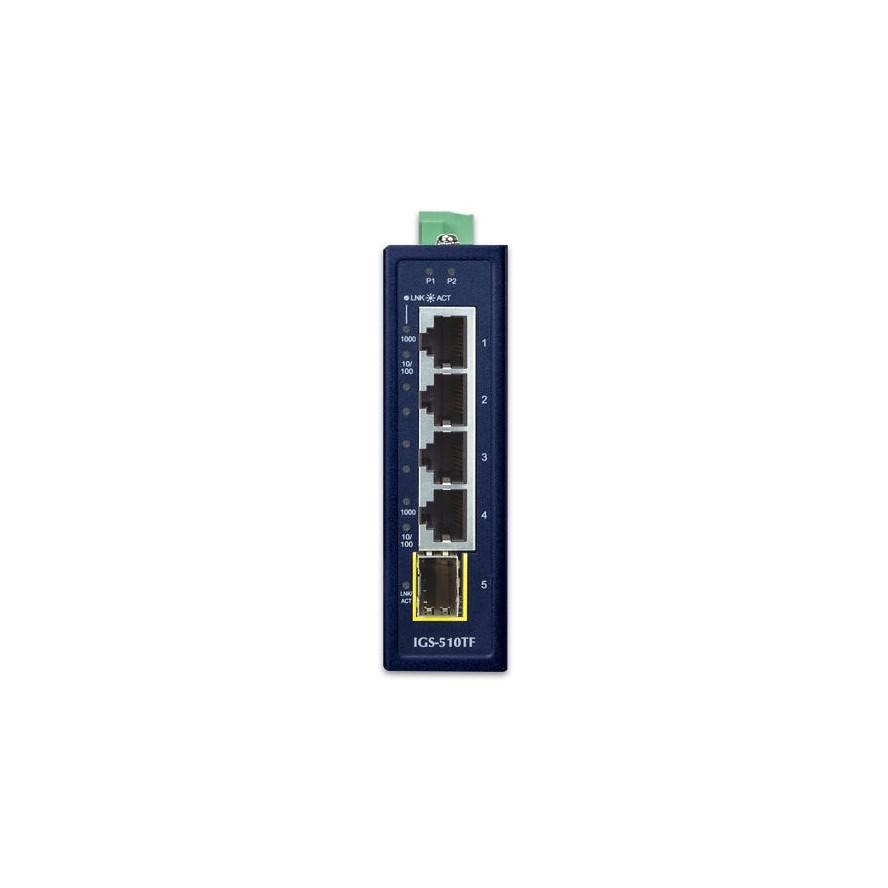

Network Switch Planet Industrial 4-Port GE + Port 100/1000X SFP

Τεχνικά Χαρακτηριστικά

• switch type
  unmanaged
• Number of basic switching RJ-45 Ethernet ports
  4
• Basic Switching RJ-45 Ethernet Ports Type
  Gigabit Ethernet (10/100/1000)
• Number of installed SFP modules
  1
• Number of fiber connectors
  1
• Optical cable connector
  SFP
• Power over Ethernet (PoE)
  No
• MAC address table
  4000 entries
• Routing/Switching Capacity
  10 Gbps
• passage
  7.4Mpps
• Store and Forward
  Yes
• Jumbo frames support
  Yes
• jumbo frames
  9000
• mesh standard
  IEEE 802.1p,IEEE 802.3,IEEE 802.3ad,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
• 10G support
  No
• supported cable types
  Cat3,Cat4,Cat5,Cat5e,Cat6
• full duplex
  Yes
• half duplex
  Yes
• Support data flow control
  Yes
• Auto MDI/MDI-X
  Yes
• Ethernet LAN data transfer rates
  10,100,1000Mbps
• Auto negotiation function
  Yes
• DC input voltage
  9 - 48V
• input current
  24A
• Power consumption (max.)
  2.8W
• product color
  Blue
• housing material
  metal
• LED indicators
  Performance
• International degree of protection (IP code)
  IP30
• wall mounting
  Yes
• DIN rail mounting
  Yes
• certification
  FCC Part 15 Class A, CE
• transmission technology
  wired
• input voltage
  9 - 48V
• Ethernet interfaces type
  gigabit ethernet
• Number of Ethernet LAN ports (RJ-45)
  4
• operating temperature range
  -40 - 75?
• Storage temperature range
  -40 - 75?
• Operating relative humidity
  5 - 90%
• humidity during storage
  5 - 90%
• heat dissipation
  9.5 BTU/hr
• Width
  30mm
• depth
  70mm
• Height
  104mm
• Weight
  252g
• Maximum data transfer rate
  1000Mbps
