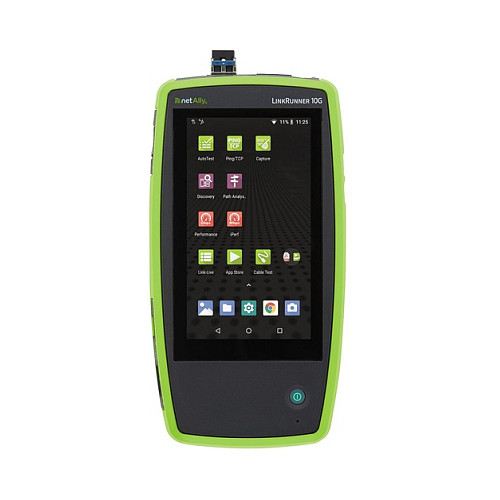

NetAlly LinkRunner 10G Έξυπνος Δοκιμαστής Δικτύου (LR10G-200)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  NetAlly
• Model / MPN
  LR10G-200
• SKU
  460753
• EAN / UPC
  0841969101205 / 841969101205
• Product Type
  Portable advanced Ethernet tester (copper & fiber)
• Supported Speeds
  10/100/1000 Mbps, 2.5G, 5G, 10G (copper via RJ-45 and SFP+ for fiber)
• Media Supported
  Copper (RJ-45), Fiber (SFP+ transceivers)
• Physical layer tests
  TDR cable testing, toning, wire mapping, pair length, opens, shorts, splits, crossed/straight-through detection, WireView ID
• LANBERT Media Qualification
  Yes (media qualification testing for higher speeds)
• PoE Testing
  Supports PoE up to 90W (802.3bt), loaded/TruePower PoE test
• AutoTest
  Automated tests across OSI layers 1–7; over 45 discrete test results/measurements
• Ports
  Main test RJ-45 port, Management RJ-45 port, USB-A, USB-C OTG, microSD slot
• SFP+ Support
  Yes (standards-compliant SFP+ transceivers for fiber testing)
• Memory
  Approximately 8 GB available memory for results/apps; microSD expandable
• Display
  5.0-inch capacitive color LCD, 720 x 1280 pixels
• Dimensions (device)
  4.05 in x 7.67 in x 2.16 in (10.29 cm x 19.48 cm x 5.49 cm)
• Weight (device)
  1.677 lb / 0.76 kg (760 g)
• Battery
  Rechargeable lithium-ion 7.2 V, 6.4 Ah, 46 Wh
• Battery Life
  Typical 3–4 hours
• Charging
  USB-C 45 W adapter (compatible with higher power USB-C chargers / power banks)
• Storage & Reporting
  Link-Live cloud service integration, AllyCare support, advanced reporting and test result upload
• Ruggedness
  Portable, ruggedized enclosure suitable for field use
• Included Accessories
  Power adapter, SFP+ optical transceiver module, RJ-45 inline coupler, WIREVIEW wire mapper, quick start guide, shoulder sling bag, 1-year AllyCare support (package contents vary by reseller)
• Standards Compliance
  IEEE 802.3/ab/ae/an/bz/i/u/z and PoE standards 802.3af/at/bt, CSA, FCC, IEC 61326-1 (as listed by reseller)
• Use Cases
  Installation validation, field troubleshooting, 10G performance testing, PoE verification, cable certification preparation
• Packaging Notes
  Includes mainframe and common accessories; packaging dimensions and weight approximate for boxed kit
