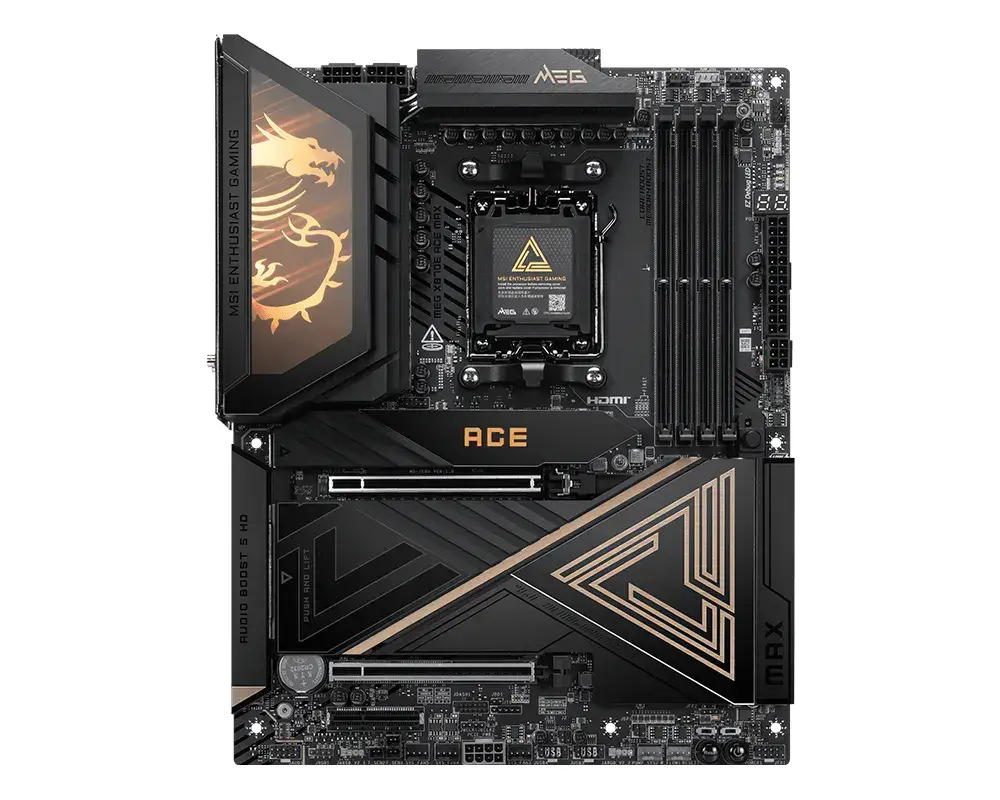

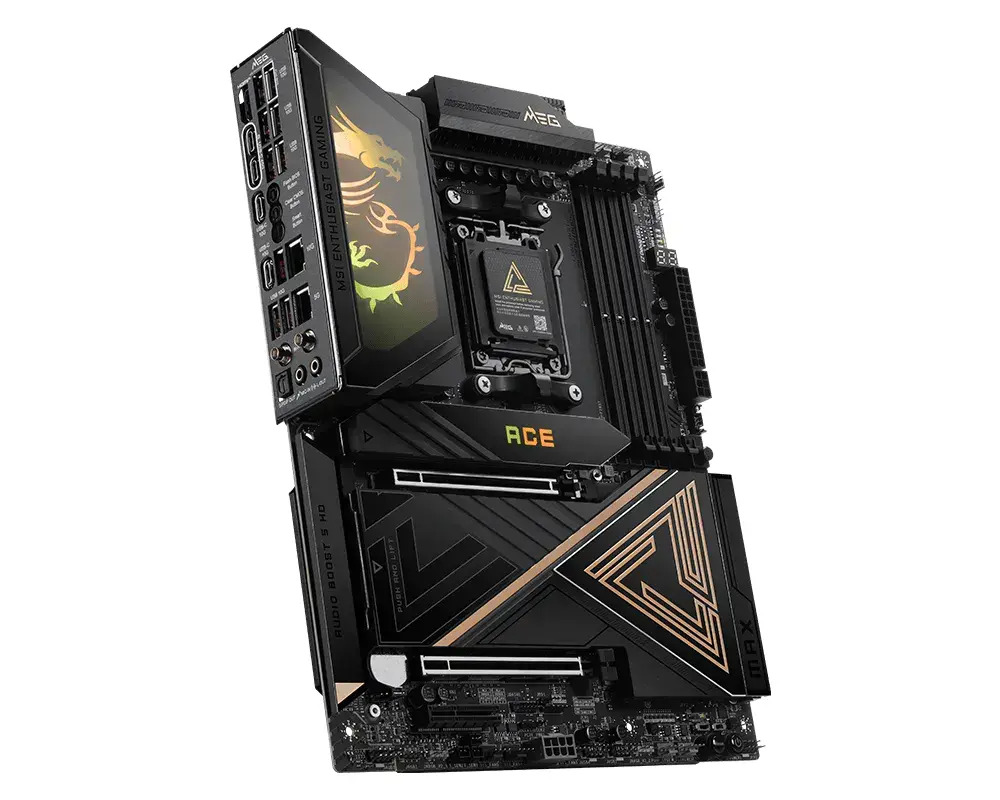

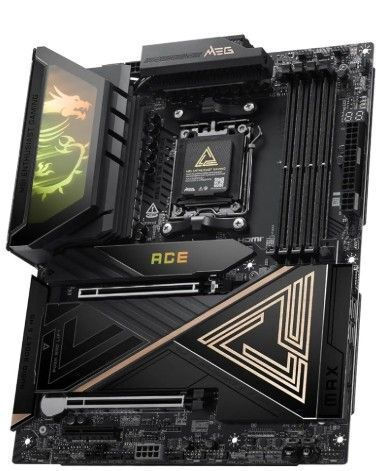

MSI MEG X870E ACE MAX (AM5) Ε-ATX μητρική πλακέτα

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  MSI
• Model
  MEG X870E ACE MAX
• Socket
  AM5
• CPU Family Supported
  AMD Ryzen 9000 (Zen 5)
• Chipset
  AMD X870E
• Form Factor
  E-ATX (Extended ATX)
• Memory Type
  DDR5
• Memory Slots
  4 DIMM
• Max Memory Speed
  9000+ MT/s (OC) — also supports 4800, 5600, 9066OC
• Memory Channels
  Dual Channel
• PCIe Slots
  PCIe 5.0 x16 (2 slots) with Steel Armor II
• M.2 Slots
  5 (2x PCIe 5.0, 3x PCIe 4.0)
• SATA Ports
  4 x SATA III 6Gb/s
• Onboard LAN
  10G LAN + 5G LAN (dual LAN overall)
• Wireless
  Wi‑Fi 7 (320MHz, 4K-QAM)
• Bluetooth
  Integrated (Wi‑Fi module)

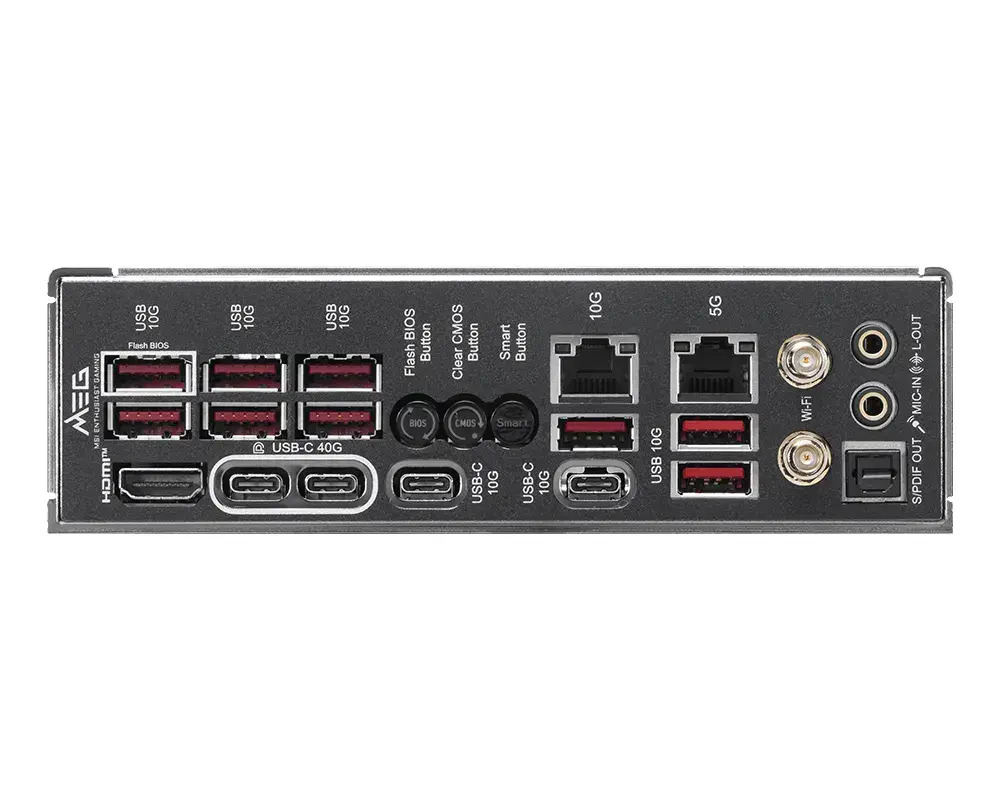

• USB Ports (rear)
  9 x USB Type-A (USB 3.2) and 4 x USB Type-C (USB 3.2)
• USB4
  Yes, USB4 40Gbps support
• USB-C PD
  Yes, USB Type-C port supports PD 60W (Super Charger+)
• Audio Codec
  ALC4082 with ESS Audio DAC (Audio Boost 5 HD)
• Audio Channels
  7.1
• Optical S/PDIF
  Yes
• VRM Design
  18+2+1 Duet Rail Power System
• Power Stages
  110A Smart Power Stages (SPS)
• CPU Power Connector
  8-pin (plus additional as implemented)
• Thermal Solution
  Advanced Frozr Design: Wavy Fin, Direct Touch Cross Heat-pipe, thermal pads 9 W/mK
• M.2 Cooling
  Double-Sided M.2 Shield Frozr, EZ Magnetic M.2 Shield Frozr II
• PCB
  8-layer server-grade PCB with 2oz copper
• Protection
  Transient Voltage Suppressors (TVS), Overcurrent Protection (OCP)
• BIOS Features
  Dual BIOS, BIOS Flashback, Clear CMOS
• EZ / DIY Features
  EZ PCIe Release, EZ M.2 Clip II, EZ Antenna, EZ Conn-Design (JAF_2), Smart Button, EZ Debug LED
• Special Slots/Features
  Lightning Gen 5 M.2 native bandwidth 128GB/s, lane bifurcation support
• Audio Enhancements
  Dedicated audio PCB isolation and premium components
• Form/Accessories
  Backplate included (metal), thermal backplate for improved dissipation
• Intended Use
  Extreme gaming, AI workloads, high-end desktop and overclocking
