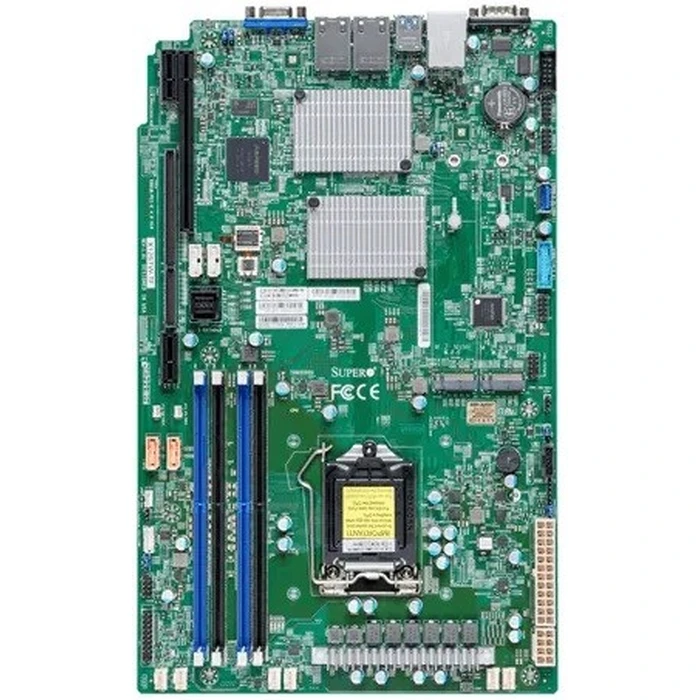

Motherboard Supermicro X12STW-TF Intel Xeon E-2300 C256 LGA-1200 (Socket H5) WIO (MBD-X12STW-TF-O)

Τεχνικά Χαρακτηριστικά

• Sustainability certificates
  RoHS
• Processor threads
  16
• Processor manufacturer
  Intel
• Processor number of cores supported
  8
• Intel Xeon series
  E-2300
• Processor thermal power (max)
  95 W
• Lithography
  14 nm
• Processor socket
  LGA 1200 (Socket H5)
• On-board graphics card model
  Aspeed AST2600 BMC
• Motherboard form factor
  WIO
• Component for
  Server
• Motherboard chipset
  Intel C256
• Maximum internal memory
  128 GB
• Supported memory clock speeds
  2933
• ECC
  Yes
• Supported memory types
  DDR4-SDRAM
• Memory voltage
  1.2 V
• Operating temperature (T-T)
  0 - 50 °C
• Storage temperature (T-T)
  -40 - 70 °C
• Storage relative humidity (H-H)
  5 - 95%
• Recommended humidity operating range
  8 - 90%
• Width
  203.2 mm
• Depth
  330.2 mm
• Wi-Fi
  No
• Ethernet LAN
  Yes
• Ethernet interface type
  Fast Ethernet
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  1
• TPM connector
  Yes
• Number of SATA III connectors
  8
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  2
• USB 2.0 connectors
  4
• Disk on Module (DOM) power connector
  Y
• COM ports quantity
  1
• BIOS memory size
  256 Mbit
• BIOS type
  UEFI
• ACPI version
  6.0
• System Management BIOS (SMBIOS) version
  3.3
• UEFI version
  2.7
• Real Time Clock (RTC)
  Y
• RAID levels
  1
• RAID support
  Yes
• Supported storage drive interfaces
  SATA III
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  2
• Ethernet LAN (RJ-45) ports
  2
• USB 2.0 ports quantity
  2
• COM ports quantity
  1
• VGA (D-Sub) ports quantity
  1
• Trusted Platform Module (TPM)
  Yes
• Trusted Platform Module (TPM) version
  2.0
• Number of DIMM slots
  4
• Number of processors supported
  1
• Supported DIMM module capacities
  32GB
• PCI Express x4 (Gen 3.x) slots
  2
• PCI Express x16 (Gen 4.x) slots
  1
• M.2 card slot (storage)
  2280/22110 (M-key)
• Maximum UDIMM memory
  128 GB
• PCI Express x4 (Gen 4.x) slots
  1
