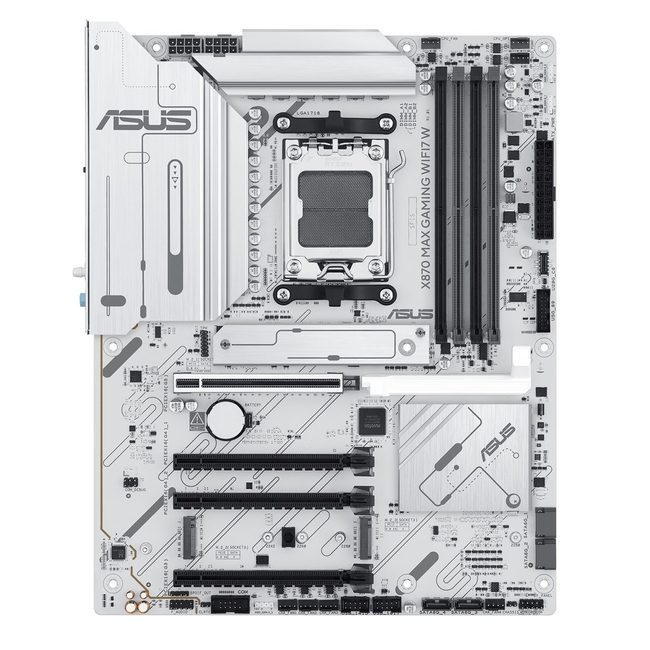

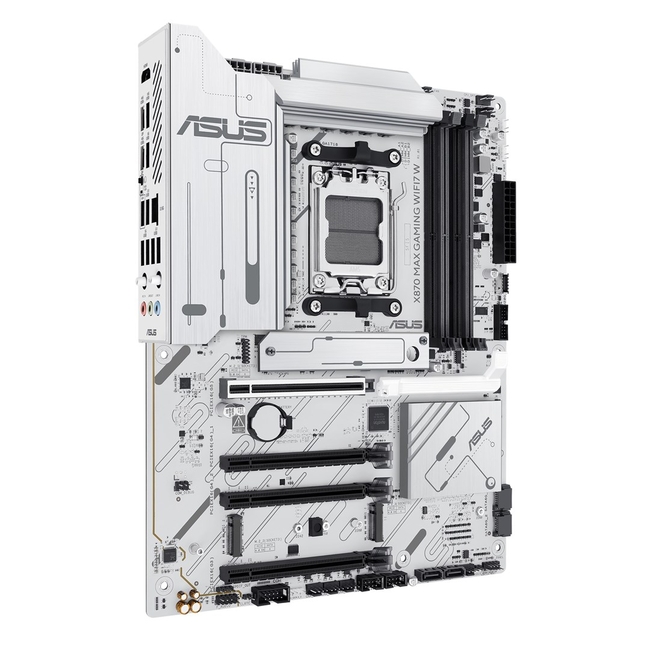

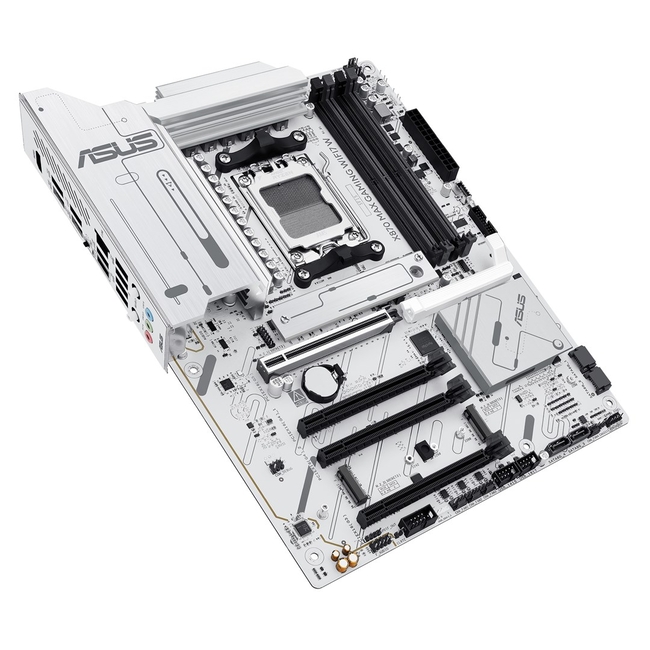

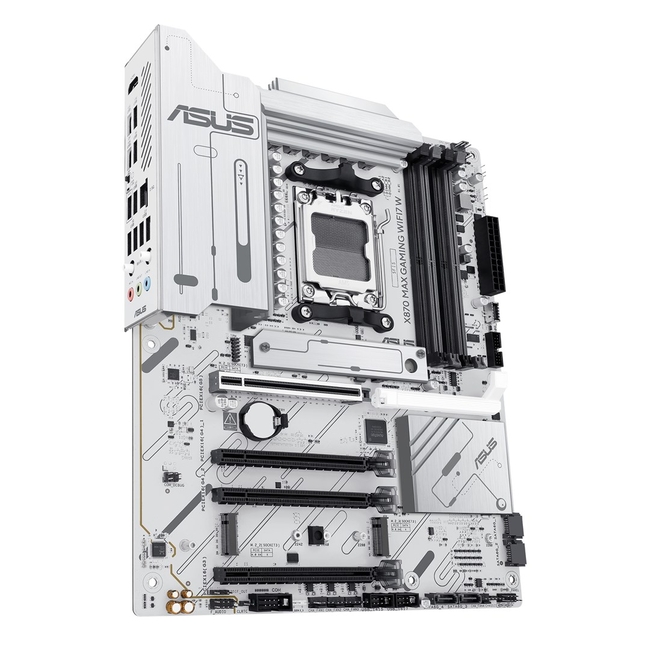

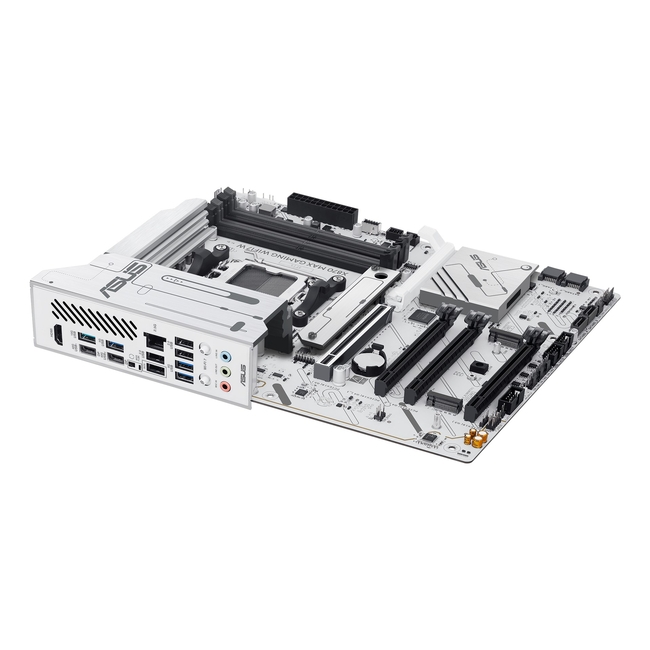

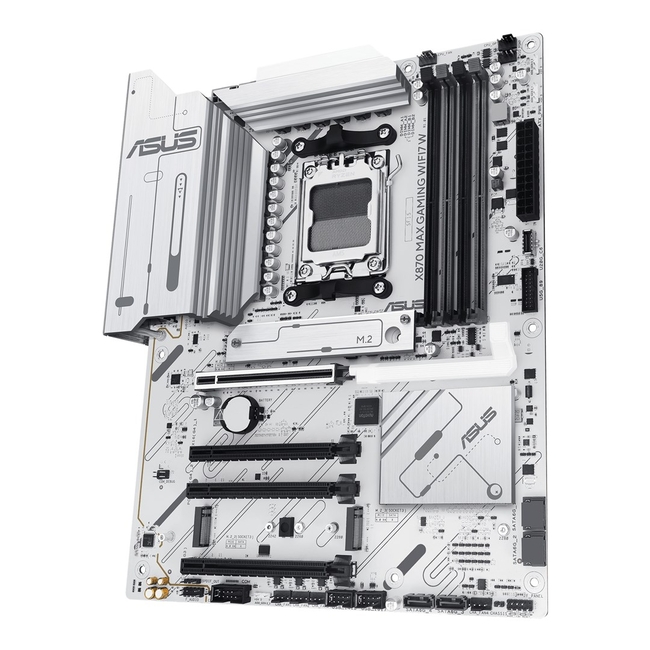

Motherboard Asus X870 MAX Gaming WIFI7W AMD X870 Socket AM5 ATX

Τεχνικά Χαρακτηριστικά

• Compatible processor series
  AMD Ryzen 9000 Series
• Processor socket
  Socket AM5
• Supported processor sockets
  Socket AM5
• Processor manufacturer
  AMD
• Parallel processing technology support
  Not supported
• Maximum resolution
  3840 x 2160 pixels
• Motherboard chipset
  AMD X870
• Audio output channels
  7.1 channels
• Windows operating systems supported
  Windows 11
• Motherboard form factor
  ATX
• Motherboard chipset family
  AMD
• Product colour
  White
• Maximum internal memory
  256 GB
• Unbuffered memory
  Yes
• Memory slots type
  DIMM
• Supported memory types
  DDR5-SDRAM
• ECC ?ompatibility
  ECC & Non-ECC
• Number of memory slots
  4
• Memory channels
  Dual-channel
• Supported memory clock speed (max)
  8000 MHz
• Depth
  244 mm
• Width
  305 mm
• Wake-on-LAN ready
  Yes
• Bluetooth
  Yes
• Ethernet LAN
  Yes
• Wi-Fi
  Yes
• Bluetooth version
  5.4
• Ethernet interface type
  2.5 Gigabit Ethernet
• Top Wi-Fi standard
  Wi-Fi 7 (802.11be)
• S/PDIF out connector
  Yes
• Number of EPS power connectors (8-pin)
  2
• Number of RGB LED pin headers
  3
• Number of COM connectors
  1
• RGB LED pin header
  Yes
• USB 3.2 Gen 1 (3.1 Gen 1) connectors
  1
• Number of SATA III connectors
  4
• Number of CPU fan connectors
  2
• USB 2.0 connectors
  2
• USB 3.2 Gen 2x2 connectors
  1
• 12V power connector
  Yes
• Front panel audio connector
  Yes
• TPM connector
  Yes
• Chassis intrusion connector
  Yes
• CPU fan connector
  Yes
• EPS power connector (8-pin)
  Yes
• Number of chassis fan connectors
  4
• ATX Power connector (24-pin)
  Yes
• Number of water pump connectors
  1
• BIOS type
  UEFI AMI
• Clear CMOS jumper
  Yes
• Antenna included
  Yes
• Cables included
  SATA
• Screws included
  Yes
• RAID levels
  5
• Supported storage drive types
  HDD & SSD
• Number of storage drives supported
  7
• RAID support
  Yes
• Supported storage drive interfaces
  PCI Express 4.0, PCI Express 5.0, SATA III
• HDMI version
  2.1
• Microphone in
  Yes
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
  1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
  3
• Ethernet LAN (RJ-45) ports
  1
• Headphone outputs
  3
• WiFi-AP antenna jack
  2
• USB 2.0 ports quantity
  4
• USB connector type
  USB Type-C
• HDMI ports quantity
  1
• USB4 Gen 3x2 ports quantity
  2
• PCI Express x16 (Gen 4.x) slots
  2
• PCI Express x16 (Gen 3.x) slots
  1
• PCI Express x16 (Gen 5.x) slots
  1
• Number of M.2 (M) slots
  3
