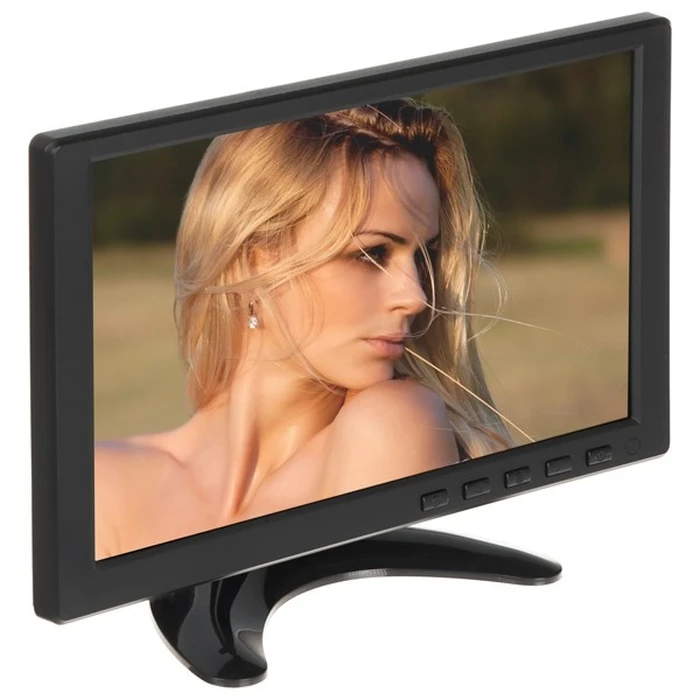

Οθόνη VGA, HDMI, AUDIO TFT-10/CCTV 10"

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  Monitor VGA, HDMI, AUDIO TFT-10/CCTV 10"
• SKU
  WLONONWCROPHU
• MPN
  TFT-10/CCTV
• EAN / Barcode
  5902887025983
• Brand
  Generic / not specified
• Screen Size
  10.0–10.1 inches
• Panel Type
  TFT LCD (some listings reference IPS variant)
• Typical Resolution
  800 x 600 px (some 10.1" variants list 1280 x 800)
• Aspect Ratio
  Typically 4:3 or 16:10 depending on panel variant
• Backlight
  LED
• Brightness
  ~400 cd/m² (listed on some vendor specs)
• Contrast Ratio
  ~400:1 to 600:1 (varies by vendor)
• Viewing Angle
  ~160° (typical listing)
• Response Time
  ~10–12 ms (typical listing)
• Video Inputs
  HDMI, VGA, Composite/Video (RCA), BNC (on some builds)
• Audio
  Built-in speakers; audio input jack
• Additional Inputs/Outputs
  Some variants: 2x Video inputs, USB (power/data on some models)
• Control
  OSD menu, IR remote control included
• Power Input
  12V DC (typical), adapter included (100–240V AC input on adapter)
• Power Consumption
  Low (typical for 10" TFT monitors)
• Mounting
  Desktop stand/bracket included; some variants support VESA 75
• Operating Temperature
  ~ -10°C to +40/50°C depending on variant
• Dimensions (monitor)
  Approx. 24.5 x 16.5 x 2.5 cm (outer dimensions, typical)
• Package Contents (typical)
  10" monitor, 12V DC adapter, remote control, stand/bracket, HDMI cable, BNC cable, user manual
• Use Cases
  CCTV surveillance monitoring, DVR/NVR preview monitor, HDMI device/PC display, Raspberry Pi projects
• Weight (product)
  ~700 g (typical)
• Certifications & Safety
  CE/ROHS may be present depending on vendor
