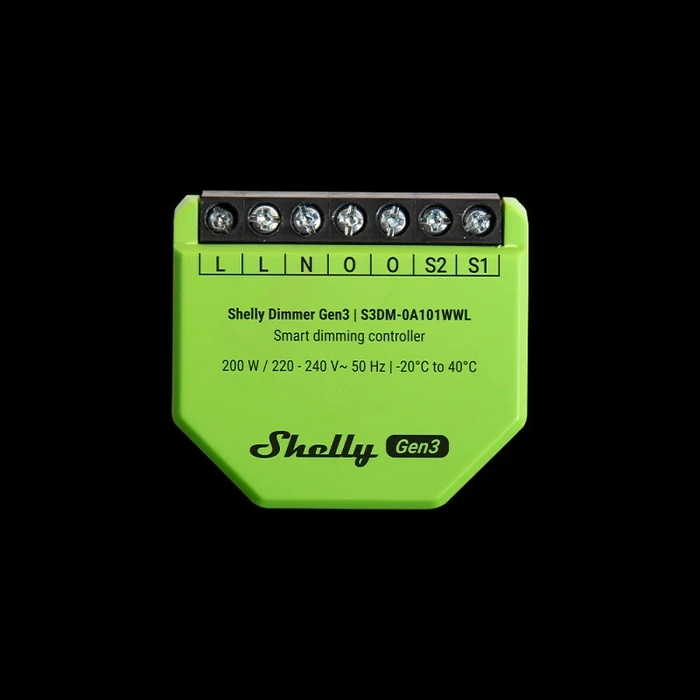

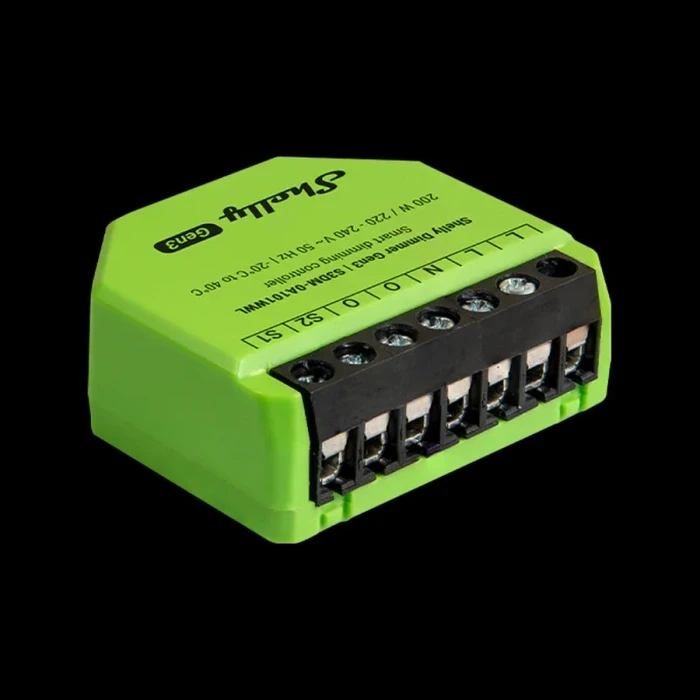

Μετρητής Ισχύος Shelly Relais Dimmer Gen3 LED Measuring flush-mounted

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Manufacturer
  Shelly
• Model
  Shelly_Dimmer_Gen3
• Dimensions
  38 x 42.5 x 16.5 mm
• Weight
  51 g
• Operating Temperature
  -20 to 40 °C
• Humidity
  30% to 70% RH
• Maximum Altitude
  2000 m
• Power Supply
  220-240 V~ 50 Hz
• Power Consumption
  < 1.5 W
• Neutral Wire Required
  No
• Minimum Load without Neutral Wire and Bypass
  20 W
• Dimming Type
  Trailing Edge
• Short-circuit Protection
  Yes
• Maximum Output Power
  200 W
• Voltmeter Range (AC)
  180 V - 240 V
• Voltmeter Accuracy
  ±5%
• Ampermeter Range (AC)
  0 A - 3 A
• Ampermeter Accuracy
  ±5%
• Internal Temperature Sensor
  Yes
• WiFi Protocol
  802.11 b/g/n
• WiFi Frequency Band
  2412 - 2472 MHz
• Maximum WiFi Transmit Power
  < 20 dBm
• WiFi Range
  Up to 30 m (indoor) and 50 m (outdoor)
• Bluetooth Protocol
  4.2
• Bluetooth Frequency Band
  2402 - 2480 MHz
• Maximum Bluetooth Transmit Power
  < 4 dBm
• Bluetooth Range
  Up to 10 m (indoor) and 30 m (outdoor)
• Processor
  ESP32 C3, STM32 G051
• Clock Frequency
  40 MHz
• Flash Memory
  8 MB
• Schedules
  Up to 20 adjustable schedules
• Webhooks (URL actions)
  20 with 5 URLs per hook
• Scripting
  Yes
• MQTT Support
  Yes
• Advanced Schedules
  Yes
• KVS (Key-Value Storage)
  Yes
