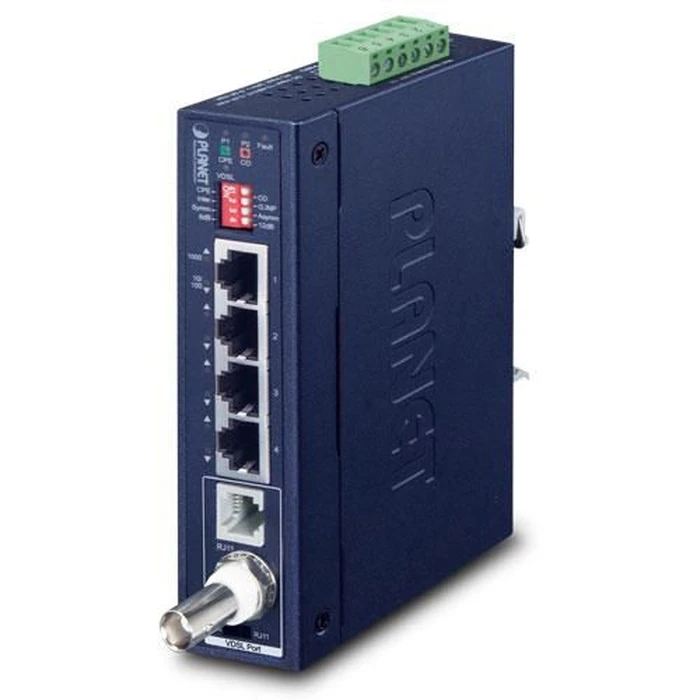

PLANET Μετατροπέας Industrial Gigabit Ethernet Extender IVC-234GT IP30

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  PLANET
• Model
  IVC-234GT
• SKU
  IVC-234GT
• MPN
  IVC-234GT
• EAN
  4711605283717
• Product Type
  Industrial Gigabit Ethernet Extender
• Ethernet Ports
  4 x 10/100/1000BASE-T RJ45
• Coaxial Interface
  1 x BNC female connector
• Telephone Line Interface
  1 x RJ11 female phone jack
• Technology
  Gigabit Ethernet and VDSL2
• Vectoring Support
  ITU-T G.993.5 G.Vectoring
• VDSL Standards
  ITU-T G.993.1, ITU-T G.993.2
• Additional Standards
  IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1p, ITU-T G.998, ADSL2/2+ capable
• Transmission Mode
  Asymmetric or Symmetric
• Maximum Data Rate
  Up to 300Mbps duplex
• Asymmetric Speed
  Downstream up to 200Mbps, upstream up to 100Mbps
• Symmetric Speed
  150Mbps both directions
• Distance
  Up to 1.4km via VDSL2
• Coaxial Cable Support
  75 ohm RG-6/U cable, less than 12Ω/1000 ft
• UTP Distance
  Up to 100 meters
• Switching Method
  Store-and-Forward
• Address Table
  2K entries
• Flow Control
  Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
• Jumbo Frame
  9K bytes
• Power Input
  Dual 12~48V DC
• Maximum Current
  0.4A at 24V
• Housing
  Metal
• Protection Rating
  IP30
• Operating Temperature
  -40°C to 75°C
• Dimensions
  32 x 135 x 87.8 mm
• Weight
  185 g
• LED Indicators
  Power 1, Power 2, FAULT, 1000BASE-T LNK/ACT, 10/100BASE-TX LNK/ACT, VDSL, CO/CPE mode
• Configuration
  4-position DIP switch for CO/CPE mode, target band plan, and SNR margin (8dB or 12dB)
• Application
  Ethernet extension for IP cameras, wireless access points, NVRs, digital signage, and other industrial network devices
