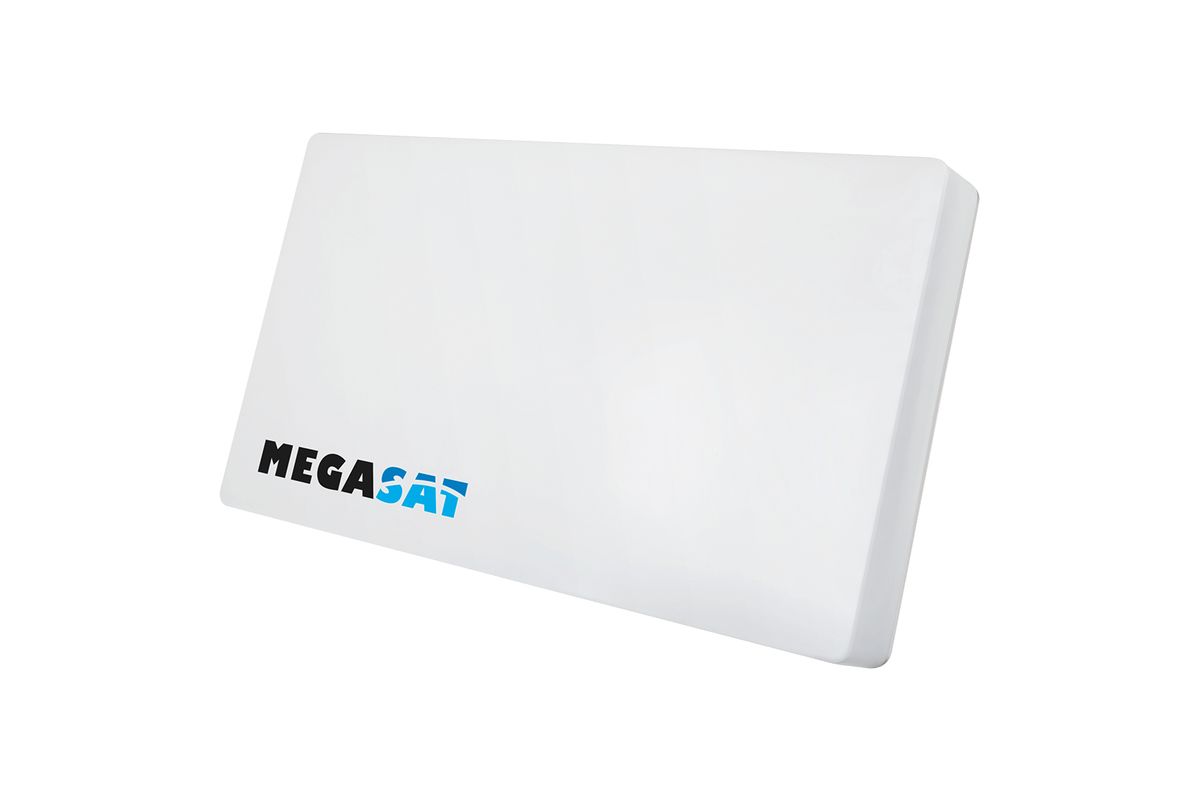

MEGASAT Επίπεδη Κεραία D4 Profi-Line

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Megasat
• Model
  Flachantenne D4 Profi-Line
• MPN
  200212
• SKU
  560037
• EAN / GTIN
  4046173107753
• Product type
  Outdoor flat satellite antenna (flat-panel)
• Antenna type
  Flat antenna (planar reflector)
• Input frequency range
  10.7–12.75 GHz
• Polarization
  Linear (Vertical / Horizontal)
• Antenna gain
  33 dBi (at 12.75 GHz)
• Gain flatness
  5 dB

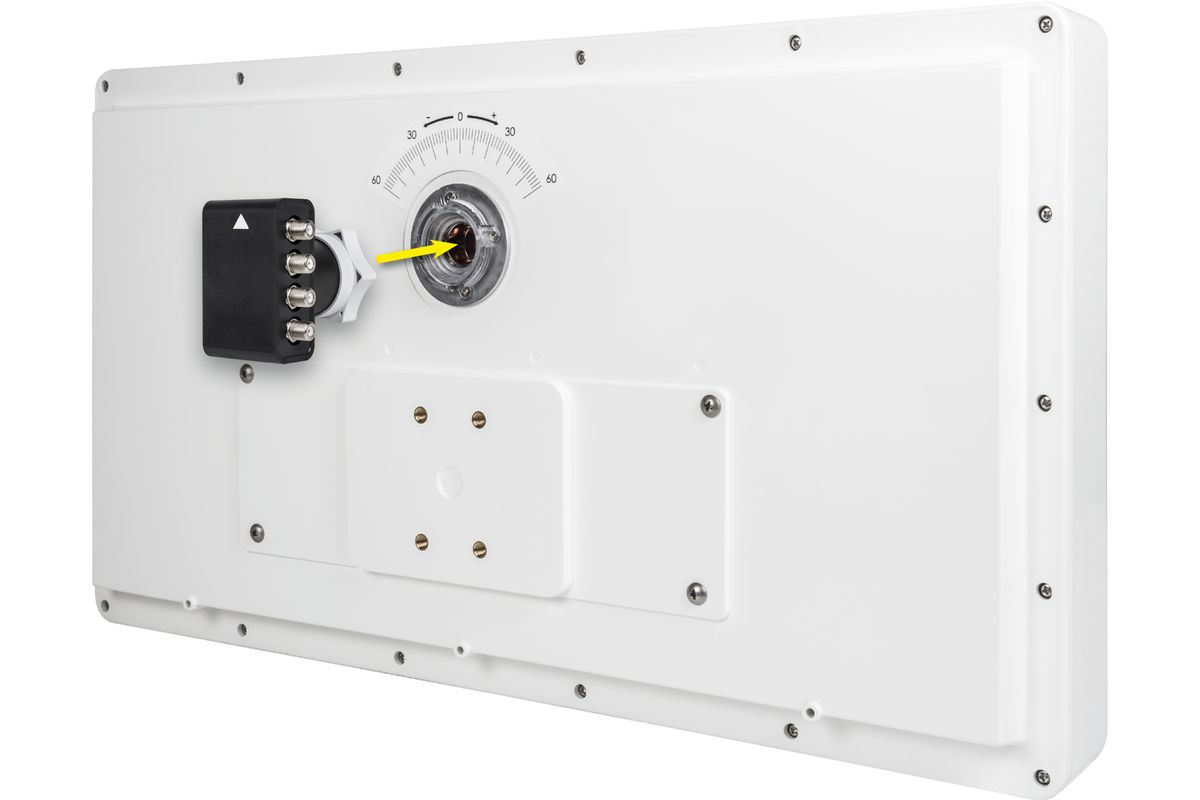

• LNB type
  Integrated Quad LNB
• LNB outputs
  4
• LNB output frequency range
  950–1,950 MHz and 1,100–2,150 MHz (IF ranges stated)
• Local oscillator frequencies
  9.75 GHz and 10.6 GHz
• LNB gain
  min 55 dB – max 66 dB
• Maximum users
  Up to 4 independent receivers
• Supply voltage (V polarity)
  12–14 V (vertical), 16–19 V (horizontal)
• Maximum current consumption
  160 mA
• Dimensions (with LNB)
  525 × 290 × 145 mm (W × H × D)
• Dimensions (without LNB)
  525 × 290 × 68 mm (W × H × D)
• Product weight
  approx 4,500 g (complete product)
• Package weight
  approx 6,000 g
• Color
  White

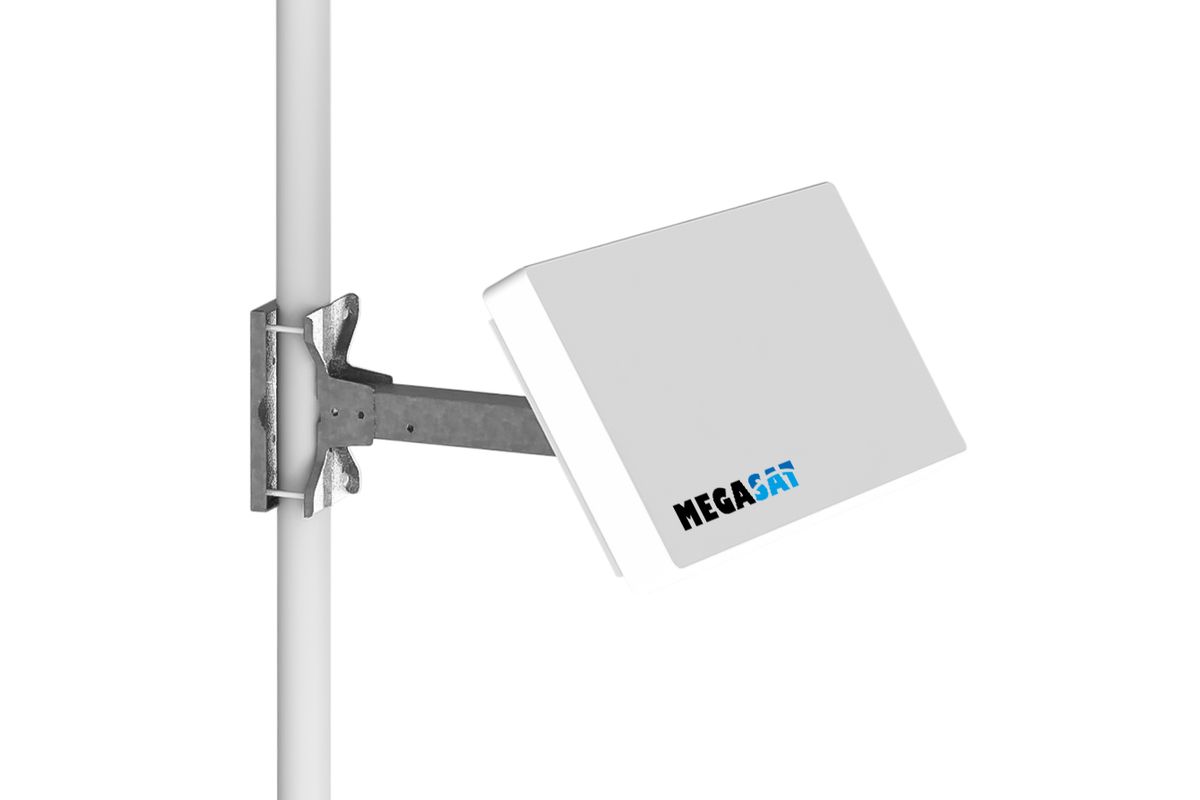

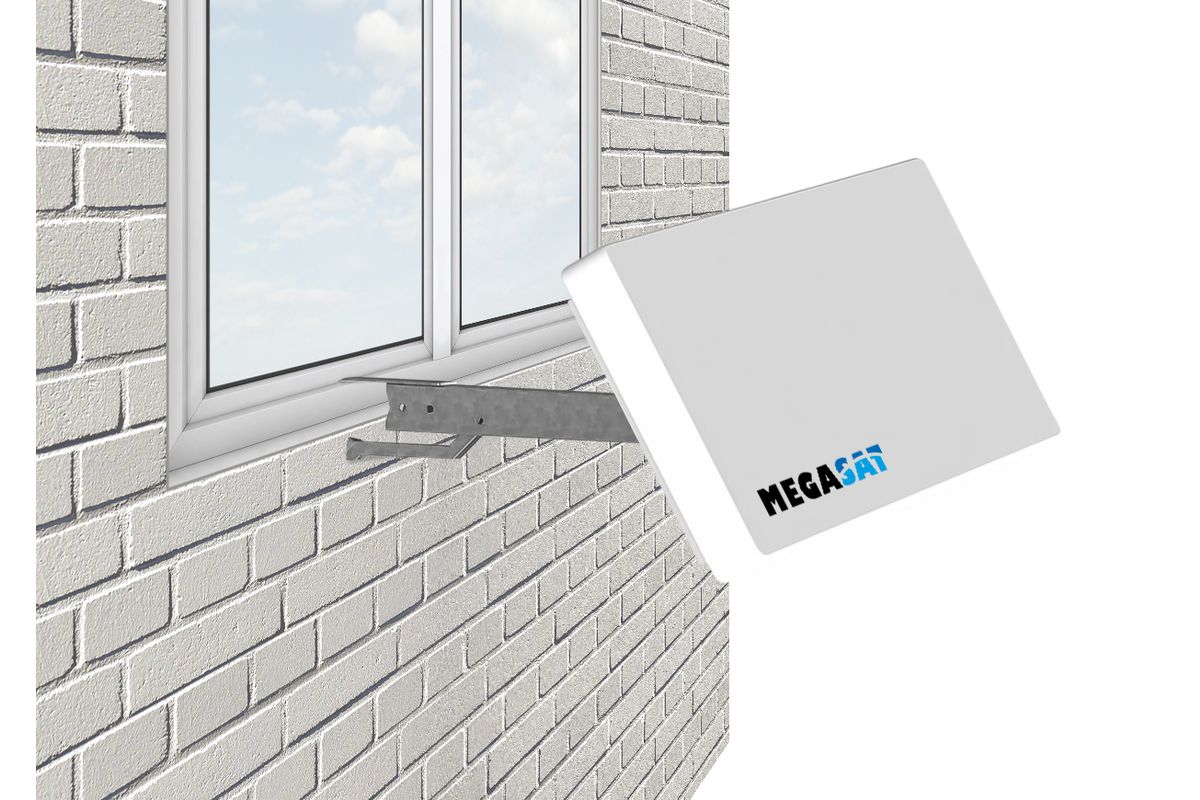

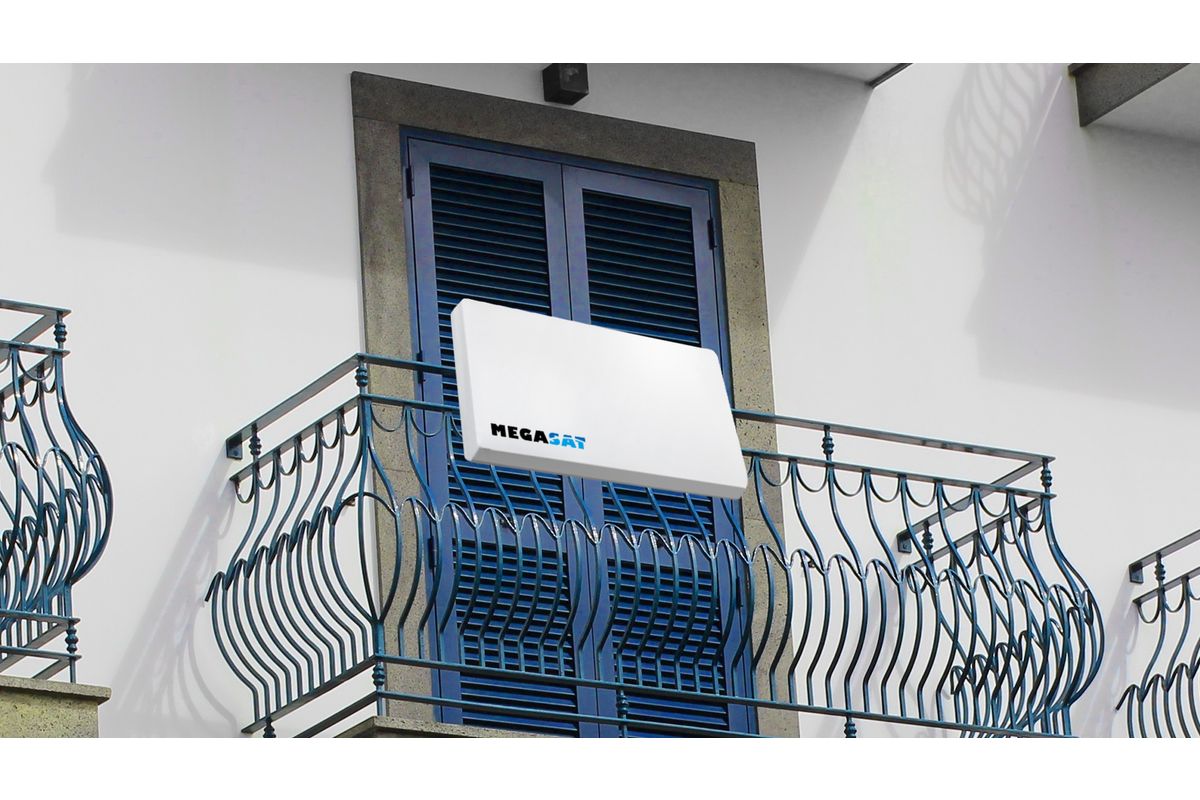

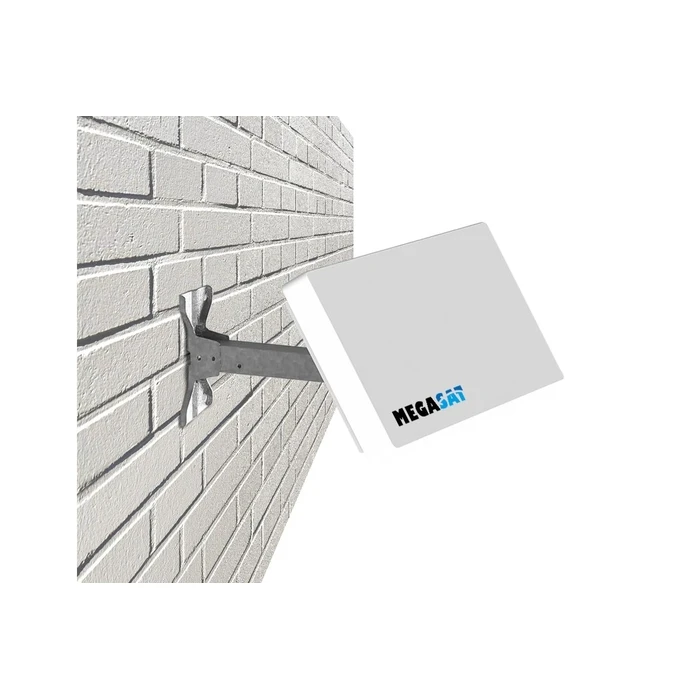

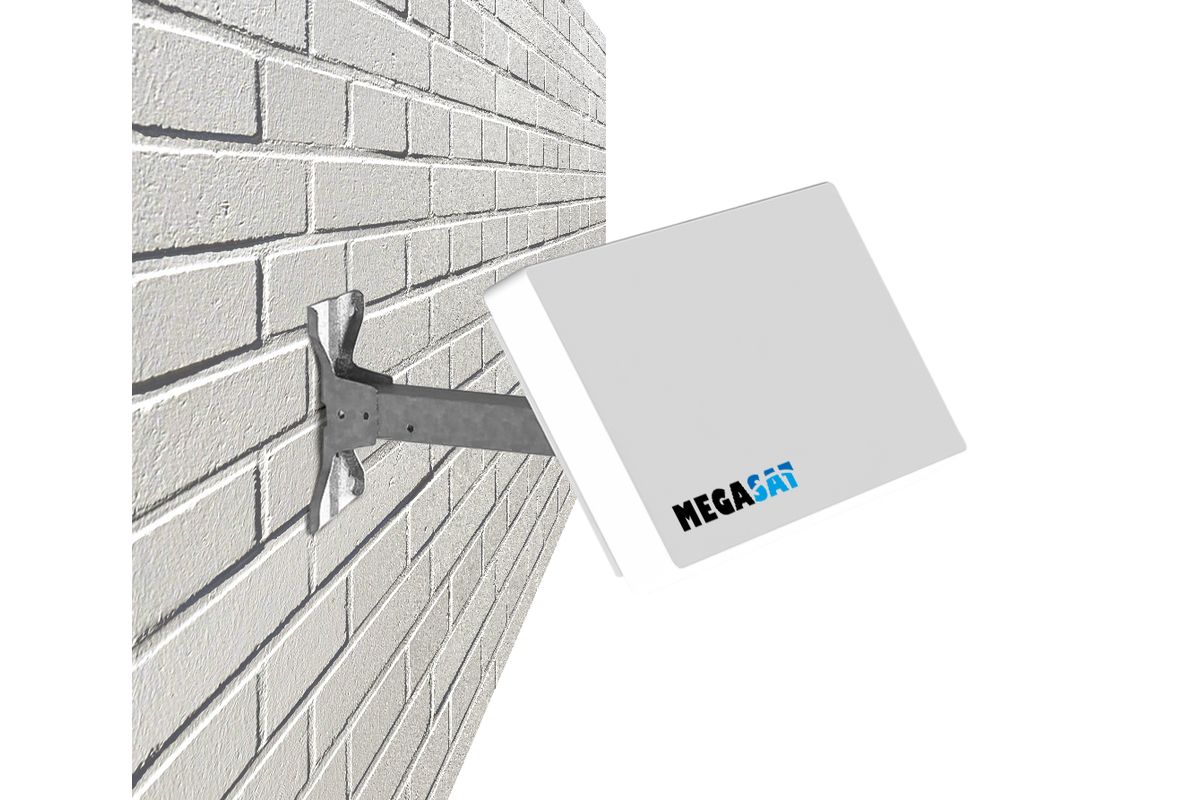

• Mounting
  Wall and balcony mounting options (mounting bracket included)
• Operating temperature range
  −20 °C to +60 °C
• Storage temperature range
  −40 °C to +80 °C
• Compliance
  Declared compliance with EMC Directive 2014/30/EU, Low Voltage Directive 2014/35/EU and Radio Equipment Directive 2014/53/EU
• Material (reflector/housing)
  Not specified by manufacturer
• Package contents
  Flat antenna with integrated Quad LNB, mounting bracket, screws/fasteners, installation manual
