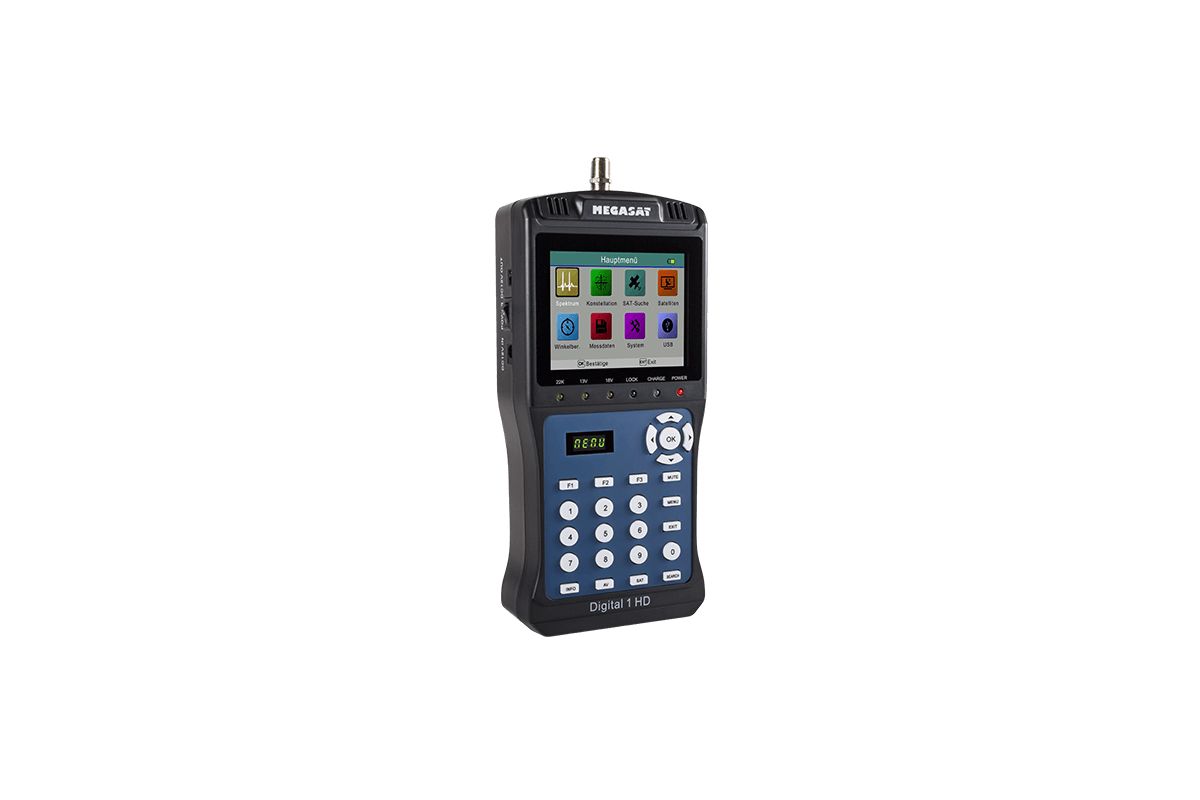

MEGASAT Digital 1 HD Satfinder & Μετρητής Δορυφορικού Σήματος (Satfinder, μοντέλο 2600011)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Megasat
• Model / MPN
  2600011
• EAN / GTIN
  4046173106497
• Product Name
  Digital 1 HD Satfinder & Messgerät
• Category
  Satellite meter / Satfinder / Antenna measuring device
• Reception Type
  DVB‑S, DVB‑S2
• Display
  3.5 inch colour TFT (320 x 240)
• Signal indicators
  PWR, C/N, MER, BER, FEC, signal strength, signal quality
• Acoustic/Optical Indication
  Yes (audio beep + LED level)

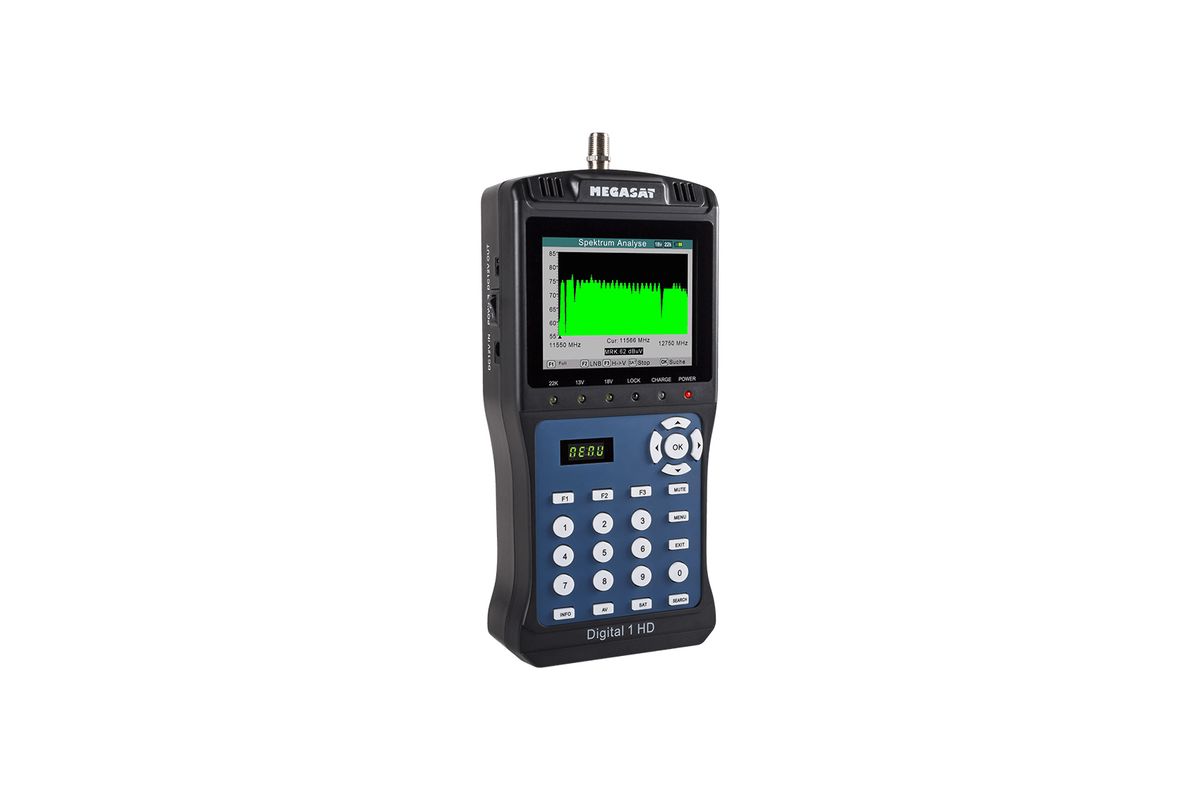

• Spectrum Analysis
  Yes

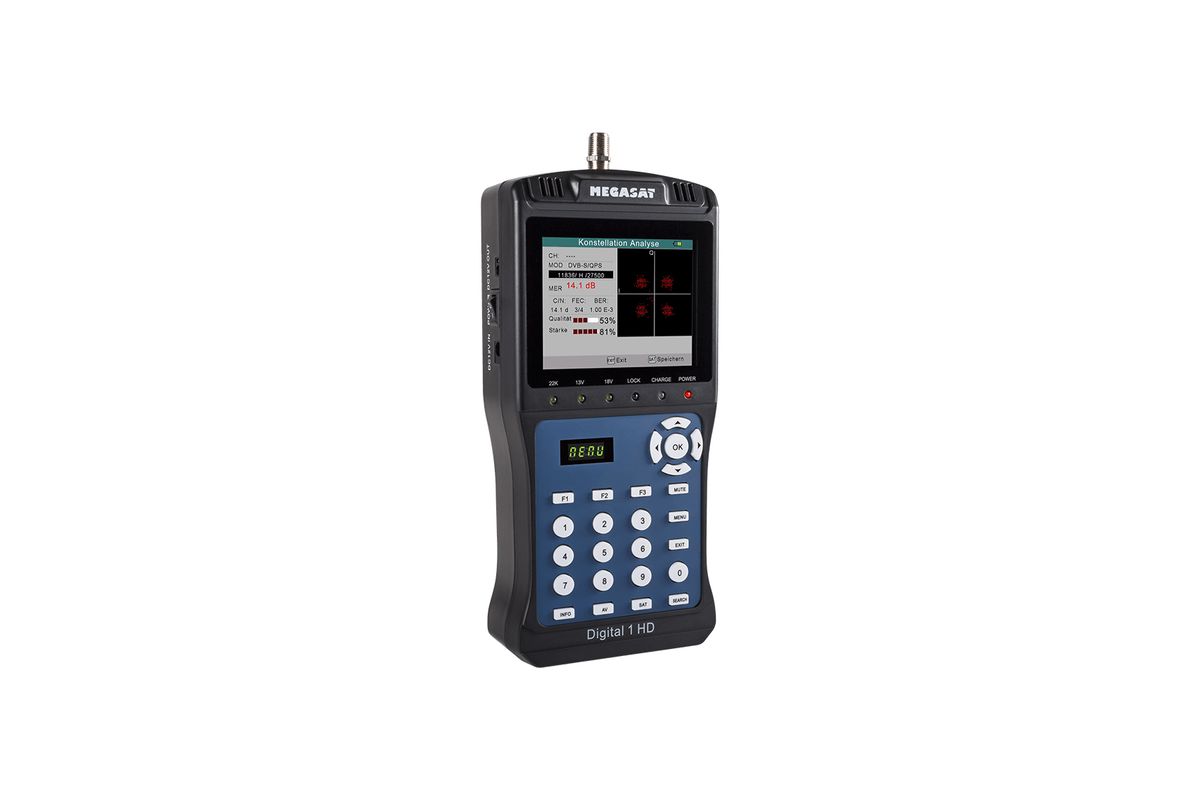

• Constellation Analysis
  Yes

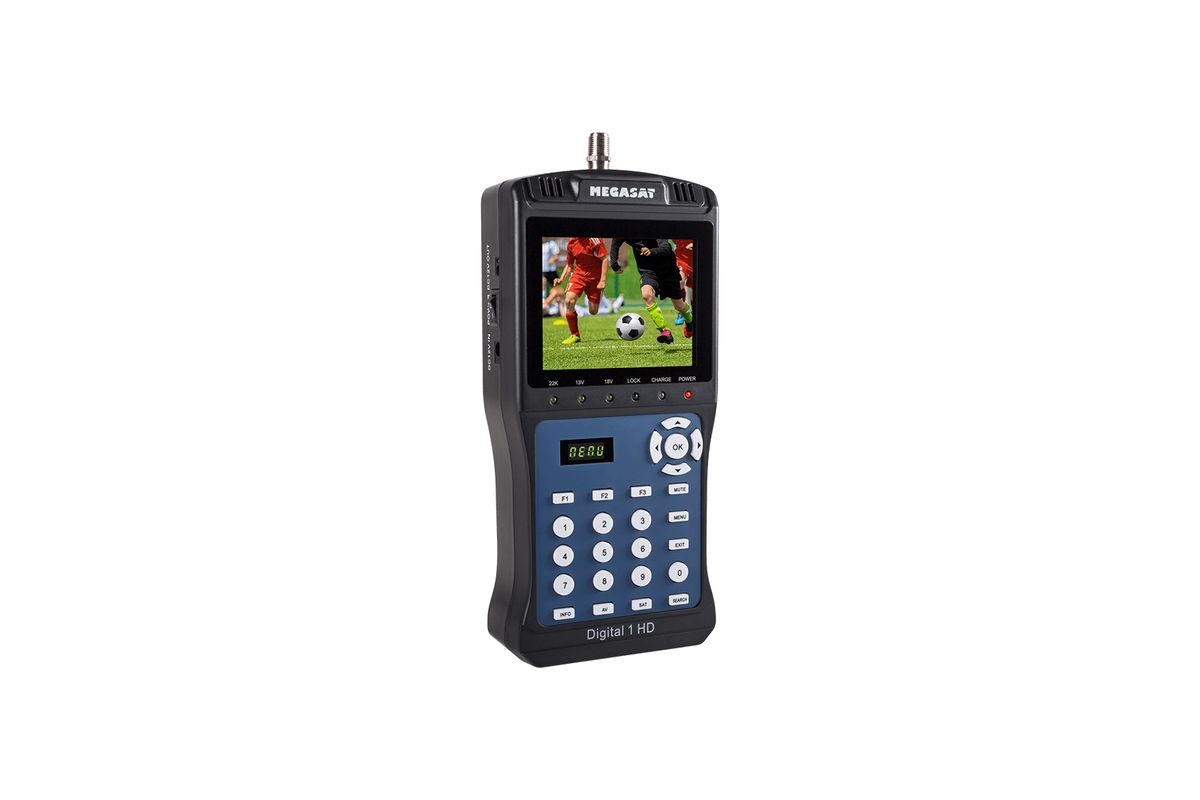

• Live TV Playback
  Yes (integrated receiver + speaker)
• Satellite Detection
  Automatic NIT detection
• Satellite/Transponder Lists
  Preprogrammed, editable
• DiSEqC Support
  DiSEqC 1.0 / 1.1 / 1.2 / USALS / Auto‑DiSEqC
• Unicable Support
  Unicable I & II (EN 50494 / EN 50607)
• LNB Voltage
  13/18 V, max. 500 mA (display/monitoring)
• LNB Protection
  Short‑circuit indication / protection
• Frequency Range
  950–2150 MHz
• Signal Level Range
  ~30–90 dBµV

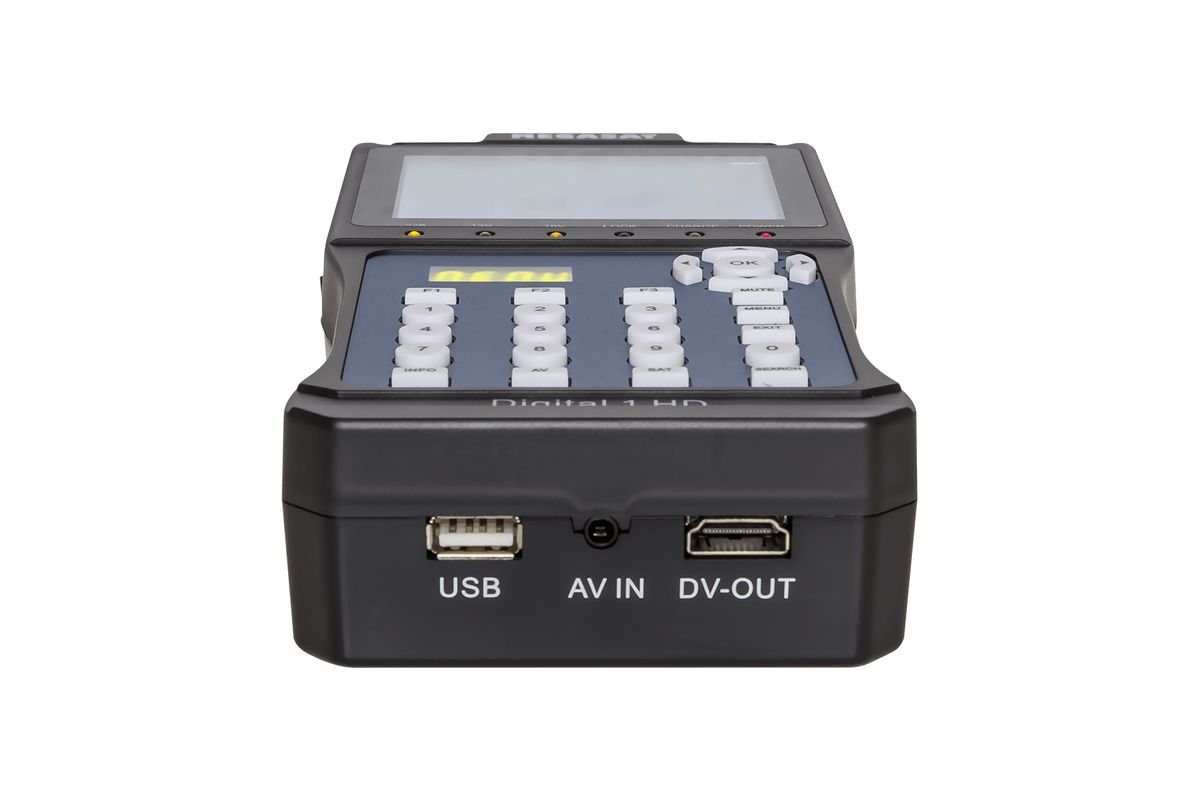

• HDMI Output
  1x HDMI out
• AV Input
  1x AV in
• USB Port
  1x USB (firmware updates, data export)

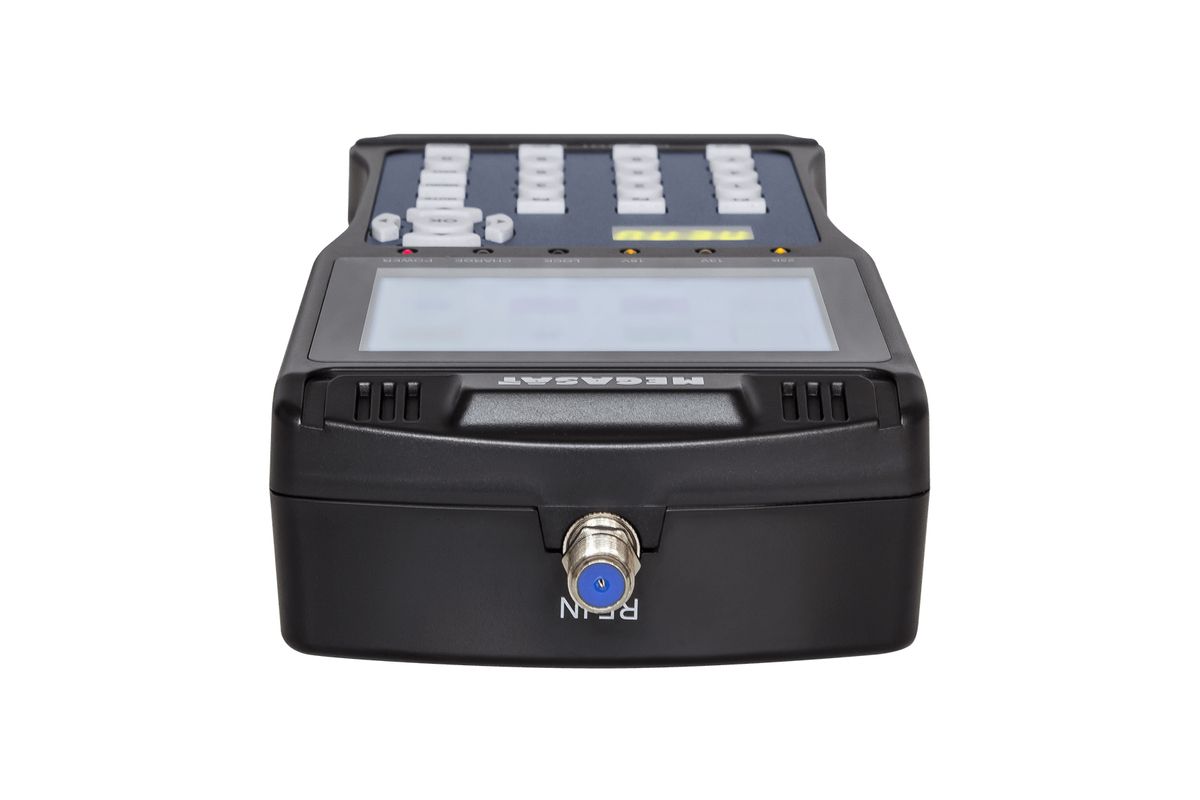

• RF Connector
  1x F‑connector input

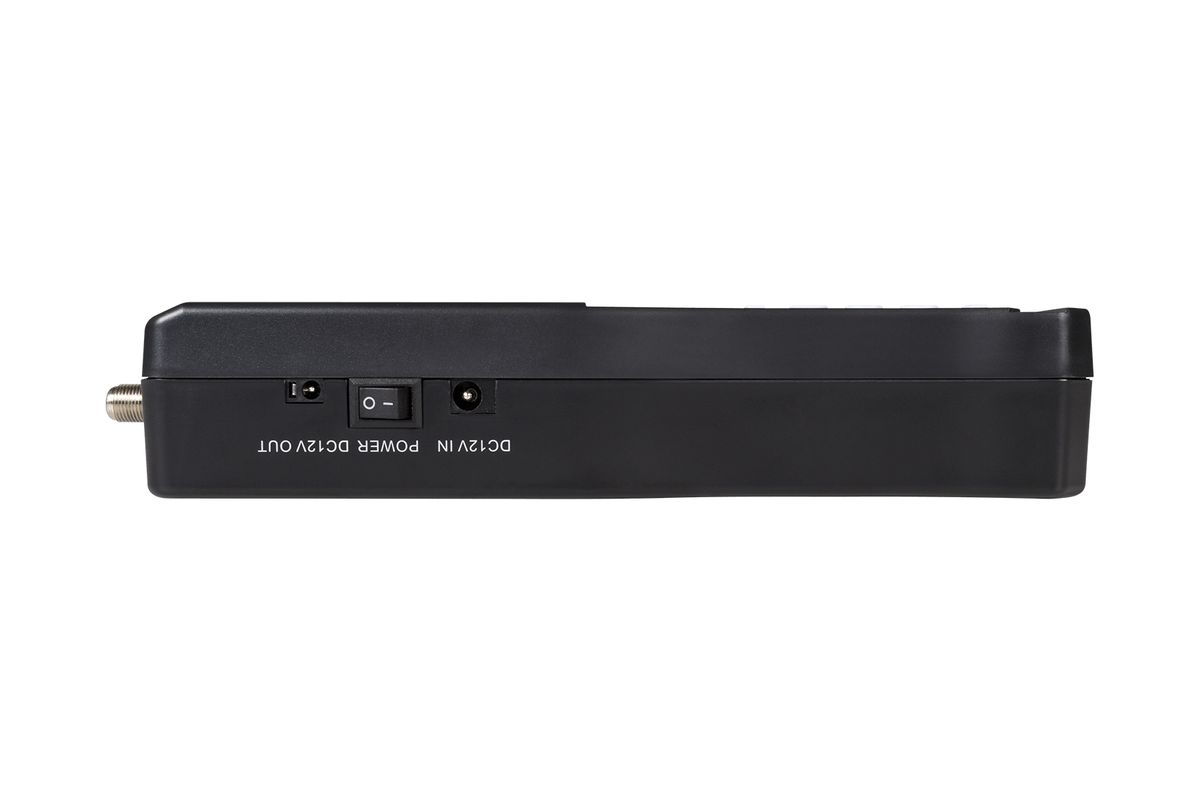

• Power Input/Output
  DC 12 V in; DC 12 V out
• Battery Type
  Li‑Ion battery
• Battery Rating
  8.4 V / 3000 mAh
• Battery Life
  About 3 hours (typical)
• Power Supply
  AC 100–240 V adapter; car adapter included in retail packages
• Firmware Updates
  Via USB
• Storage
  Internal storage for measurement data
• Dimensions (device)
  approx. 155 x 95 x 45 mm (manufacturer listings vary)
• Weight (device)
  425 g (net)
• Housing Colour
  Black

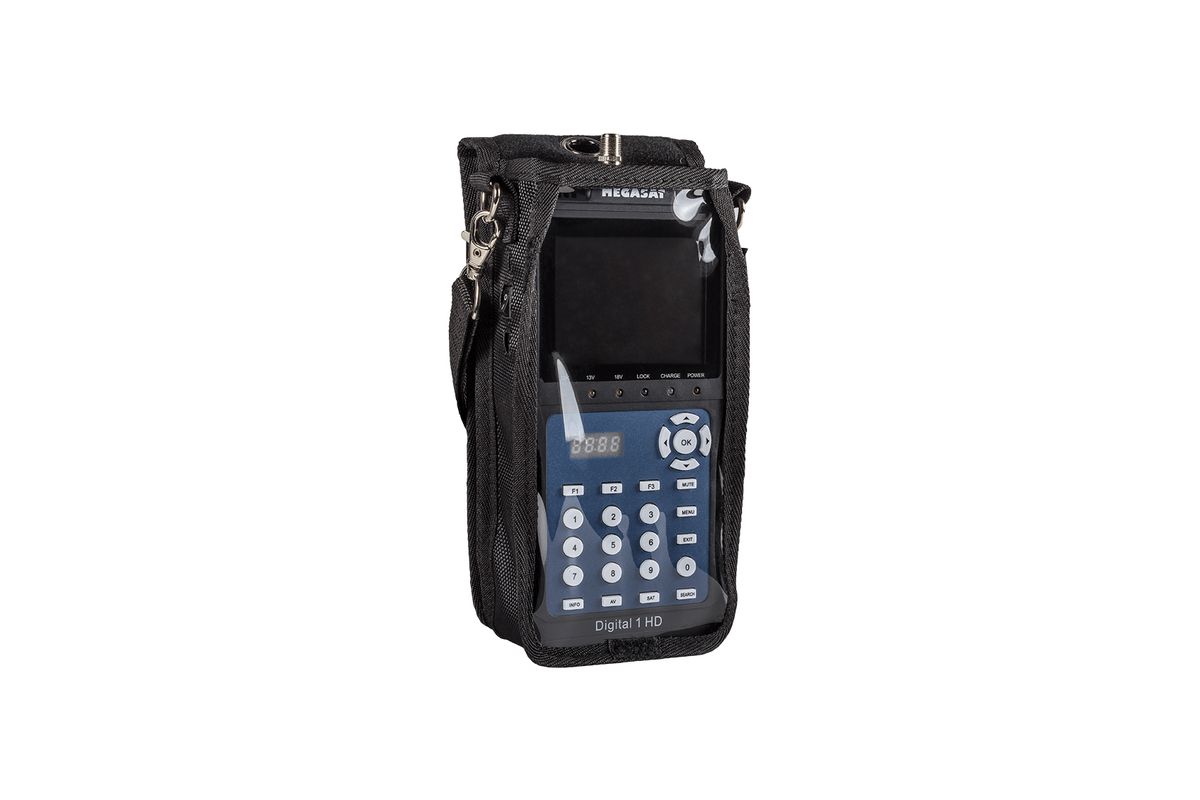

• Accessories Included
  Protective case with strap, AC adapter/charger, car charger, AV adapter, user manual
• Manufacturer
  Megasat Werke GmbH
• Manufacturer Address
  Brückenstraße 2a, 97618 Niederlauer, Germany
