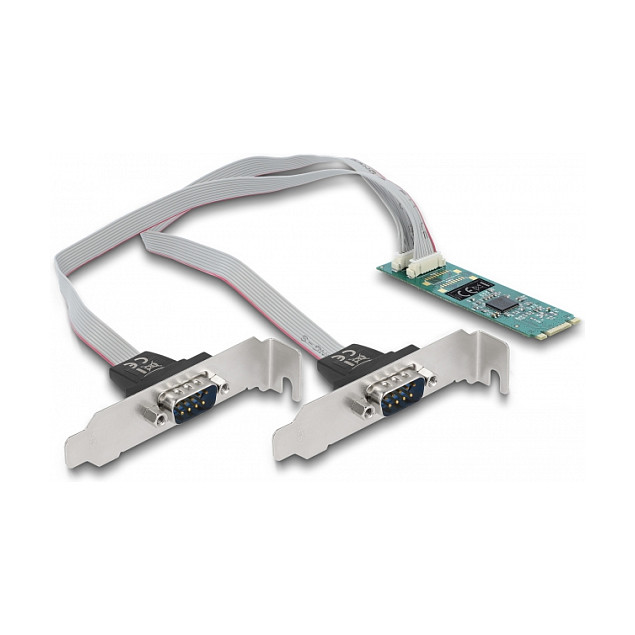

M.2 Κάρτα σε 2 x Σειριακές RS-232 DB9 με Standard και Low Profile Πλαϊνές Πλακέτες

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  DeLOCK
• SKU
  21153403
• MPN
  95270
• EAN / Barcode
  4043619952700
• Product type
  M.2 to Serial (RS-232) expansion card
• Interface
  PCI Express 2.1 x1 (via M.2 59-pin B+M)
• M.2 connector
  1 x 59-pin M.2 Key B+M (M.2 2280 form factor)
• Ports
  2 x RS-232 DB9 (male) on included slot brackets
• Chipset
  ASIX AX99100
• UART compatibility
  16C950 UART compatible
• Max data rate
  up to 921.6 kbps
• Data bits
  5, 6, 7, 8, 9
• Parity
  even, odd, none, mark, space
• Flow control
  none, Xon/Xoff, RTS/CTS
• FIFO buffer
  256 bytes
• Power & features
  ASPM support, DMA support, slow IrDA mode up to 115 kbps
• Form factor
  M.2 2280 (approx. 80 × 22 × 8 mm)
• Card dimensions
  approx. 80 × 22 × 8 mm
• Operating temperature
  0 °C to 70 °C
• Supported OS
  Windows 10 (32/64-bit), Windows 8.1 (32/64-bit), Windows Server 2012 R2, 2016, 2019
• Included in package
  M.2 serial card, standard and low-profile slot brackets (and mounting hardware/cables as required for DB9 connection)
• Intended use
  Add 2 RS-232 serial ports to PC systems with an available M.2 B+M slot for industrial/legacy device connectivity
