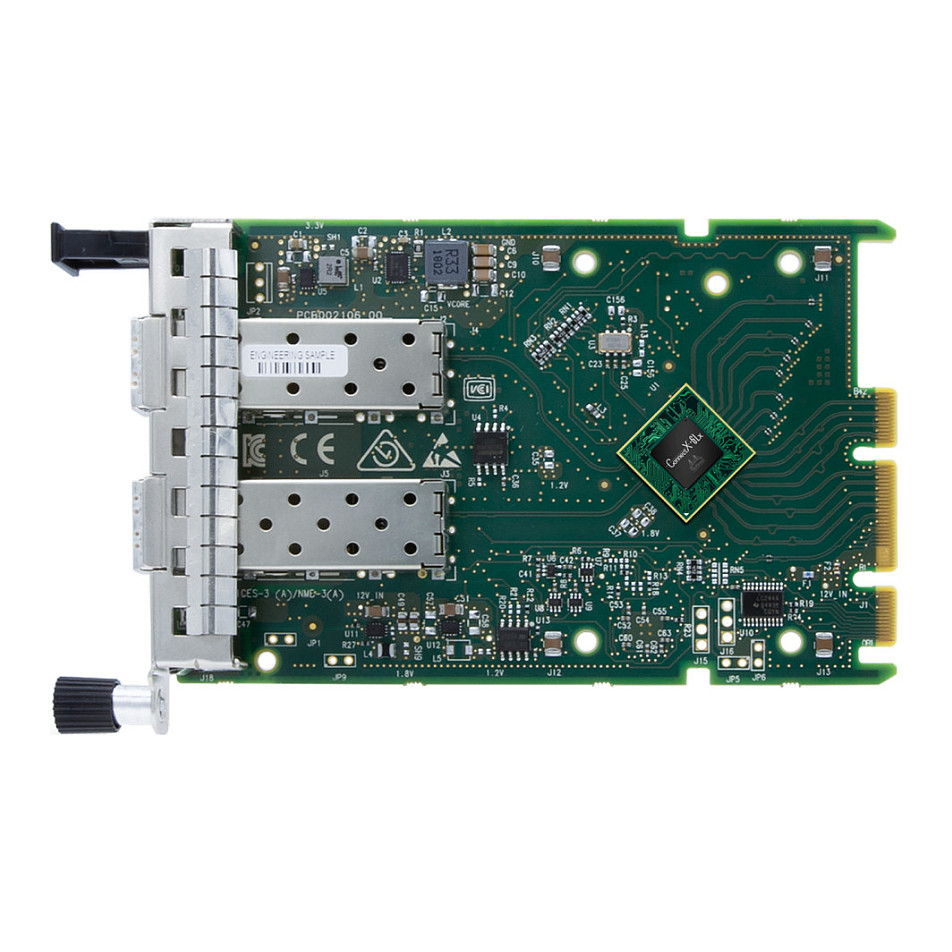

Lenovo ThinkSystem Mellanox ConnectX-6 Lx - Δικτυακός αντάπτορας OCP 3.0 - 2x 10/25GbE SFP28

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Product Name
  Lenovo ThinkSystem Mellanox ConnectX-6 Lx - OCP 3.0 - Dual-Port 10/25GbE SFP28
• Brand
  Lenovo (NVIDIA/Mellanox technology)
• MPN
  4XC7A62582
• SKU
  21133203
• EAN
  0889488542628
• Form Factor
  OCP 3.0 small form factor (SFF)
• PCI Interface
  PCIe Gen 4.0 x8 (backward compatible with PCIe Gen 3.0 x8)
• Ports
  2
• Port Type
  SFP28
• Data Rates
  10/25 Gigabit Ethernet per port
• Max Data Transfer Rate
  25 Gbps per port
• Message Rate
  ~75 Mpps (line rate)
• Supported Network Standards
  IEEE 802.1Q, 802.1Qaz, 802.1Qbb, 802.1Qbg, 802.3ad, 802.3ae, 802.3ap, 802.3az, 802.3by
• FEC Modes
  Supports all 25G FEC modes (IEEE 802.3by)
• RDMA / Storage
  RoCE v2 (Zero Touch RoCE support), NVMe over Fabrics capable
• Offloads & Acceleration
  ASAP2 hardware offloads (SR-IOV, VirtIO acceleration, connection tracking, VXLAN/NVGRE/GENEVE overlay offloads)
• Security
  Hardware root-of-trust, cryptographically signed firmware updates, in-line IPsec hardware acceleration
• Virtualization
  SR-IOV support (up to 512 VFs per port), up to 8 PFs
• Jumbo Frames
  Supports up to 9,600 bytes
• Timing
  High-precision PTP support
• Physical Dimensions
  Width: 76 mm; Depth/Length: 115 mm (OCP SFF card)
• Operating Temperature
  0°C to 55°C
• Storage Temperature
  -40°C to 70°C
• Operating Humidity
  0% to 90% non-condensing
• Mounting
  OCP 3.0 slot
• Certifications
  CB / cTUVus / CE / FCC / VCCI / ICES / RCM / RoHS
• Use Cases
  Enterprise datacenters, cloud-native infrastructure, hyperscale, telco/NFV, NVMe-oF storage, AI/ML workflows
• Weight (card)
  ~60 g
• Package Weight
  ~200 g
