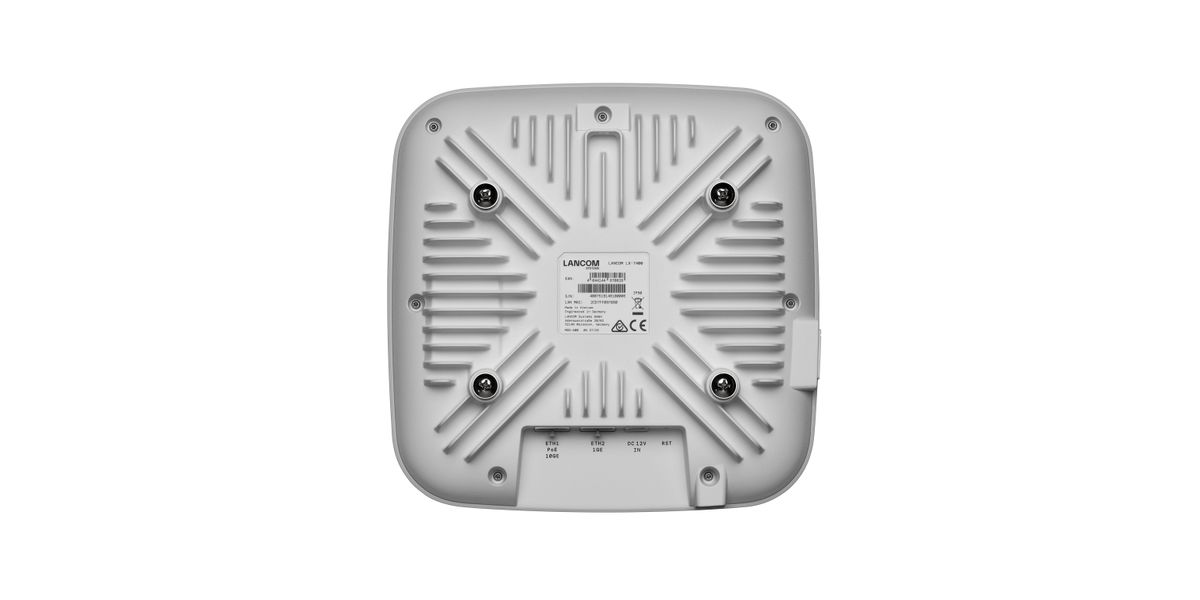

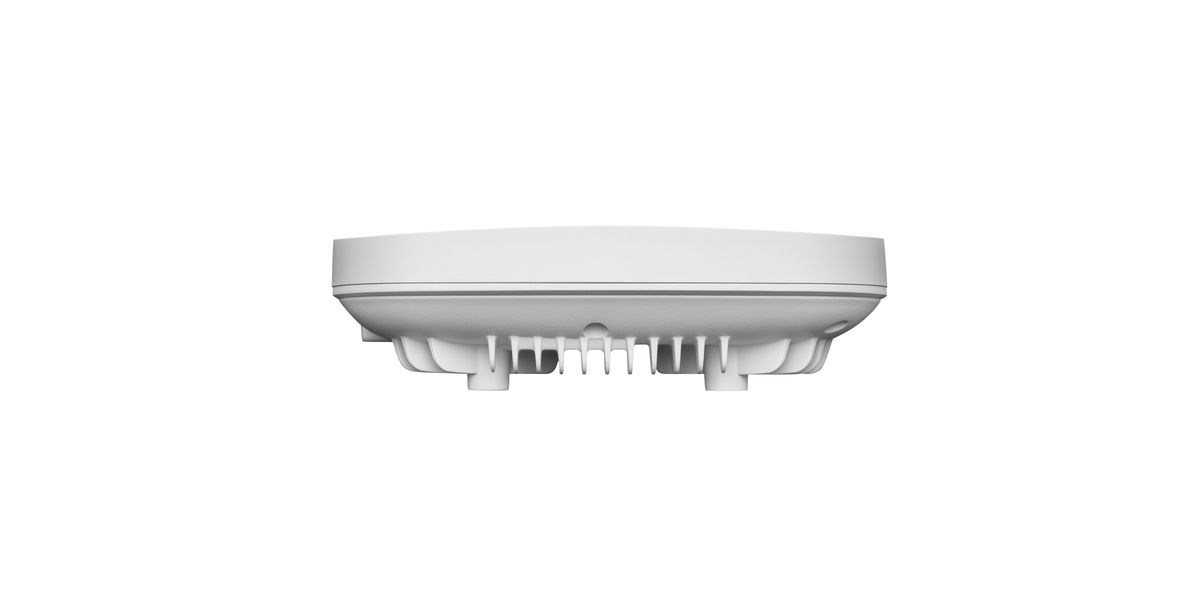

LANCOM LX-7400 Wi‑Fi 7 Τριπλής Μπάντας Σταθμός Πρόσβασης (Access Point)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  LANCOM Systems
• Model
  LX-7400
• MPN
  61933
• EAN
  4044144619335
• SKU
  568105
• Category
  Wireless LAN Indoor Access Point (Wi‑Fi 7, Tri‑Band)
• Wi‑Fi Standard
  IEEE 802.11be (Wi‑Fi 7), backward compatible with IEEE 802.11ax
• Frequency Bands
  2.4 GHz; 5 GHz; 6 GHz
• MIMO Configuration
  2.4 GHz: 2x2 MIMO; 5 GHz: 4x4 MIMO; 6 GHz: 4x4 MIMO
• Maximum Aggregated Data Rate
  18 Gbps (across all bands)
• Per‑Band Max Data Rates
  2.4 GHz up to ~688 Mbps; 5 GHz up to ~5,764 Mbps; 6 GHz up to ~11,529 Mbps (implementation dependent)
• Channel Bandwidths
  Up to 40 MHz (2.4 GHz), up to 160 MHz (5 GHz), up to 320 MHz (6 GHz, 802.11be)
• Key Wi‑Fi 7 Features
  Multi‑Link Operation (MLO), OFDMA, 4096‑QAM, DL/UL MU‑MIMO, DL/UL‑OFDMA, Triggered TWT, BSS Coloring
• Concurrent Clients Capacity
  Up to 256 per radio
• Multi‑SSID
  Up to 32 SSIDs
• Antenna
  Integrated antennas; antenna gain up to ~5 dBi (2.4 GHz) and up to ~7 dBi (5/6 GHz)
• Transmit Power (Max EIRP)
  2.4 GHz: 20 dBm; 5 GHz: 23 dBm (5150–5350 MHz), 30 dBm (5470–5725 MHz); 6 GHz: 23 dBm (region dependent)

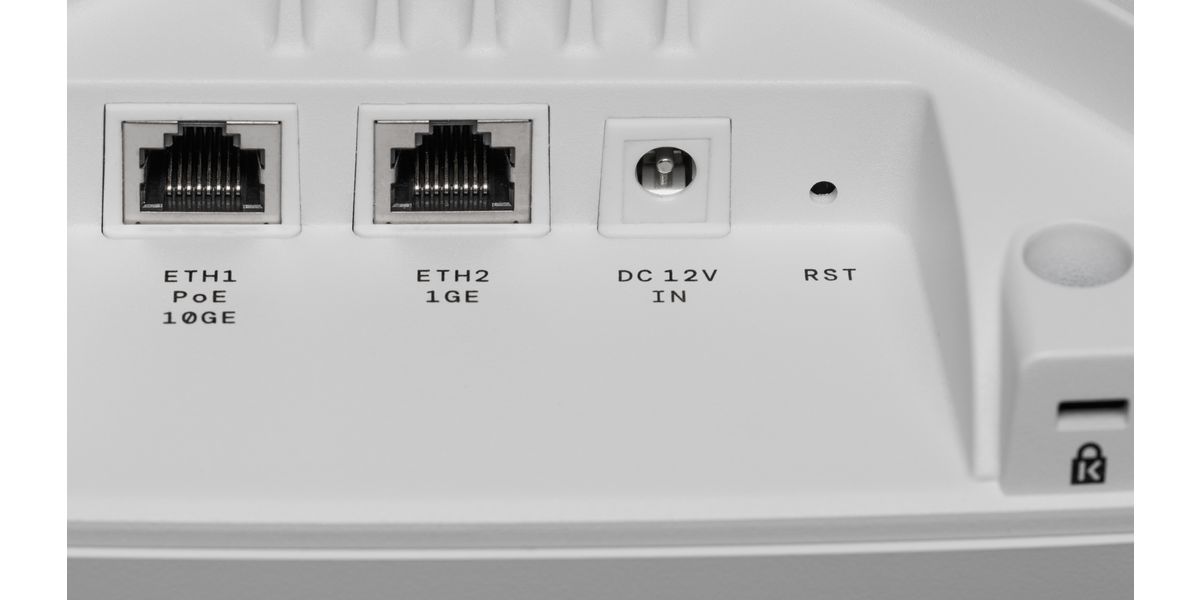

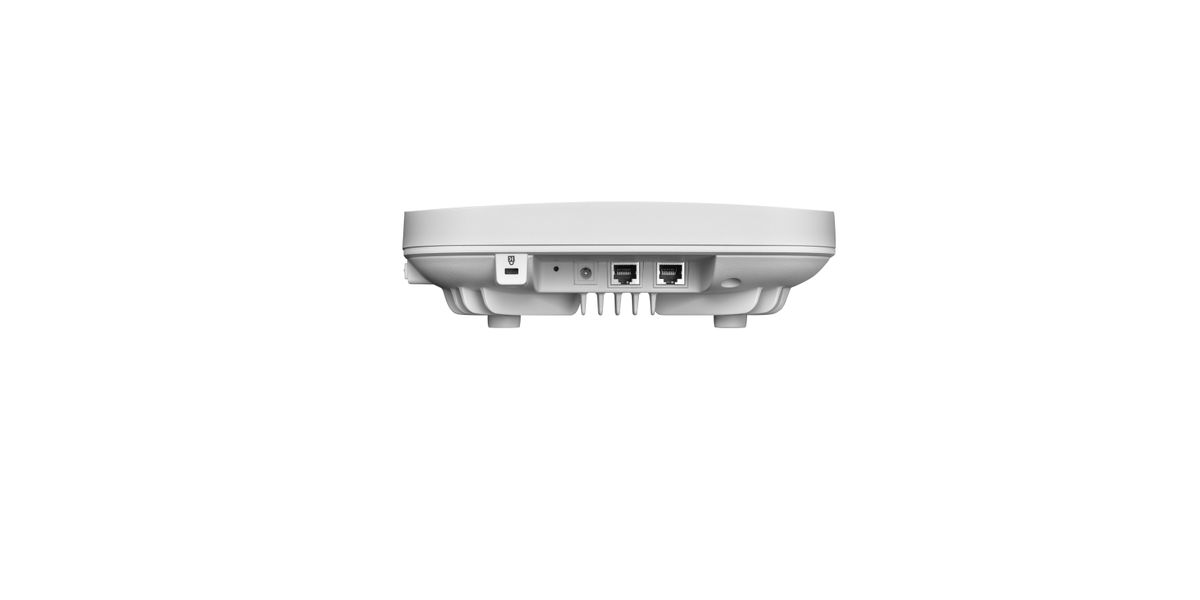

• Ethernet Interfaces
  ETH1: 100M/1G/2.5G/5G/10G Base‑T with PoE++ (IEEE 802.3bt); ETH2: 10/100/1G Base‑T
• USB
  USB 2.0 (IoT support)
• Power Options
  PoE++ (802.3bt) recommended for full functionality; 12V DC input (external PSU not included)
• IoT / BLE
  Bluetooth Low Energy (BLE) 5.4 for IoT applications
• Management
  LANCOM Management Cloud (cloud‑managed), Active Radio Control 2.0
• Hardware / Housing
  Aluminum and plastic housing, fanless design, Kensington lock slot

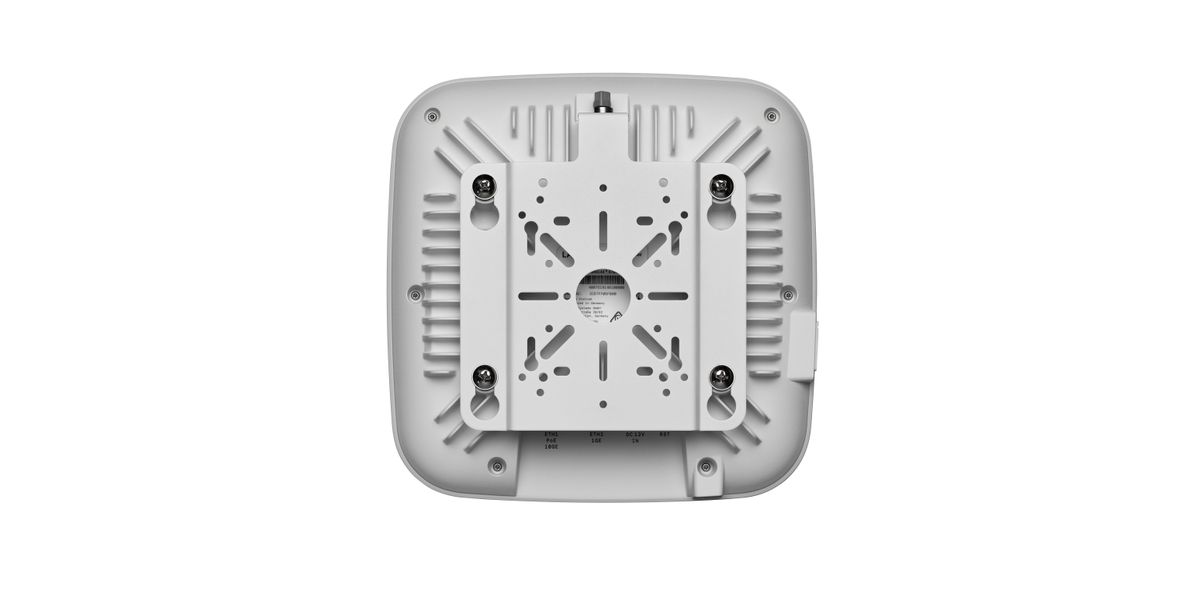

• Mounting
  Wall and ceiling mounting kit included
• Standards & Compliance
  IP50, UL 2043 (plenum/low smoke), region dependent regulatory restrictions for 6 GHz
• Dimensions (W×D×H)
  225 × 225 × 65 mm
• Package Dimensions
  ~250 × 250 × 65 mm
• Operating Temperature
  0–40 °C
• Humidity
  0–95% non‑condensing
• Warranty
  3 years (manufacturer's warranty — source dependent)
• Notes
  Requires 802.3bt PoE for full 10G + full feature set; reduced functionality without PoE++
