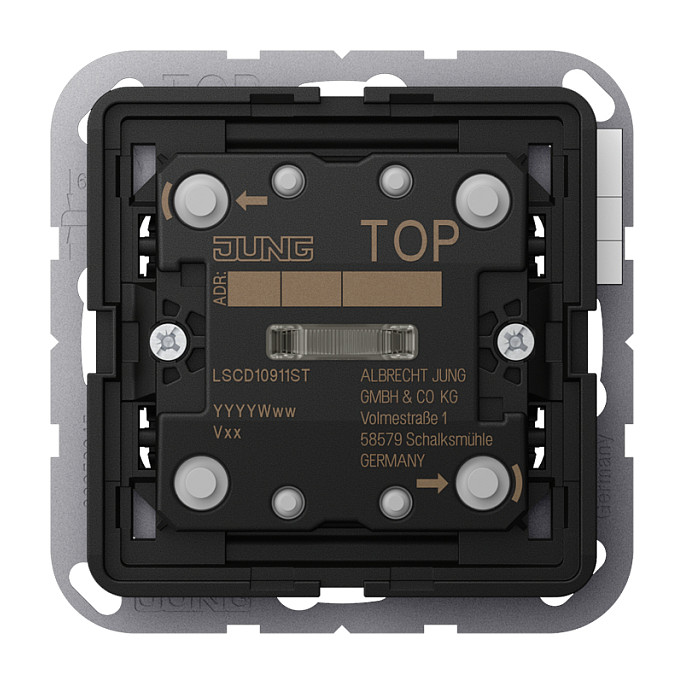

JUNG LSCD10911ST KNX Πλήκτρο Universal 1-θέσιο (σειρά LS/CD)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  JUNG
• Model / MPN
  LSCD10911ST
• SKU
  21179126
• EAN / Barcode
  4011377179233
• Product type
  KNX push-button universal 1-gang (1-fach Taster)
• Series / Design family
  LS / CD (F10 Secure family naming)
• Mounting type
  Flush-mounted (Unterputz), device box DIN 49073
• KNX medium
  TP 256
• KNX Data Secure
  Compatible (ETS 5.7.3 or higher), commissioning S-mode, security X-mode
• Rated voltage
  DC 21–32 V SELV
• KNX current consumption (no extension)
  4.9–8.2 mA
• KNX current consumption (with push-button extension)
  6.6–9.4 mA
• KNX current consumption (with external switching contacts)
  7.7–11 mA
• KNX connection
  Standard connection terminal (bus terminal)
• Cable type
  J-Y(St)Y 2 x 2 x 0.8 mm (EIB-Y (St)Y 2x2x0.8)
• Max cable length
  30 m
• External switching contacts supported
  Up to 20
• Status LED
  1 LED per operating area; color selectable (red/green/blue); brightness adjustable
• Functions supported
  Light on/off, dimming, blinds up/down, brightness values, temperatures, scene recall/save, alarm with acknowledgement
• Operating concept
  Rocker or button selectable per operating area; single-area or dual-area evaluation; one or two functions per area
• Integrated bus coupling unit
  Yes
• Temperature measurement
  Built-in room temperature sensor (reports room temperature)
• Protection rating
  IP20
• Minimum device box depth
  required 35 mm
• Protection against theft/demounting
  Yes
• Display
  No
• Infrared sensor
  No
• Firmware updates
  Yes — via JUNG ETS Service App
• Packaging contents (typical)
  1x LSCD10911ST device, mounting hardware, quick guide/user manual (varies by retailer)
• Dimensions (device)
  (not specified by manufacturer in mm)
• Weight (product)
  ~60 g (typical for 1-gang KNX module)
• Package weight (est.)
  ~150 g
