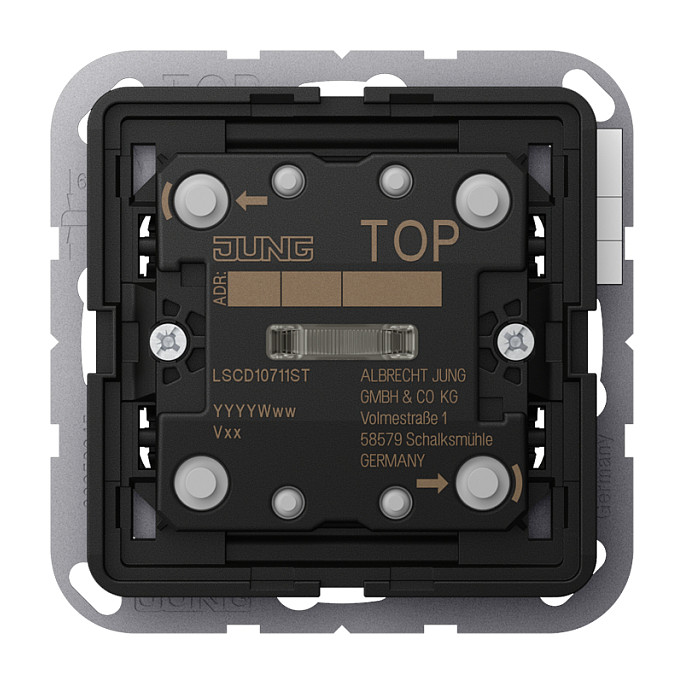

JUNG LSCD10711ST KNX Τάστερ Standard 1-Θέσης (F10)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  JUNG
• Model / MPN
  LSCD10711ST
• EAN / Barcode
  4011377179189
• Product type
  KNX push-button / taster, standard 1-gang (F10)
• KNX medium
  TP 256
• Security
  KNX Data Secure compatible (X‑mode)
• Commissioning mode
  S‑mode
• Bus coupling
  Integrated bus coupling unit
• Operating concept
  Rocker or button selectable per operating area
• Button evaluation
  Single-area or dual-area operation selectable
• Functions per operating area
  One or two functions configurable
• Status LED
  One red LED per operating area (Standard variant)
• Rated voltage
  DC 21–32 V SELV
• KNX current consumption
  5.9–8.2 mA
• Connection
  KNX connection terminal (EIB bus)
• Connecting cable recommendation
  EIB-Y (St)Y 2x2x0.8
• Protection class
  III
• Ambient temperature
  −5 to +45 °C
• Storage/transport temperature
  −25 to +70 °C
• Mounting
  Flush-mounted device box according to DIN 49073
• Material
  Plastic housing
• Weight
  ≈80 g (device only)
• Package contents
  Device, installation instructions (typical retail packaging)
• Compatibility
  Project planning and commissioning with ETS 5.7.3 or later for KNX Data Secure
• Updateability
  Updateable with ETS Service App
