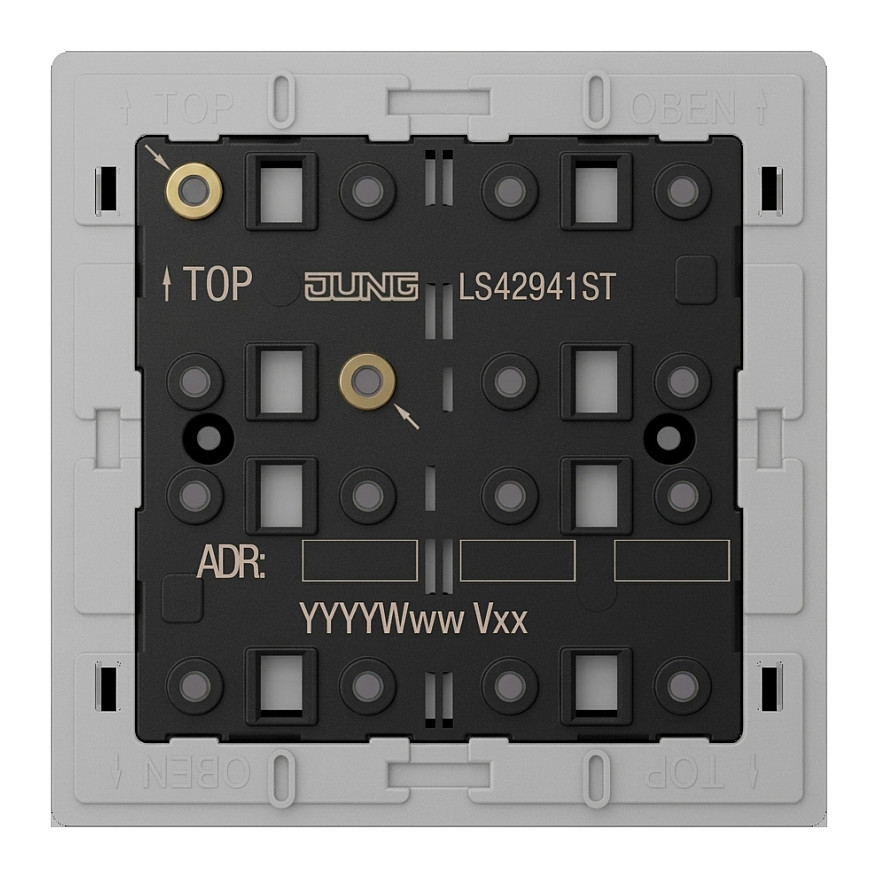

Jung LS 4294 1ST KNX Ελεγκτής Πλήκτρων (Tastsensor) Universal 4πλός, F40, Secure, Σειρά LS

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  JUNG
• Model / MPN
  LS42941ST
• SKU
  21181960
• EAN
  4011377339200
• Product Type
  KNX Tastsensor-Modul Universal (touch sensor / button module)
• Number of Buttons
  4 (universal)
• Functions per Button
  Supports 1, 2 or 3 functions per button area
• Operation Modes
  Push-button (tastenfunktion) and toggle/wippen functions supported
• KNX Medium
  TP 256 (Twisted Pair)
• KNX Data Secure
  Supported (requires ETS 5.7.7 or ETS 6.1.0/6.3.0 for full support)
• Nominal Voltage
  DC 21 ... 32 V SELV (from KNX bus)
• Current Consumption
  5–8 mA (without extension), 5–11 mA (with extension)
• Protection Class
  III (SELV)
• Ingress Protection
  IP2X
• Mounting Type
  Recessed (unterputz) in DIN 49073 device box
• Material
  Plastic
• Compatible Series
  JUNG LS Series (fits 55 mm switch program)
• LED Indicators
  Two red LEDs per button area (status), one blue LED for orientation/programming
• Temperature Sensor
  Integrated internal temperature sensor; supports external sensor via communication object
• Temperature Measurement Range
  -5 °C to +45 °C (measurement), ambient operating range +5 °C to +45 °C
• Controls Supported
  Switching, dimming, shading (up/down), scene call/save, value sender/receiver, locking
• Connectivity / Bus
  Integrated KNX bus coupler
• Expansion
  Supports Tastsensor-Erweiterungsmodul (extension), compatible 409..TSEM series
• Firmware / Updates
  Supports updates via ETS Service App
• ETS Compatibility
  ETS 5.x and ETS 6.x (note: Data Secure requires ETS 5.7.7+ / ETS 6.1.0+)
• Dimensions (module)
  Not specified by source (recessed module for DIN 49073 device box)
• Package Weight (estimated)
  200 g
• Product Weight (estimated)
  80 g
