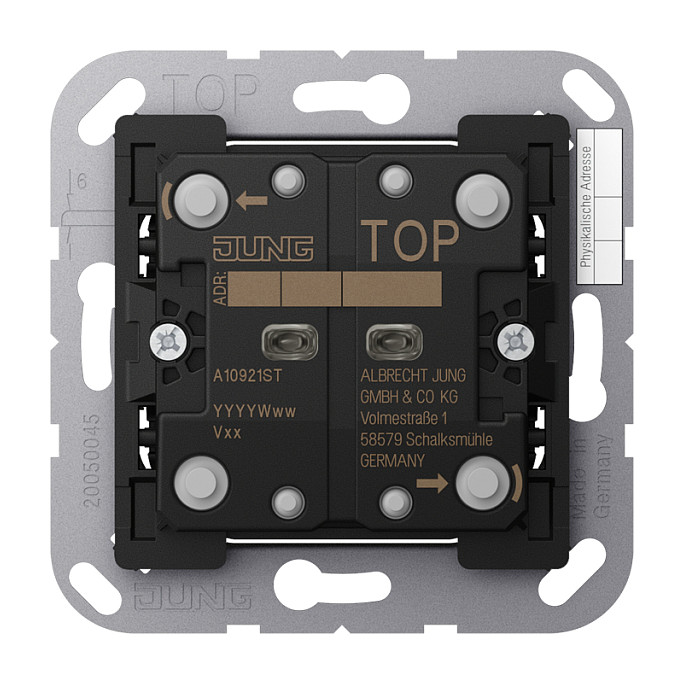

JUNG A10921ST KNX Taster Universal 2fach — KNX πιεζόμενο χειριστήριο 2 πλήκτρων

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  JUNG
• Model / MPN
  A10921ST
• SKU
  21190983
• EAN
  4011377179226
• Product type
  KNX push-button universal 2-gang (KNX Taster Universal 2fach)
• Number of buttons
  2
• Number of operating points
  4
• LED indication
  Yes — one status LED per operating area, color configurable (red/green/blue)
• KNX medium
  TP256
• KNX system
  Yes
• KNX security
  Supports KNX Data Secure / X-mode
• Commissioning mode
  S-mode
• Rated voltage
  DC 21–32 V SELV
• Current consumption
  4.9–8.2 mA (no extension), 6.6–9.4 mA (with push-button extension), 7.7–11.0 mA (with external switching contacts)
• Protection class
  III
• Ingress protection rating
  IP20
• Mounting type
  Flush-mount (in device box / underplaster)
• Minimum device box depth
  20 mm
• Ambient operating temperature
  −5 to +45 °C
• Storage/transport temperature
  −25 to +70 °C
• Connection cable
  EIB-Y (St)Y 2x2x0.8
• KNX connection
  Standard connection terminal
• Tamper / disassembly protection
  Yes
• Room temperature measurement
  Supported
• Button operation modes
  Rocker or button per operating area (configurable)
• Button evaluation
  Single-area or dual-area operation (configurable)
• Functions per area
  One or two functions per operating area
• Status LED brightness
  Adjustable
• Extensions
  Push-button extension and external switching contact connection possible
• Intended functions
  Switching, dimming, blind control (up/down), brightness values, temperature values, colour values, scene recall/save
• Compatibility
  ETS 5.7.3+ for KNX Data Secure, ETS Service App updatable
