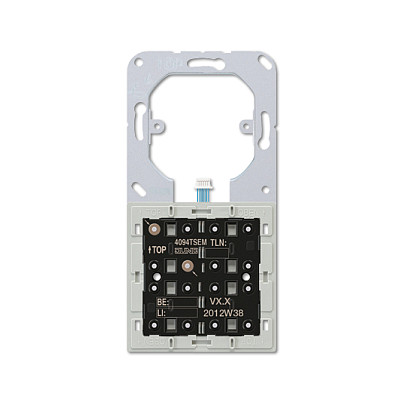

JUNG 4094 TSEM KNX Επεκτατικό module αισθητήρα αφής Universal 4-θέσιο

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  JUNG (Albrecht Jung GmbH & Co. KG)
• Model / MPN
  4094 TSEM / 4094TSEM
• SKU
  21185132
• EAN / GTIN
  4011377036789
• Product Type
  KNX touch sensor extension module (Tastsensor-Erweiterungsmodul Universal 4fach)
• Function
  Extends JUNG touch sensor / room controller with 1- to 4-gang universal touch sensor functionality
• Number of actuation points
  8
• KNX compatible
  Yes
• KNX RF / LON / Powernet
  No
• Mounting type
  Flush-mounted (Unterputz)
• Protection rating
  IP20
• Protection class
  III
• Material
  Plastic (Kunststoff)
• Color
  White
• LED indicator
  Yes (red LEDs for status indication)
• Anti-theft / anti-dismantling protection
  Yes
• Label field
  No
• Display
  No
• Room thermostat / Infrared sensor
  No
• Bus coupling
  Yes
• Power supply
  Via compatible relay/dimm station universal (DC 24 V)
• Current consumption
  min ~3 mA, max up to ~19 mA (with TSM/TSEM connected, per manual)
• Connection type
  Connection terminal
• Max. cable length
  100 m
• Recommended cable type
  J-Y(St)4 2x2x0,8 (manufacturer recommendation)
• Operating temperature
  +5 to +45 °C (some listings show −5 to +45 °C)
• Storage / transport temperature
  −25 to +70 °C
• Adapter frames / compatibility
  LS 4 AR (LS series, pre-mounted), CD 4 AR (CD series), AS/A series without adapter frame
• Sales unit
  1 piece (1 Stk)
• Mounting orientation
  Vertical preferred (manufacturer/retailer notes)
