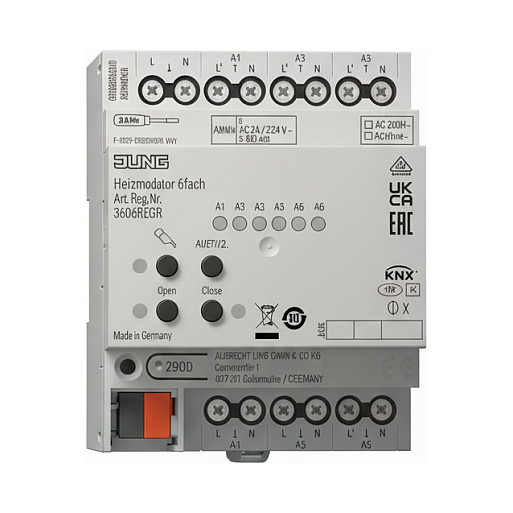

Jung 36006 1S R KNX θερμικός ενεργοποιητής θέρμανσης 6πλός με ρυθμιστή
εως 36 δόσεις με πιστωτική κάρτα
Χρειάζεσαι Βοήθεια; Συμπλήρωσε τα στοιχεία σου για να σε καλέσουμε άμεσα!
Έως 36 Δόσεις. Δείτε το πλάνο δόσεων:
TBI Bank
Buy Now Pay Later.
4 δόσεις 0% επιτόκιο, 20€ έως 300€
3 έως 60 δόσεις 300€ έως 100.00€
- 1. Αποστολή με ACS Courier
- 2. Αποστολές με μεταφορικές εταιρίες για ογκώδη αντικείμενα
-
3. Παραλαβή από αυτόματο μηχάνημα BoxNow:
Με την BoxNow μπορείς να παραλάβεις το δέμα σου από Αυτόματο Μηχάνημα Παραλαβής που βρίσκεται κοντά σου, όλες τις ώρες της ημέρας 24/7. Η υπηρεσία έχει χρέωση 3€. Υπάρχει δυνατότητα αντικαταβολής με επιπλέον χρέωση 1€.
-
4. Παραλαβή από το κατάστημα:
Λεωφ. Ελ. Βενιζέλου 73(πρώην Θησέως), Καλλιθέα
Συμπληρώστε τον ταχυδρομικό κωδικό για να λάβετε εκτίμηση τρόπου και κόστους μεταφορικών.
-
BrandJung
-
Product NameKNX Heizungsaktor 6fach mit Regler (36006 1S R)
-
SKU21181806
-
EAN / Barcode4011377322318
-
MPN360061SR
-
CategoryHome & Living > Smart Home > Relais
-
System / ProtocolKNX (S-Mode commissioning)
-
KNX Data SecureCompatible (ETS 5.7.7 or ETS 6.1.0 depending on version)
-
MountingDIN rail (Hutschiene), REG enclosure
-
Width4 TE / 72 mm
-
Outputs6 heater outputs
-
Contact TypeSemiconductor (Triac)
-
Manual OperationYes, electronic manual actuation
-
LED Status IndicationYes
-
Integrated Room Temperature ControlYes (setpoint specification)
-
Independent Controllers12 (up to 12 independent rooms)
-
Operating ModesHeating and cooling control
-
Control ModeSwitching or PWM operation
-
Supported Actuator TypesNormally-open and normally-closed actuators
-
Supported Actuator VoltagesAC 230 V and AC 24 V
-
Max Actuators per Output4 x 230 V actuators or 2 x 24 V actuators
-
Switching Current (resistive max)0.16 A
-
Switching Current (general)5–160 mA
-
Inrush CurrentMax. 1.5 A (2 s); max. 0.3 A (2 min)
-
Protection / IP RatingIP2X
-
Ambient Temperature−5 to +45 °C
-
Storage/Transport TemperatureFrom −25 °C (upper limit not specified in sources)
-
KNX Nominal VoltageDC 21–32 V SELV
-
KNX Current Consumption4.5–10 mA
-
Supply / Switching VoltageAC 24 / 230 V
-
Fault ProtectionOverload-proof and short-circuit-proof
-
Fault IndicationLED fault indication
-
Ventile Protection / Anti-seizureYes
-
Blocking Individual OutputsYes (manual or via bus)
-
FeedbackVia manual operation and bus operation
-
Forced Position / Emergency ModeSupported; separate summer/winter setpoints on bus failure
-
Cyclic Monitoring of InputsConfigurable
-
Bus Status FeedbackYes (voltage loss, overload, sensor failure etc.)
-
Update CapabilityUpdateable with ETS Service App
-
Intended UseSwitching electrothermal actuators for underfloor heating, cooling ceilings and similar systems
-
Installation LocationSub-distribution panel / under-distributor
-
ETS Product FamilyHeizung, Klima, Lüftung
-
Product TypeVentile
