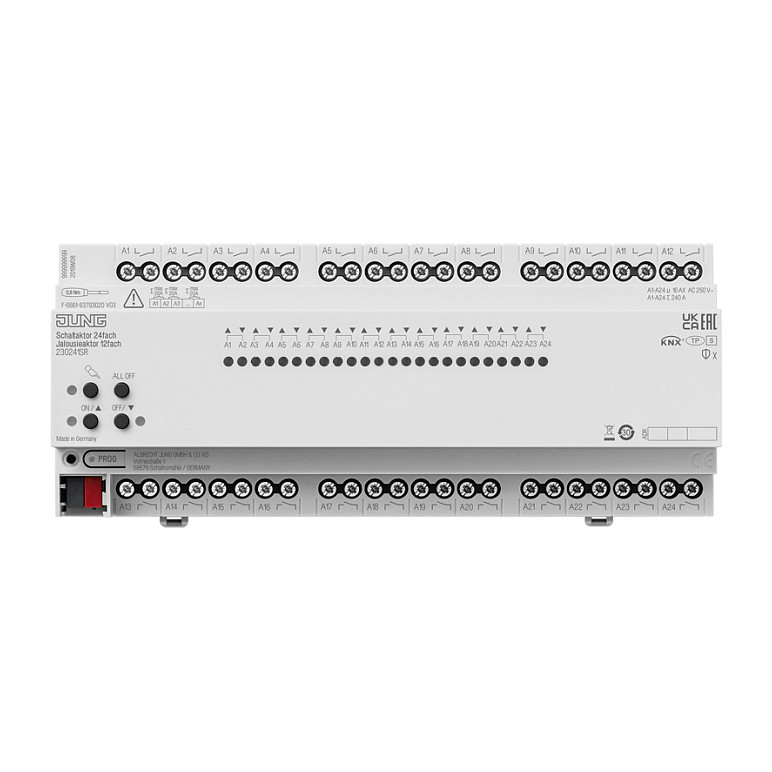

JUNG 230241SR KNX διακόπτης 24-πλ. / ενεργοποιητής σκιάσεων 12-πλ. (Jalousieaktor)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  JUNG (Albrecht Jung GmbH & Co. KG)
• MPN
  230241SR
• EAN
  4011377179134
• SKU
  21179130
• Product type
  KNX universal actuator (mix: switching + shutter/blind actuator)
• Switching outputs
  24 binary outputs
• Shutter/Blind outputs
  12 outputs
• Switching current per output
  16 A (resistive)
• Switching voltage
  AC 250 V
• Max switching power
  ~3000 W
• Capacitive load rating
  140 µF
• KNX bus rated voltage
  DC 21–32 V SELV
• KNX bus current
  24 mA
• KNX compatibility
  KNX TP, ETS commissioning, KNX Data Secure compatible
• Mounting type
  REG (DIN-rail)
• Width
  12 TE (216 mm)
• Manual/local operation
  Yes (electronic manual operation on device)
• LED indication
  Yes
• Security
  KNX Data Secure compatible (ETS 5.7.3+)
• Device functions
  Feedback, logic linking, forced control, central switching, time functions (delays), stairwell lighting with warning, scenes, operating hour counter
• Shutter/blind features
  Position and slat control, travel-state feedback, cyclic travel feedback, forced position, rain/frost/wind alarms, sun-protection functions
• Housing/form factor
  REG housing, 12 TE enclosure
• Bus systems not supported (reseller info)
  KNX RF, Funkbus, Powernet, LON, M-Bus, Matter
• Color
  White (typical JUNG device listings reference white)
• Documentation
  Datasheet and downloads available from JUNG download center
