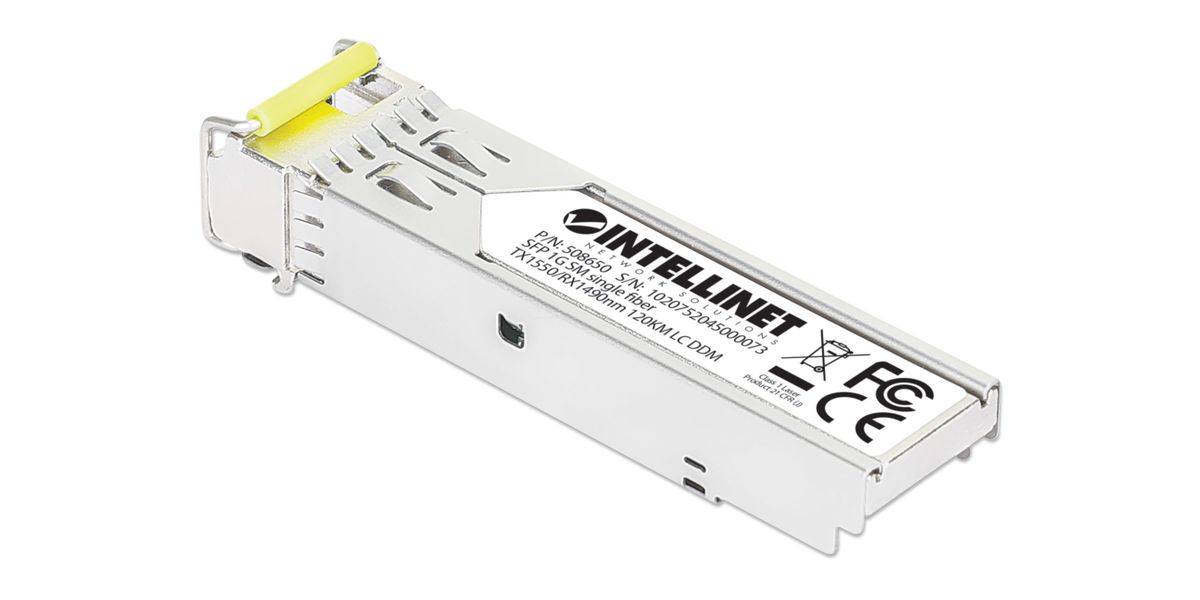

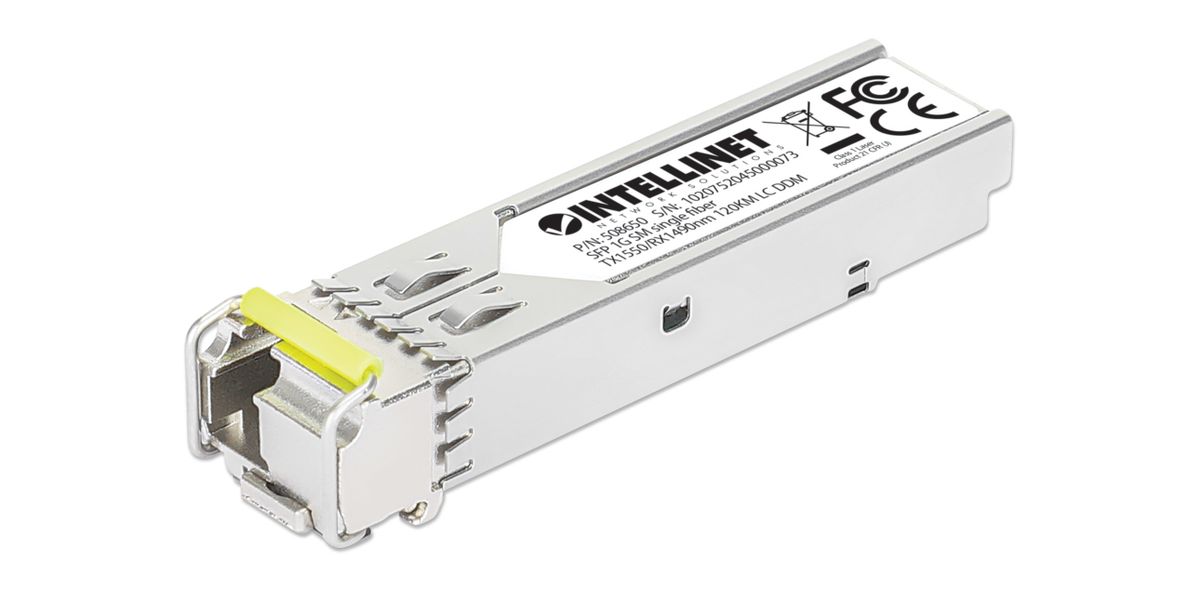

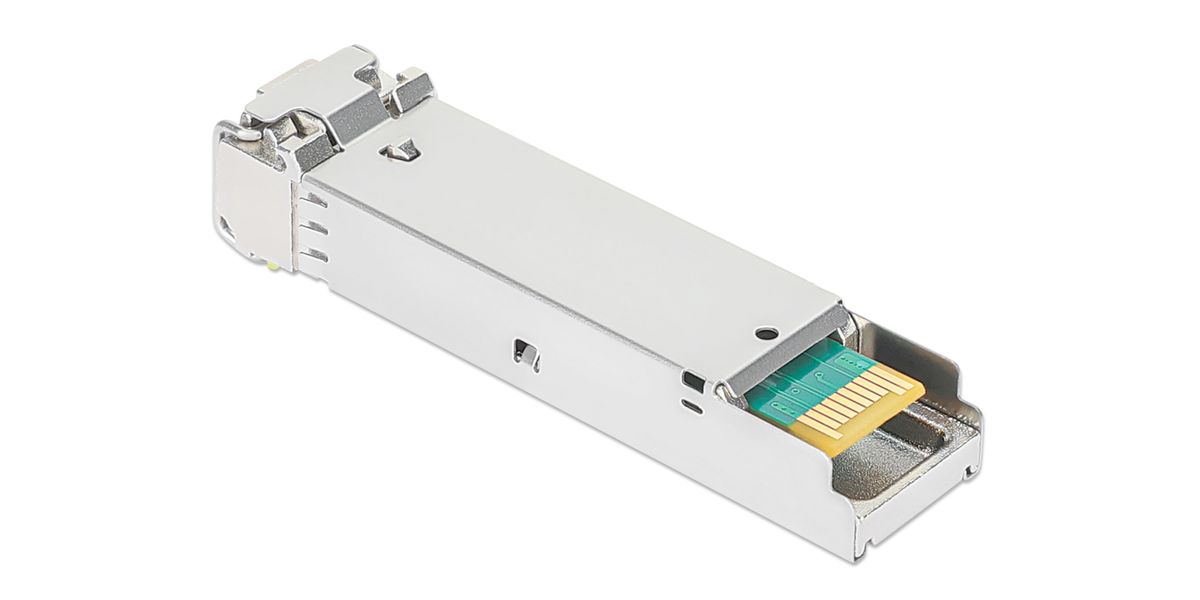

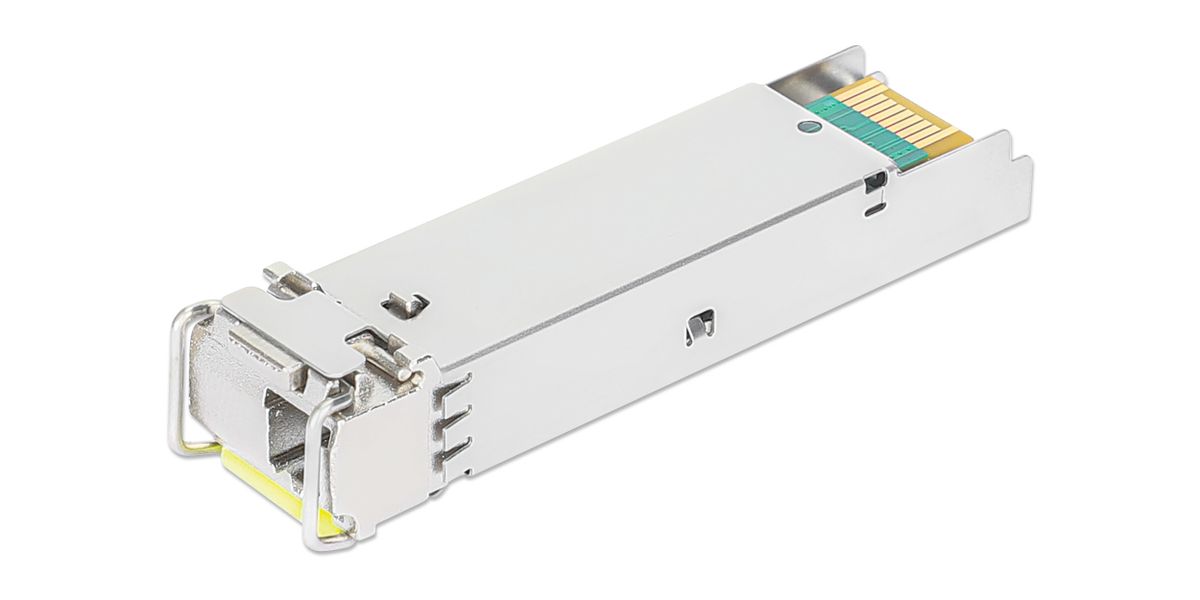

INTELLINET Gigabit Mini-GBIC BiDi WDM SFP (RX1490/TX1550) MSA

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Intellinet
• MPN
  508650
• SKU
  587025
• EAN / Barcode
  0766623508650
• Form Factor
  SFP (Mini-GBIC)
• Standard
  1000Base-BX (Gigabit Ethernet), SFP MSA, IEEE 802.3z
• Data Rate
  1 Gbps (1.25 Gbps line rate)
• Wavelength TX
  1550 nm
• Wavelength RX
  1490 nm
• Connector
  LC (single‑fiber BiDi)
• Fiber Type
  Single‑mode fiber (9/125 µm)
• Maximum Reach
  Up to 80 km (typical for this class of BiDi 80km modules)

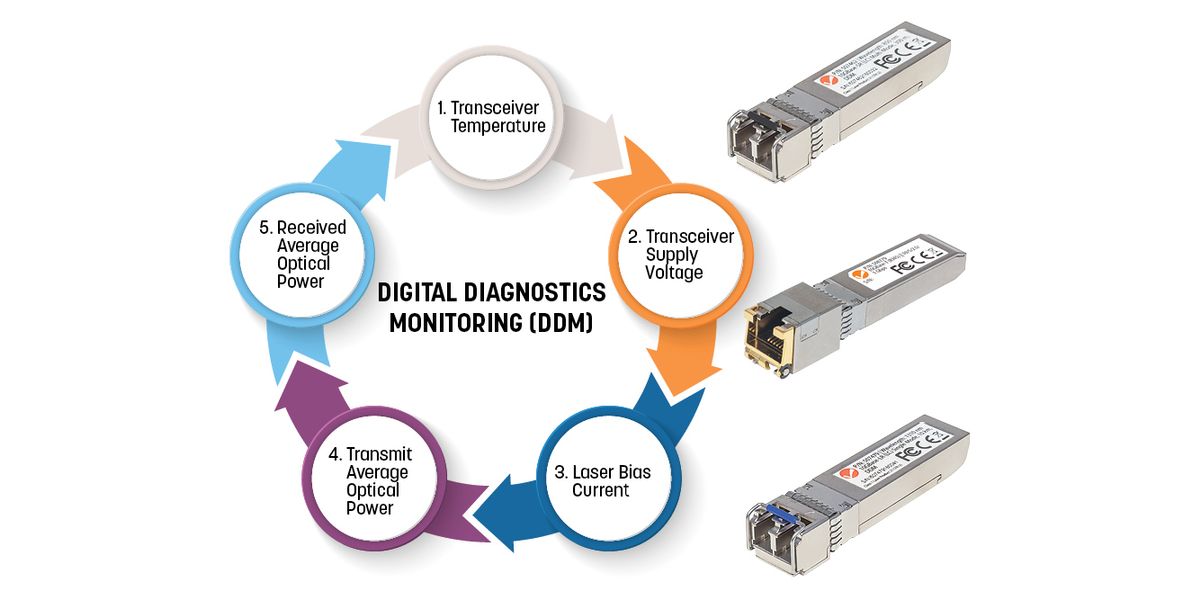

• DDM / Diagnostics
  Yes (SFF-8472 Digital Diagnostics Monitoring)
• MSA Compliance
  Yes (SFP MSA compatible)
• Hot‑pluggable
  Yes
• Housing
  Fully metallic (EMI shielding)
• Operating Voltage
  +3.3 V
• Power Consumption
  Typical <1.5 W (SFP class typical)
• Transmitter Type
  Laser (DFB/EML typical for long reach)
• Receiver Type
  High-sensitivity receiver (APD typical for 80 km class)
• Temperature Range
  0°C to 70°C (commercial); industrial variants possible
• Safety & Compliance
  RoHS, CE, IEC60825-1 Class 1 Laser Safety
• Warranty
  3 years manufacturer warranty
• Pairing Requirement
  Must be used in matched BiDi pair (this is TX1550/RX1490; pair with TX1490/RX1550 module)
• Compatibility
  MSA/Cisco‑compatible SFP ports (e.g., works with many switches from Cisco, Intellinet, Ubiquiti, ZyXEL, TP-Link when SFPs are supported)
• Weight
  ~20 g (module), package ~30 g
• Dimensions
  SFP standard dimensions (~13.4 x 56.5 x 8.5 mm)
• Additional Notes
  NDAA/US compliance status reported for Intellinet transceiver lineup (check region-specific declarations)
