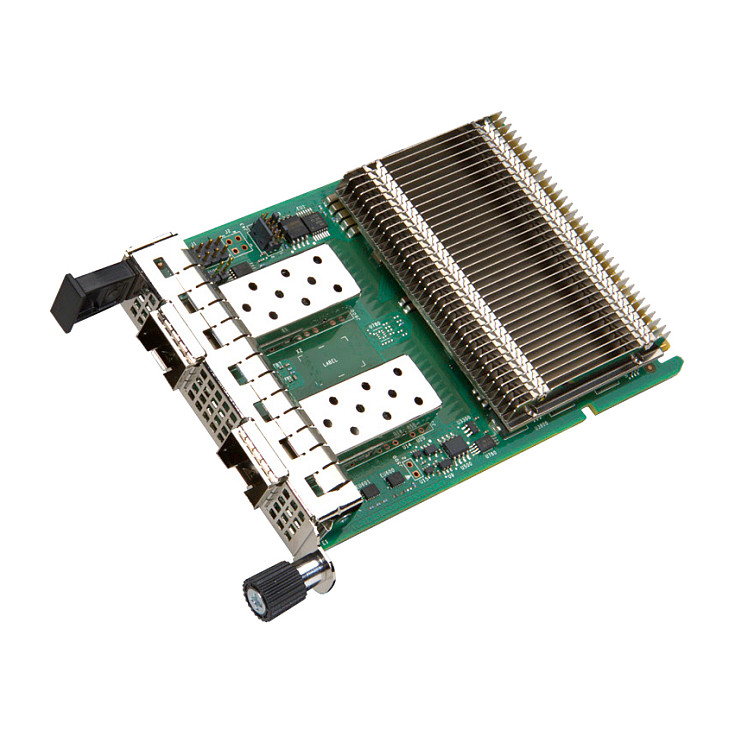

Intel Ethernet Network Adapter E830-XXVDA2 - 2 θυρών 25/10/1GbE PCIe 4.0 (OCP 3.0)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Intel
• Model
  E830-XXVDA2
• MPN
  E830XXVDA2OC3
• SKU
  21198415
• EAN
  5032037280778
• Product Type
  Network adapter (server NIC)
• Vertical segment
  Server
• Ports
  2 x SFP28
• Port speeds
  25/10/1GbE per port
• Controller
  Intel Ethernet Controller E830
• PCIe interface
  PCIe 4.0 x8 (16 GT/s, 8 lanes)
• Form factor
  OCP 3.0 bracket
• Supported media
  SFP28 optics, DAC, AOC (25GBASE-SR/LR/CR, 25G-AUI C2M)
• Virtualization/Offloads
  Intel VT-c, VMDq, SR-IOV, Intel Data Direct I/O
• RDMA
  iWARP and RoCEv2
• Software/acceleration
  DPDK, DDP (Dynamic Device Personalization), ADQ (Application Device Queues)
• Time sync
  PTP (IEEE 1588 v2), Precision Time Measurement (PTM) v1.0a
• Security
  Signed firmware, secure boot, hardware root of trust (CNSA 1.0 listed)
• Power consumption
  max ~8.9–9.8 W (datasheet/brief range)
• Dimensions
  167 mm x 68 mm (6.57 in x 2.67 in)
• Operating temperature
  0 °C to 65 °C
• Storage temperature
  -40 °C to 70 °C
• Storage humidity
  Up to 90% non-condensing at 35 °C
• Certifications
  FCC B, UL, CE, VCCI, BSMI, RCM, KCC
• RoHS compliant
  Yes
• Typical use cases
  Cloud, Enterprise, Communications, Storage (iSCSI/NFS)
• Launch date
  Q1'25
• Weight (product)
  80
