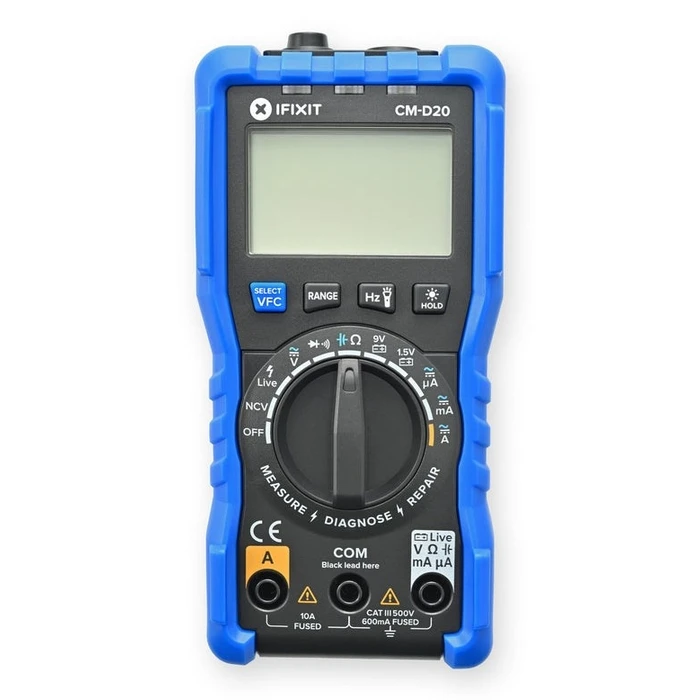

iFixit IF145-035-8 Ψηφιακό Πολύμετρο CAT III 500V

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  iFixit
• Model / MPN
  IF145-035-8
• SKU
  WLONONWCRSRBT
• EAN
  0810140230065
• Product type
  Handheld digital multimeter
• Safety rating
  IEC 61010-1 CAT III 500V
• Display
  9999-count True RMS 4-digit LCD (backlit)
• Auto-ranging
  Yes
• True RMS
  Yes
• Measurement functions
  DC V, AC V, DC A, AC A, resistance, capacitance, frequency, diode, continuity, battery test, NCV
• DC Voltage range
  0.1 mV to 500 V
• AC Voltage range
  0.001 V to 500 V
• DC Current range
  0.1 µA to 10 A
• AC Current range
  0.1 µA to 10 A
• Resistance range
  0.1 Ω to 99.99 MΩ
• Capacitance range
  0.001 nF to 99.99 mF
• Frequency range
  10 Hz to 60 kHz
• Accuracy (DC Voltage)
  ±0.7–0.8%
• Accuracy (AC Voltage)
  ±1.0–1.2%
• Accuracy (DC Current)
  ±0.8–1.2%
• Accuracy (AC Current)
  ±1.0–1.5%
• Resistance accuracy
  ±1.0–2.0%
• Capacitance accuracy
  ±4.0–5.0%
• Voltage input impedance
  Approximately 10 MΩ
• Current protection / fusing
  µA/mA fuse: 600 mA / 500 V; 10 A fuse: 10 A / 600 V; fuse size: 6.3 x 32 mm
• NCV (non-contact voltage)
  Yes (top-left NCV sensor)
• Live-wire detection
  Yes (single-probe live detection)
• Continuity test
  Audible
• Diode test
  Yes
• Battery test
  1.5V and 9V with internal load
• Flashlight function
  Yes (hold Hz button 2s; auto off 15s)
• Data hold
  Yes
• Backlight
  Yes
• Auto shut-off
  Yes
• Low battery warning
  Yes
• Double insulation
  Yes
• Power
  2 × 1.5V AAA batteries
• Weight
  195 g
• Colour
  Black, Blue
• Operating temperature
  0 °C to 40 °C
• Storage temperature
  -10 °C to 50 °C
• Operating humidity
  <70% relative humidity
• Max altitude
  2000 m
• Included accessories
  Test leads, manual, batteries
