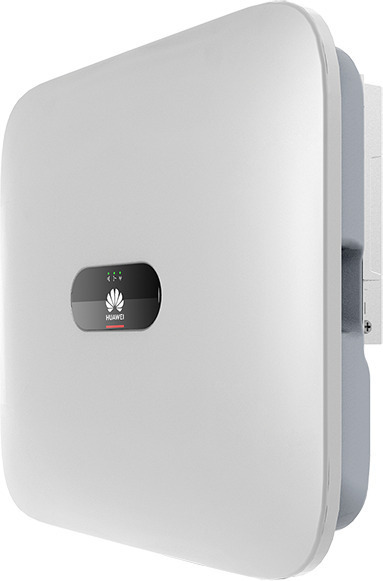

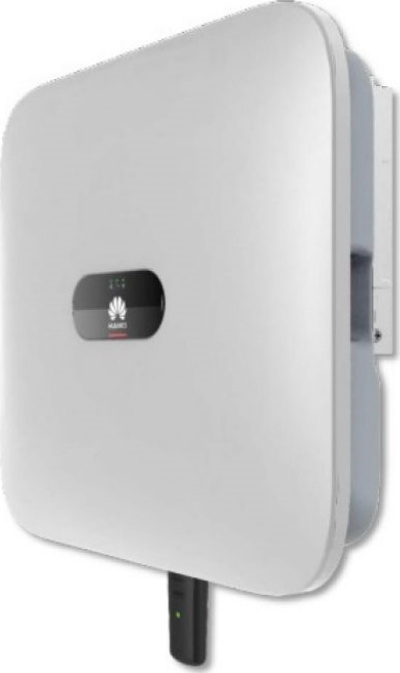

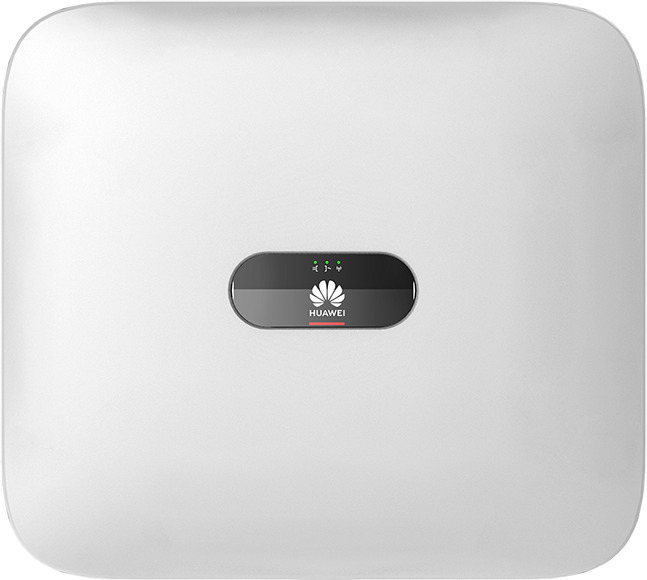

Huawei SUN2000-8KTL-M1 Inverter 8000W (Τριφασικό) με Τάση Εισόδου 600V

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Huawei
• Model
  SUN2000-8KTL-M1
• Product Type
  Three-phase solar inverter
• Nominal AC output power
  8000 W
• Nominal AC apparent power
  8800 VA
• Maximum efficiency
  98.6 %
• European weighted efficiency
  98.0 %
• Maximum PV array power (recommended)
  12000 Wp
• Maximum DC input (Voc)
  1100 V
• Nominal DC input voltage
  600 V
• Start-up voltage
  200 V
• MPPT operating voltage range
  140 V – 980 V
• Number of MPP trackers
  2
• Max input current per MPPT
  11 A
• Max short-circuit current per string
  15 A
• Max number of strings per MPP tracker
  1
• Battery compatibility
  HUAWEI Smart String ESS 5kWh–30kWh
• Battery voltage range
  600 – 980 Vdc
• Max battery charge current
  16.7 A
• Max battery charging power
  10000 W
• Max export power
  8800 W
• AC nominal voltages supported
  220 Vac / 380 Vac; 230 Vac / 400 Vac (3W / N+PE)
• AC output frequency
  50 Hz / 60 Hz
• Max AC output current
  13.5 A
• Backup Box
  Backup Box – B1
• Backup UPS/AC output power
  3300 VA (backup mode spec)
• Backup output voltage
  220 V / 230 V
• Backup rated current
  15 A
• Power factor range
  0.8 lead … 0.8 lag (adjustable)
• Standby power consumption
  < 5.5 W
• Cooling
  Natural convection (passive) / fan-assisted depending on variant
• Indicators
  LED; WLAN + FusionSolar integration
• Communications
  RS485, WLAN/Ethernet (Smart Dongle-WLAN-FE), 4G/3G/2G (Smart Dongle-4G)
• Weight
  17 kg
• Dimensions (W×D×H)
  525 × 470 × 146.5 mm
• Enclosure rating
  IP65
• Operating temperature range
  -25 °C to +60 °C
• Operating humidity range
  0 % RH ~ 100 % RH
• Maximum operating altitude
  4000 m
• Standards & certifications
  EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
• Grid codes / approvals
  G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
