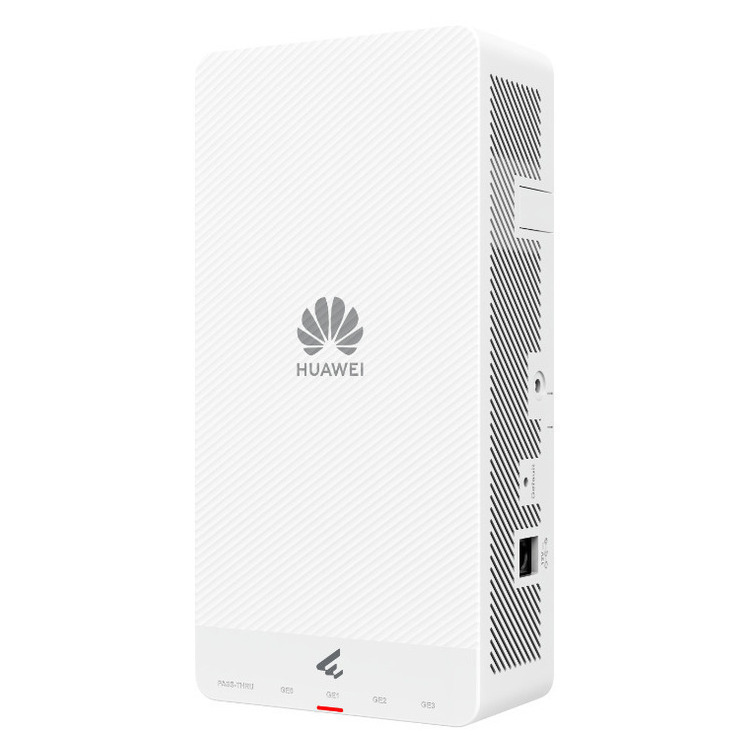

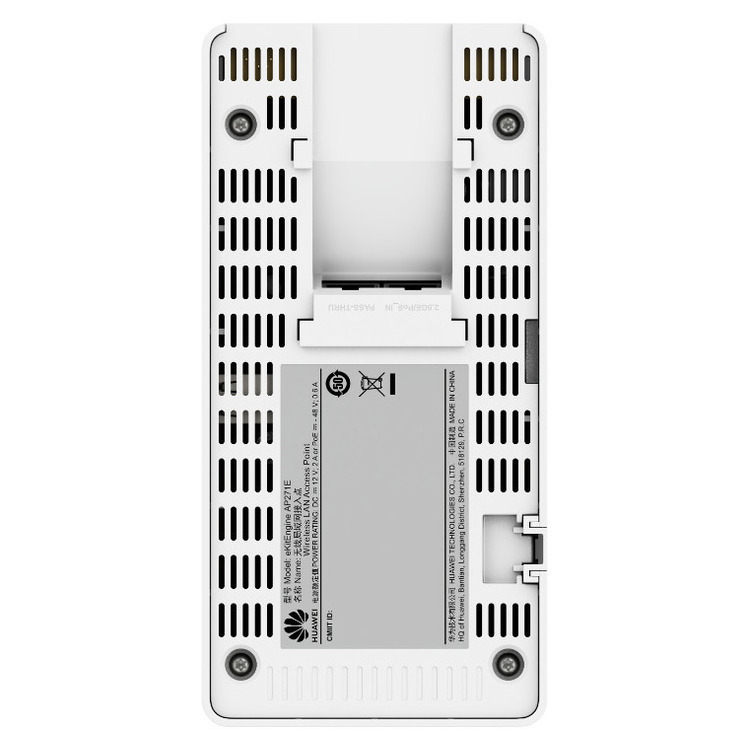

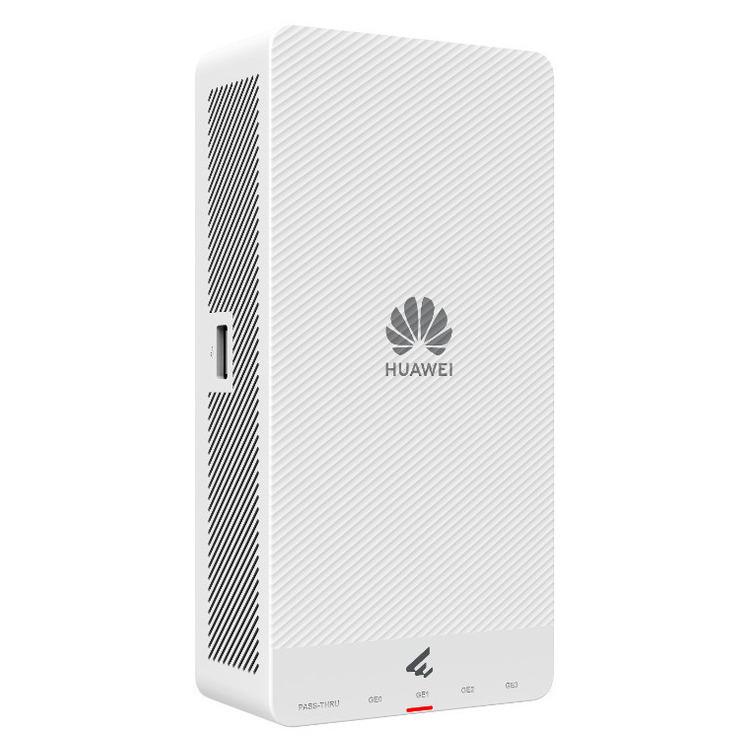

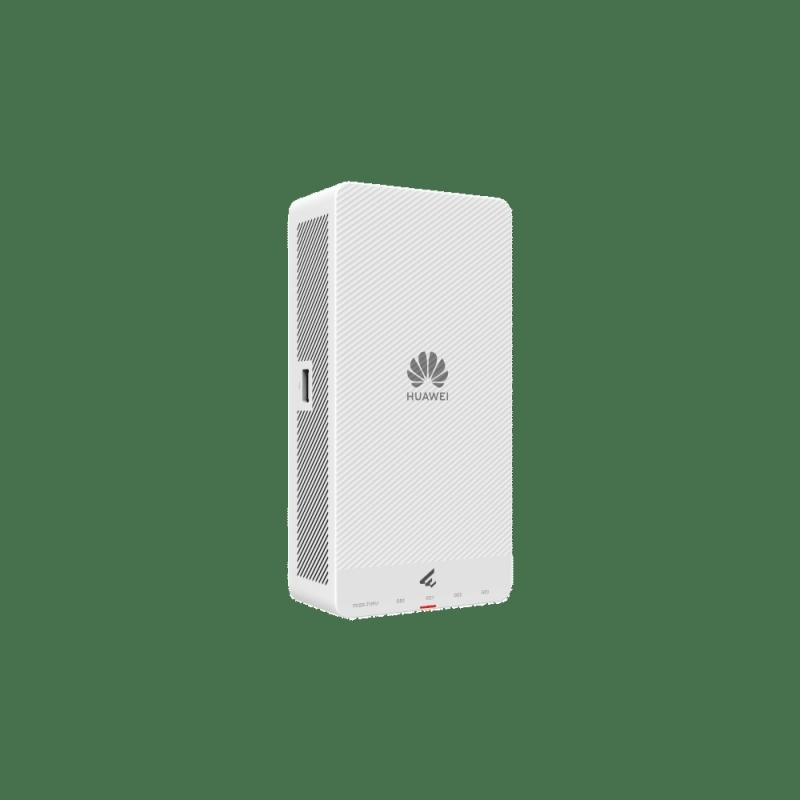

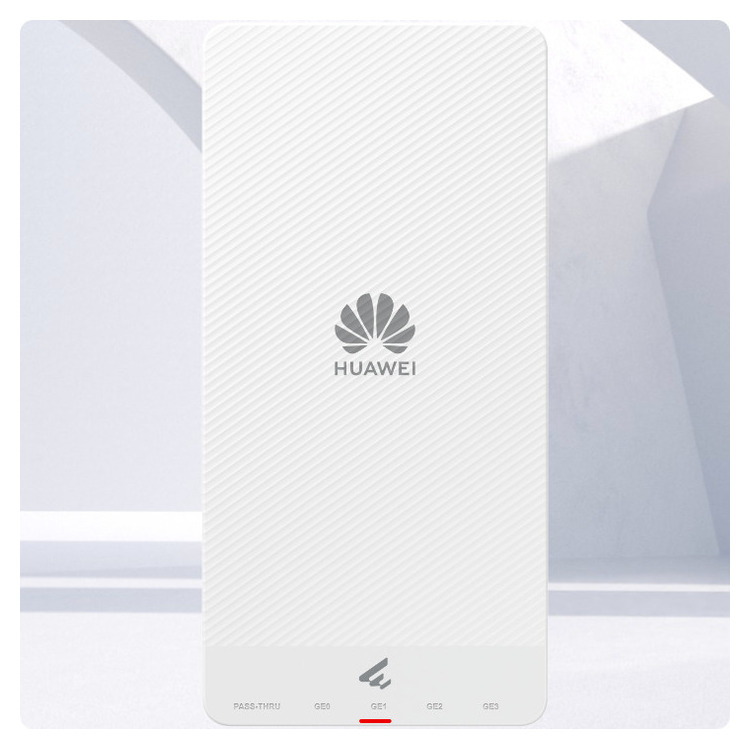

Huawei eKitEngine AP271E Σημείο Πρόσβασης (Wall‑Plate) Wi‑Fi 7

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  Huawei eKitEngine AP271E
• Brand
  Huawei
• Wi‑Fi Standard
  Wi‑Fi 7 (802.11be)
• Maximum Throughput
  3.57 Gbps (3600 Mbps)
• Frequencies
  Dual‑band: 2.4 GHz (2×2 MIMO) + 5 GHz (2×2 MIMO)
• 2.4 GHz Rate
  Up to 688 Mbps
• 5 GHz Rate
  Up to 2.88 Gbps (2882 Mbps)
• Channel Width
  Up to 160 MHz
• Modulation
  4096‑QAM
• MU‑MIMO
  Supported
• Max Concurrent Users
  256
• Max SSIDs
  16 (typical for AP27xE series)
• Uplink Port
  1 × 2.5 GE (100M/1000M/2.5GE)
• Downlink Ports
  4 × GE (10M/100M/GE)
• Pass‑through Ports
  2 × RJ45
• PoE Out
  No (AP271E does not provide PoE out)
• Transmit Power
  ~23 dBm (2.4 / 5 GHz combined)
• Antenna Gain
  ~4 dBi (2.4 GHz); ~5 dBi (5 GHz) — estimated from series
• Security
  WPA3, WPA2, WPA, 802.1X, WEP, WAPI
• Management
  HUAWEI eKit App, SNC platform, local web/WAC
• Work Modes
  Fit, Fat, Cloud
• Power Consumption
  ~13.2 W
• Dimensions
  175 × 86 × 45 mm
• Weight
  ~405 g
• Mounting
  Wall plate (fitted to junction box), desk or ceiling mounting options
• Target Use Cases
  Hotels, hospitals, schools, small/medium commercial, high‑density deployments
