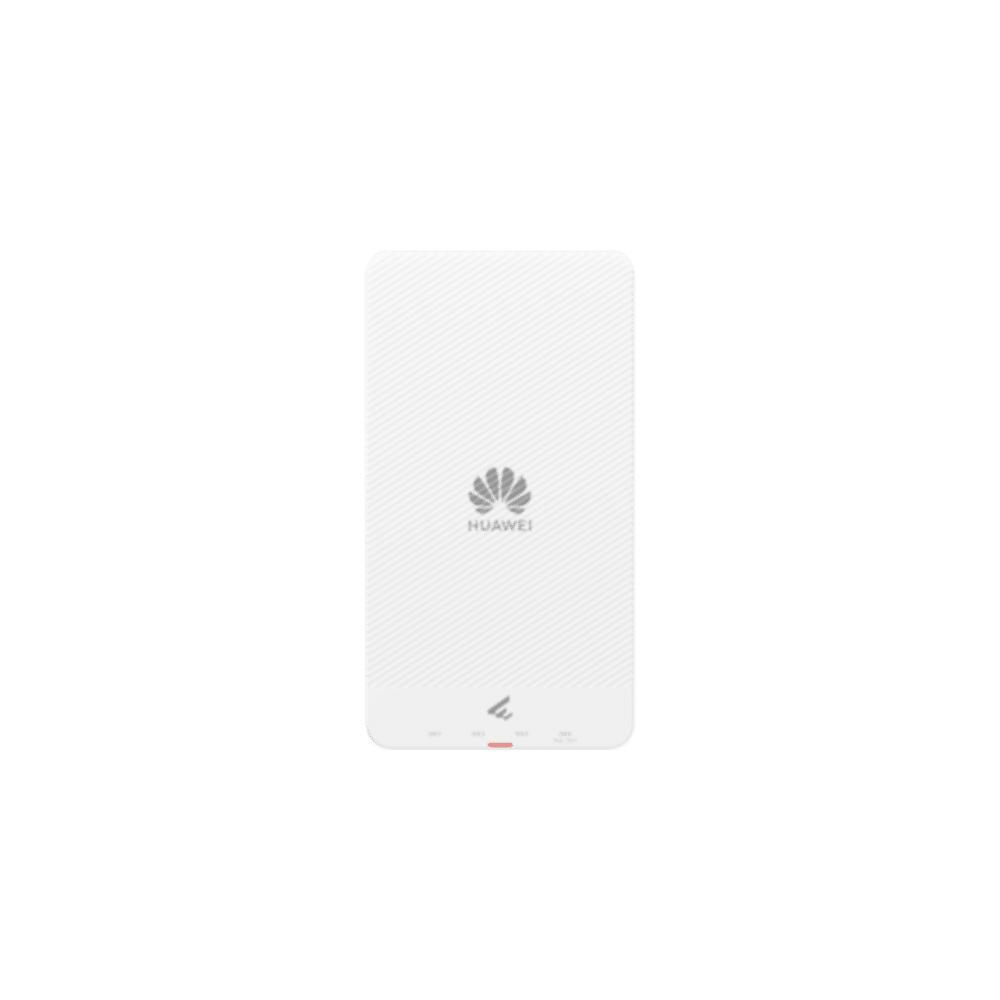

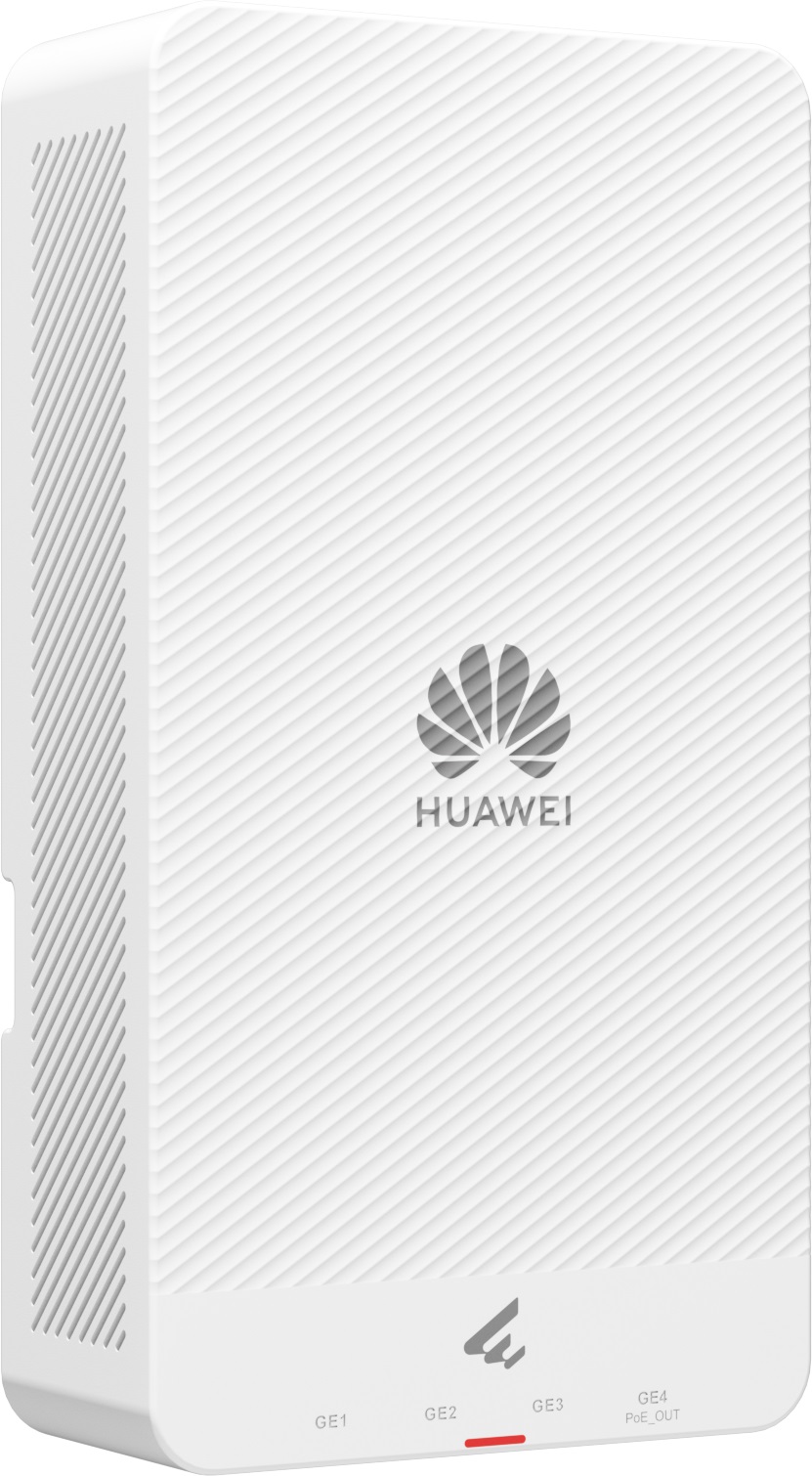

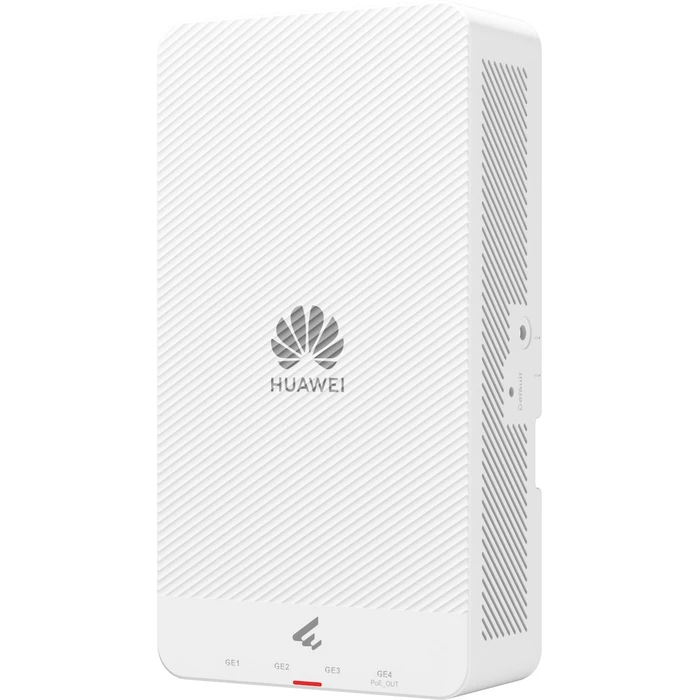

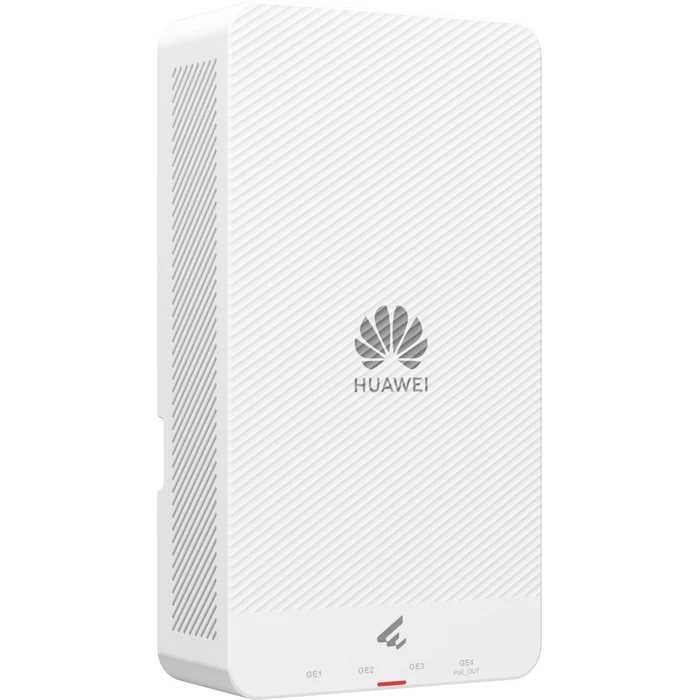

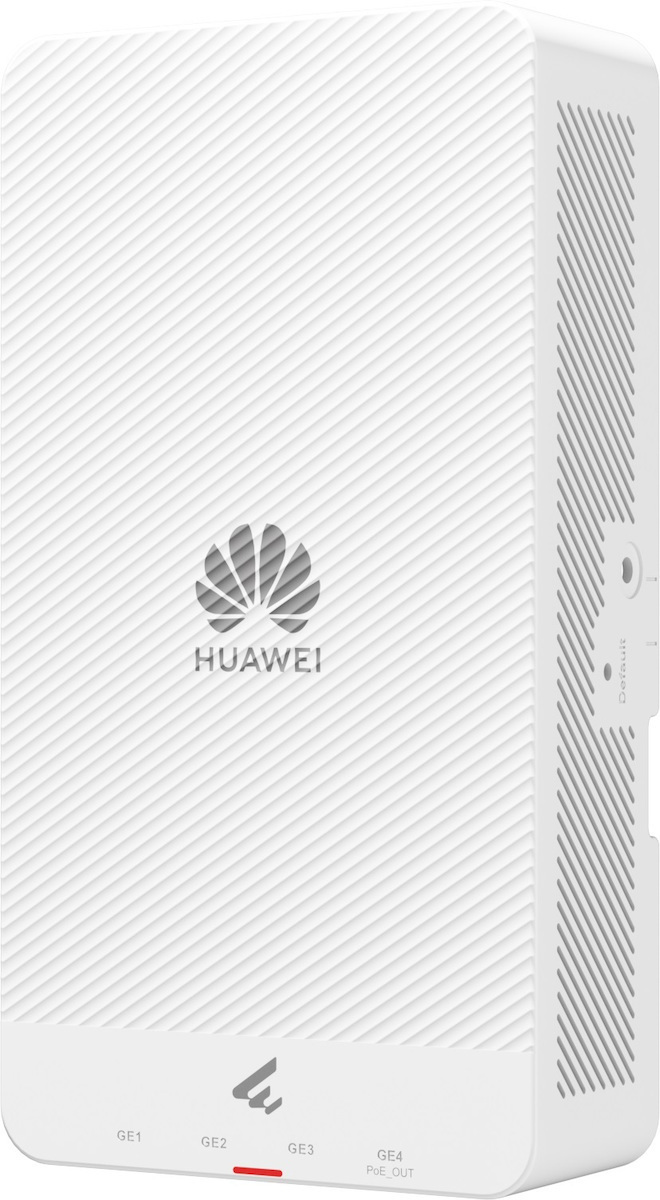

Huawei AP266 eKitEngine Σημείο Πρόσβασης Wi‑Fi 6 Διπλής Ζώνης (2.4 & 5 GHz)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Huawei
• Model
  eKitEngine AP266 (AP266)
• Product Type
  Indoor wall-plate Wi‑Fi 6 access point
• Wi‑Fi Standard
  IEEE 802.11ax (Wi‑Fi 6), backward compatible with 802.11a/b/g/n/ac
• Frequency Bands
  Dual‑band 2.4 GHz and 5 GHz
• Maximum Data Rate
  Up to 2.975 Gbps total (575 Mbps @2.4 GHz + 2.4 Gbps @5 GHz)
• Spatial Streams
  4 spatial streams (2×2 per band)
• MU‑MIMO
  Supported (both downlink and uplink)
• OFDMA
  Supported
• QAM
  1024‑QAM
• Channel Bandwidth
  Supports up to 160 MHz
• Antenna
  Built‑in dual‑band smart antenna array
• Antenna Gain
  4 dBi (2.4 GHz & 5 GHz)
• Max Transmit Power
  23 dBm (subject to regulatory limits)
• Ports

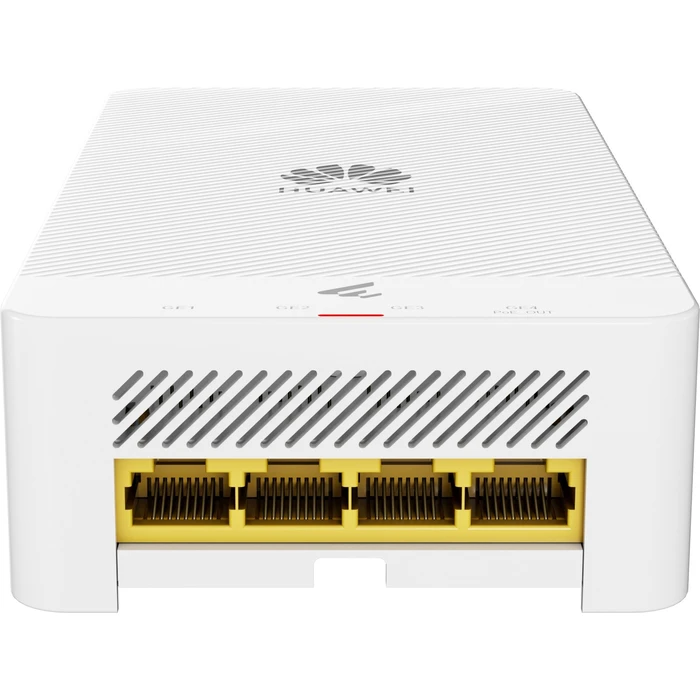

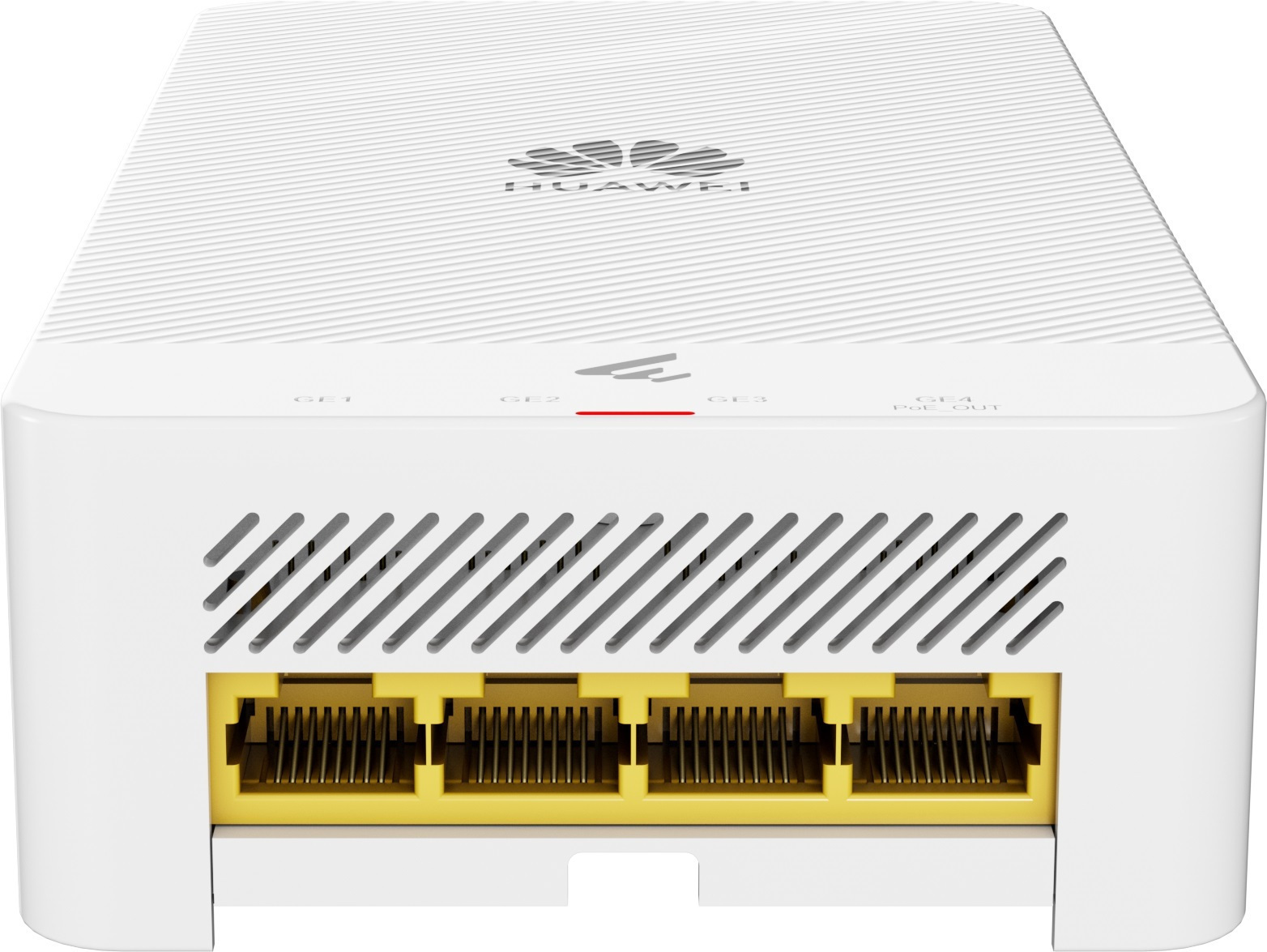

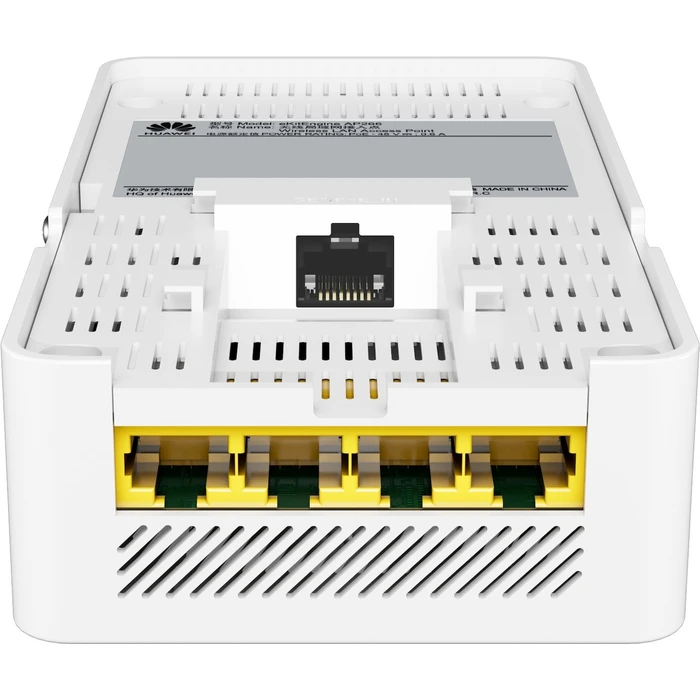

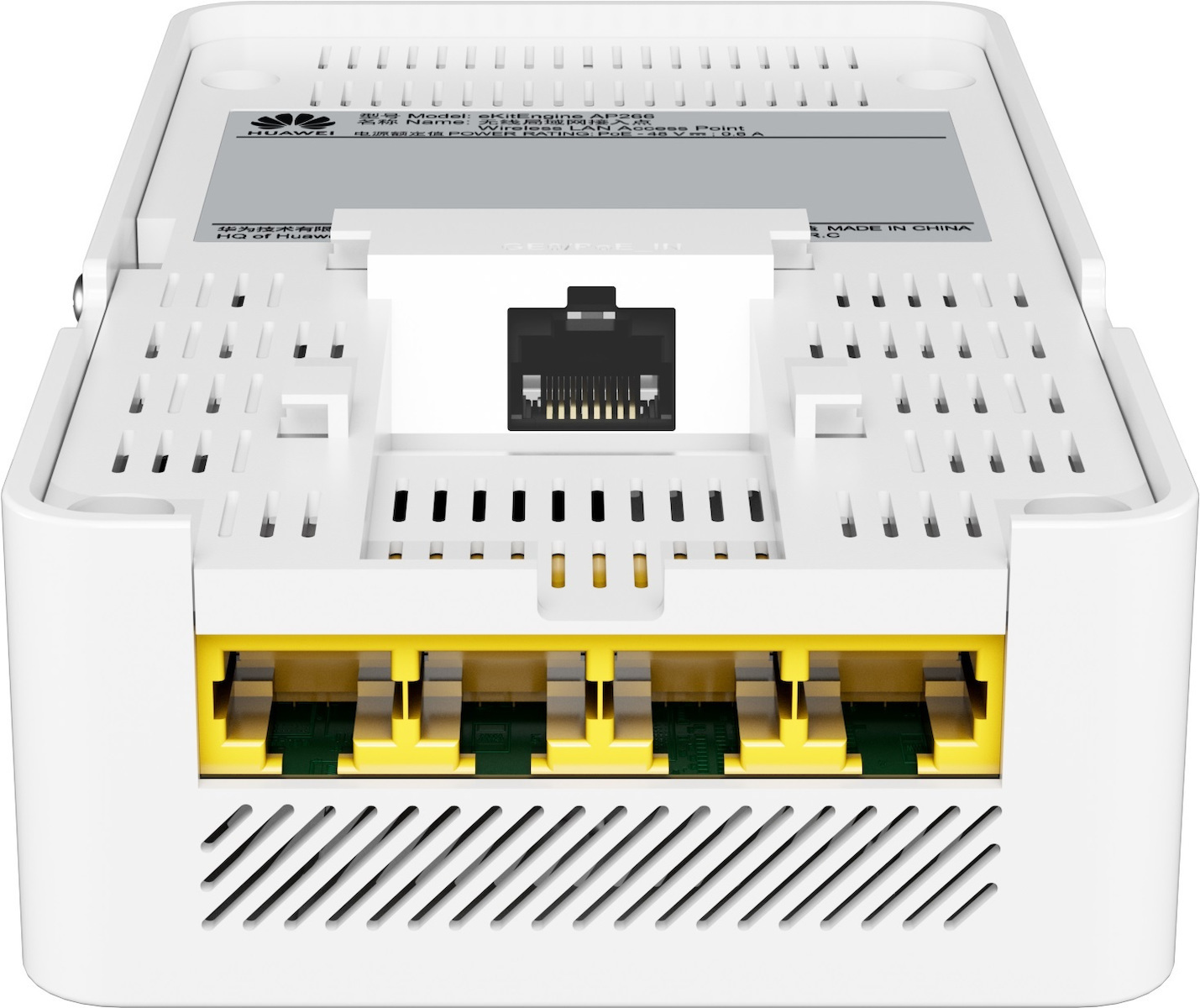

  1 x Gigabit Ethernet uplink, 4 x Gigabit Ethernet downlink (1 downlink with PoE OUT)
• PoE
  IEEE 802.3at PoE IN supported; PoE OUT supported on one downlink
• Maximum Power Consumption
  9.4 W (excluding PoE OUT)
• SSIDs
  Up to 16
• Max Clients
  Up to 128 STAs
• Security
  WEP, WPA2, WPA3, 802.1X, PMF, DTLS
• Management
  Web GUI, WAC, eKit App, SNC cloud platform
• Mounting Options
  Wall plate, ceiling, desk, junction box
• Dimensions
  86 mm × 160 mm × 38 mm
• Weight
  ≈230 g
• Operating Temperature
  0°C to 40°C
• Storage Temperature
  –40°C to +70°C
• Humidity
  5% to 95% non‑condensing
• Warranty
  3 years (as listed by some resellers)
• Use Case
  Hospitality, offices, residential wall‑plate installations
