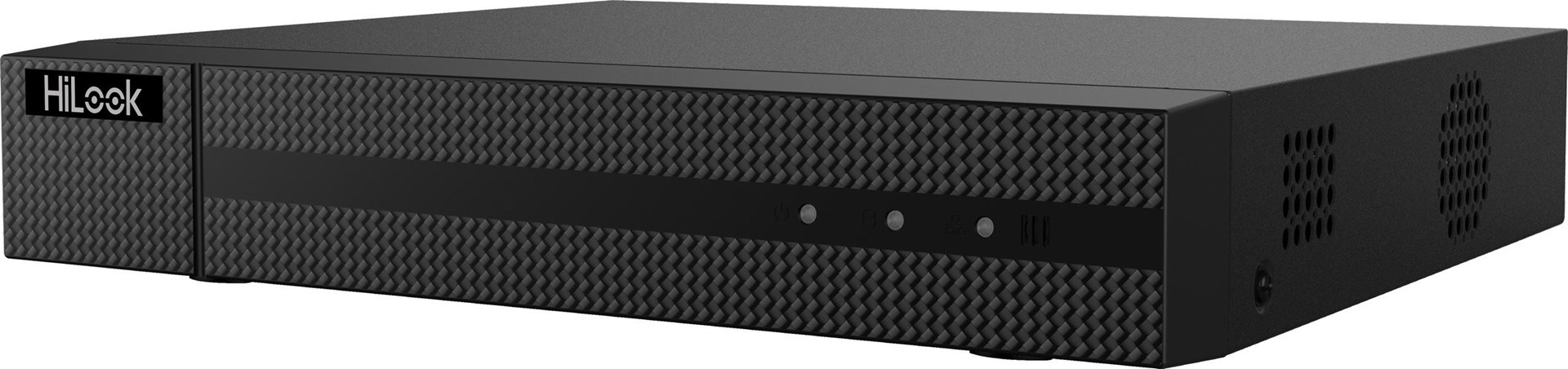

Hikvision NVR-108MH-D/8P(D) Καταγραφικό NVR 8 Καναλιών με PoE, Υποστήριξη έως 6MP

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  HiLook (by Hikvision)
• Model
  NVR-108MH-D/8P(D)
• Type
  Network Video Recorder (NVR) with integrated PoE switch
• Channels
  8 IP channels (PoE)
• Max camera resolution (input)
  Up to 6 MP
• Supported recording resolutions
  6 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Video compression
  H.265+ / H.265 / H.264+ / H.264
• Max incoming bandwidth
  80 Mbps
• Max outgoing bandwidth
  80 Mbps
• Decoding capability
  1 channel @ 6 MP (30 fps), 2 channels @ 4 MP (30 fps), 4 channels @ 1080p (30 fps)
• PoE ports
  8 × RJ-45 10/100 Mbps (IEEE 802.3af/at)
• PoE budget
  ≤ 75 W (system budget)
• Network interface (LAN)
  1 × RJ-45 10/100 Mbps
• Video outputs
  1 × HDMI (1920 × 1080p @ 60Hz), 1 × VGA (1920 × 1080p @ 60Hz)
• Storage bays
  1 × SATA (supports up to 8 TB HDD)
• USB ports
  2 × USB 2.0 (front/back)
• Smart features
  Line crossing detection, Intrusion detection, Smart Search, Smart Playback
• ONVIF support
  Yes
• Remote connections
  Up to 32 simultaneous remote connections
• Power supply
  48 VDC, 1.88 A (external adapter included)
• Power consumption (idle estimate)
  ≤ 10 W (device only, excluding PoE cameras)
• Operating temperature
  -10 °C to +55 °C
• Operating humidity
  10% to 90% RH (non-condensing)
• Chassis
  1U rack-mountable
• Dimensions (W × D × H)
  260 mm × 225 mm × 48 mm
• Weight
  ≤ 1 kg
• Certifications
  CE (EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4)
• Included accessories
  DC 48V/1.88A power adapter, USB mouse, SATA data & power cable, quick start guide
