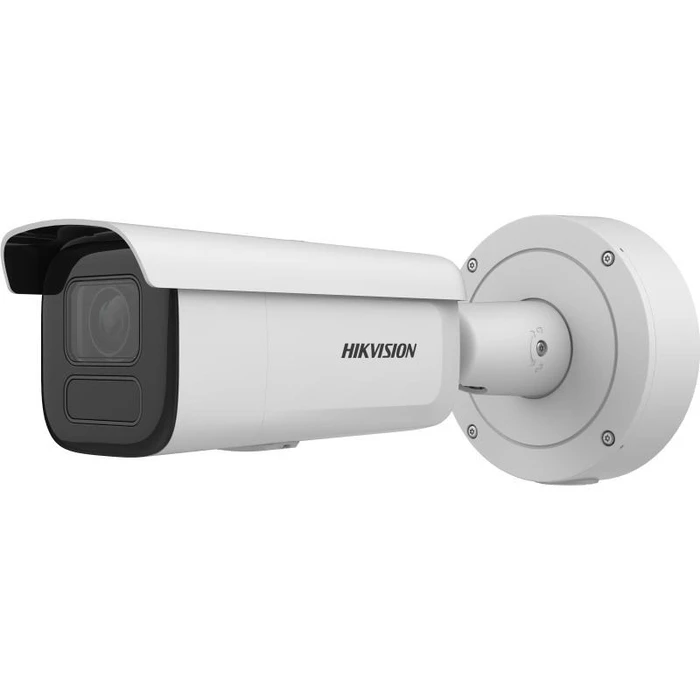

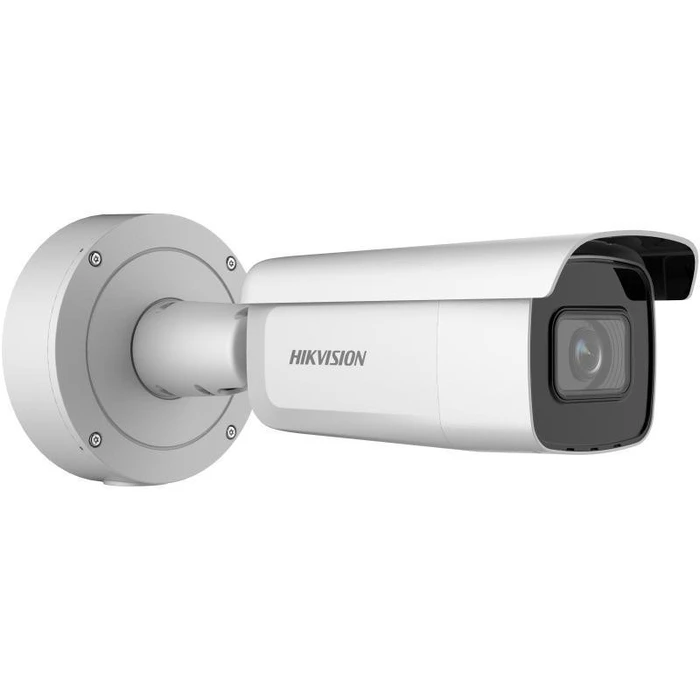

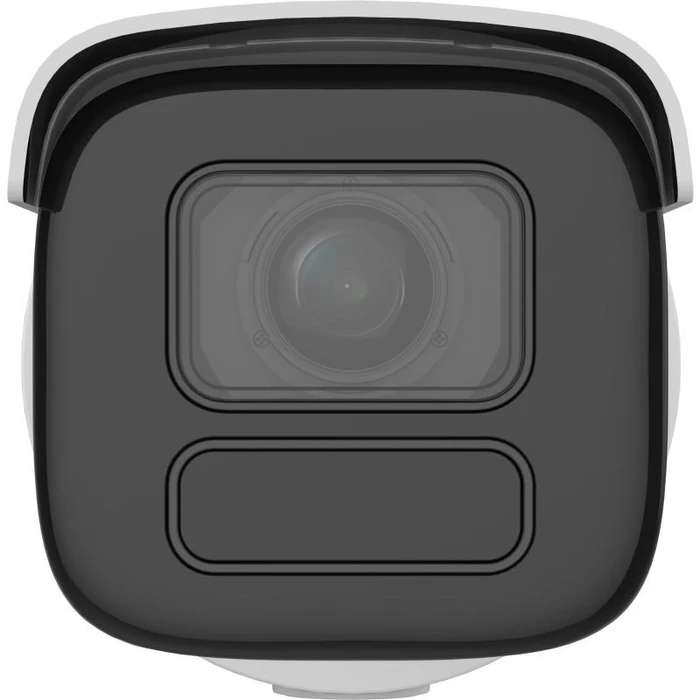

Hikvision Ultra Series (SmartIP) DS-2CD3686G2-IZS (7-35mm) Bullet IP κάμερα ασφαλείας εσωτερικού & εξωτερικού χώρου 8MP (3840x2160)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Model
  DS-2CD3686G2-IZS(7-35mm)(H)(eF)
• Brand
  Hikvision
• Type
  Bullet IP security camera
• Form factor
  Bullet
• Placement supported
  Indoor & outdoor
• SKU
  WLONONWCRTZX7
• EAN
  6942160410579
• MPN
  100568386
• Maximum resolution
  3840 x 2160 pixels (8 MP)
• Total megapixels
  8 MP
• Sensor type
  CMOS, progressive scan
• Optical sensor size
  1/1.8" (25.4 / 1.8 mm)
• Number of sensors
  1
• Lens focal length range
  7 - 35 mm (varifocal)
• Maximum aperture number
  f/1.6
• Focus
  Motorized / Manual (Auto-focus)
• Lens viewing angle (horizontal)
  15 - 42°
• Lens viewing angle (vertical)
  9 - 23°
• Lens viewing angle (diagonal)
  17 - 49°
• Field of view / zoom
  Motorized varifocal 7-35mm
• Frame rate
  30 fps
• Supported video modes
  720p, 1080p, 1520p, 2160p, 360p, 480p, 3200x1800
• Video compression formats
  H.264, H.264+, H.265, H.265+
• Bit rate range
  16 - 320 Kbit/s; overall bitrate 32 Kbps - 16 Mbps
• Bit rate control
  CBR, VBR
• Region of Interest (ROI)
  Yes
• Wide Dynamic Range (WDR)
  120 dB
• Back Light Compensation (BLC)
  Yes
• Highlight Compensation (HLC)
  Yes
• Noise reduction technology
  3D noise reduction
• Smart IR
  Yes (IR LED, 850 nm)
• Night vision
  Yes
• Night vision distance
  80 m
• Minimum illumination
  0 lx
• Auto-tracking
  Yes
• Day/night mode
  Yes
• Privacy masking areas
  4
• Video recording
  Yes
• Video streaming
  Yes
• Audio formats supported
  MP3, PCM, G.711 µ-law, G.711 A-law, AAC-LC, G.722.1, G.726, MP2L2
• Microphone / Audio
  Audio supported (formats listed)
• Storage types
  MicroSD (TransFlash), MicroSDHC, MicroSDXC, NAS
• Maximum memory card size
  512 GB
• Card reader integrated
  Yes
• Built-in HDD
  No
• eMMC capacity
  2 GB
• Flash memory
  40 MB
• RAM capacity
  350 MB
• Networking standards
  IEEE 802.3at (PoE)
• Ethernet LAN
  Yes (RJ-45), Fast Ethernet
• PoE power consumption
  15 W
• Power consumption (max)
  13 W
• Power source type
  DC 12V, PoE
• DC output voltage
  12 V
• DC output current
  1.08 A
• Connectivity technology
  Wired
• Wi-Fi
  No
• Bluetooth
  No
• Number of users supported
  32 users
• Number of simultaneous live view channels
  6 channels
• User access level
  Administrator, Operator, User
• Security features
  HTTPS encryption, digest authentication, IP address filtering, password protection, password reset via email, audit log, heartbeat, digital watermark
• IVS / AI features
  Intrusion, Face detection, Region entrance detection, People counting, Region exiting detection, Line crossing detection
• AI software framework
  Caffe, TensorFlow, ONNX, PaddlePaddle
• Open platform version
  HEOP 2.0
• Languages supported
  33 (Multi)
• Dynamic range
  120 dB
• Supported programming languages
  C++, C
• Pan range
  0 - 355°
• Tilt angle range
  0 - 90°
• Angle of rotation
  360°
• Camera pan control
  Yes
• Camera tilt control
  Yes
• Tilt/Pan control type
  Motorized control supported
• Camera shutter speed
  1/100000 - 1/3 s
• Signal-to-Noise Ratio (SNR)
  52 dB
• Detect distance (wide)
  218 m
• Identify distance (wide)
  21 m
• Observe distance (wide)
  86 m
• Recognize distance (wide)
  43 m
• Observe distance (tele)
  230 m
• Detect distance (tele)
  580 m
• Identify distance (tele)
  58 m
• Recognize distance (tele)
  116 m
• IR wavelength
  850 nm
• Alarm input channels
  1
• Alarm output channels
  1
• Alarm input/output
  Yes
• Audio/Alarm integration
  Yes
• Mirror
  Yes
• Privacy protection
  Password protection, privacy masking
• Reset button
  Yes
• Operating temperature range
  -30 - 60 °C
• Storage temperature range
  -30 - 60 °C
• Operating relative humidity
  0 - 95%
• Storage relative humidity
  0 - 95%
• IK code
  IK10
• International Protection (IP) code
  IP67
• Housing material
  Aluminium
• Product colour
  White
• Mounting type
  Wall
• Placement
  Indoor & Outdoor
• Dimensions (length)
  332.1 mm
• Dimensions (diameter)
  144 mm
• Weight
  1.55 kg
• Package weight
  2.6 kg
• Package dimensions (depth x width x height)
  19 x 38.5 x 18 cm
• Sustainability compliance
  Yes
• Compliance certificates
  REACH, WEEE, BIS, RoHS, CE, UL, CB
