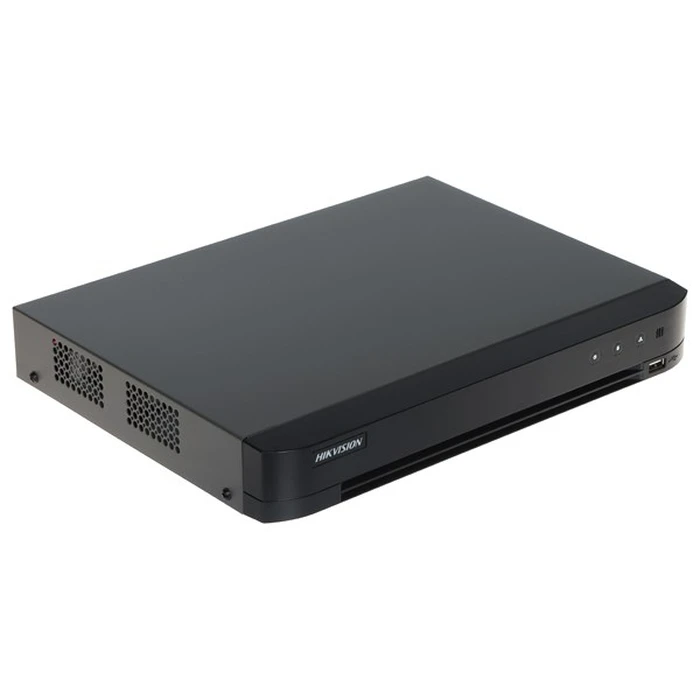

Καταγραφικό 5-σε-1 Hikvision iDS-7204HUHI-M1/PXT/4A+4/1ALM

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Hikvision
• Model
  iDS-7204HUHI-M1/PXT/4A+4/1ALM
• Product Type
  5-in-1 hybrid DVR (Turbo HD / AcuSense)
• Analog Channels
  4 (BNC)
• IP Camera Inputs
  Up to 8 channels
• PoC Support
  Yes (Hikvision PoC cameras)
• Adaptive Input Standards
  HDTVI / AHD / CVI / CVBS / IP
• Video Compression
  H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
• Max Encoding Resolution
  Up to 8 MP per channel
• Main Stream Frame Rates
  Varies by resolution (e.g., 8 MP @8 fps, 4 MP @15 fps, 1080p@25/30 fps)
• Sub-stream
  WD1/4CIF/CIF @25/30 fps
• Bitrate Range
  32 Kbps to 10 Mbps
• AI/Analytics
  AcuSense: Human/Vehicle classification, Perimeter protection, Motion Detection 2.0, Facial recognition
• Face Library
  Up to 16 face libraries
• Face Comparison Alarm
  2-channel face picture comparison alarm for HD analog camera
• HDD Bays
  1 × SATA (supports up to 10 TB)
• Video Outputs
  HDMI (up to 2560×1440 @60Hz) and VGA (up to 1080p)
• Audio
  HDTVI Two-Way Audio support
• Coax Control
  Coaxitron supported
• Network
  Hik-Connect, DDNS, compatible with major Wi‑Fi dongles
• Power (typical)
  12 VDC, 1.5 A (variant/PoC listings may indicate 48 VDC PoC supply for PoC cameras)
• Power Consumption
  ≤ 15 W (without HDD) (some listings show 20 W for PoC variant)
• Operating Temperature
  −10 °C to +55 °C
• Relative Humidity
  10% to 90%
• Form Factor
  1U rack/chassis
• Dimensions (W×D×H)
  319 × 236 × 48 mm
• SKU
  WLONONWCROYZW
• EAN / Barcode
  6942160408491
• MPN
  300229475
