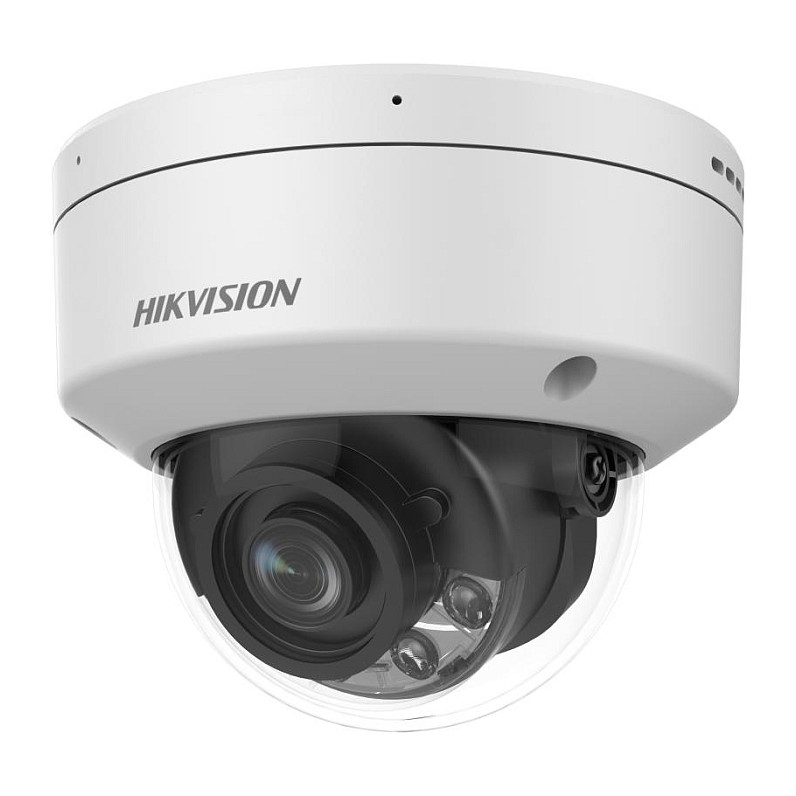

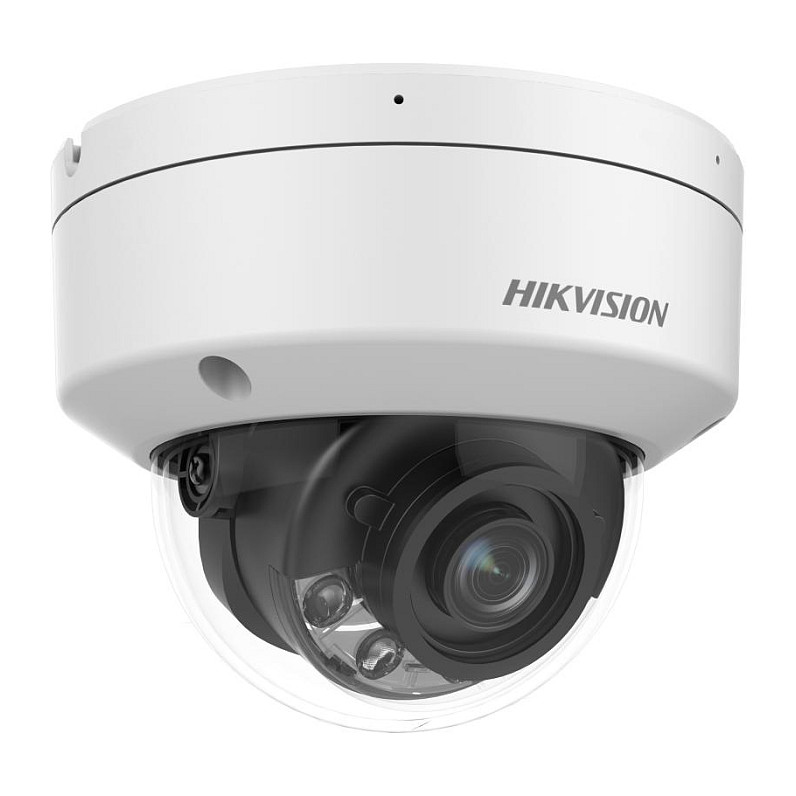

Hikvision iDS-2CD7D47G0-XS(4mm)(O-STD) — 4MP DeepinView/DarkFighterS δικτυακή θόλος κάμερα

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Hikvision
• Model
  iDS-2CD7D47G0-XS(4mm)(O-STD)
• SKU
  21164145
• EAN / Barcode
  6942160423203
• MPN
  iDS-2CD7D47G0-XS(4mm)(O-STD)
• Category
  Netzwerk > Netzwerkkameras
• Camera type
  Fixed dome network (IP) camera
• Series / Family
  DeepinView Series, DarkFighterS
• Image sensor
  1/1.8" Progressive Scan CMOS
• Maximum resolution
  2688 × 1520
• Megapixels
  4 MP
• Minimum illumination (Color)
  0.0003 Lux @ F1.0, AGC ON
• Minimum illumination (B/W)
  0.0001 Lux @ F1.0, AGC ON
• Minimum illumination (with IR)
  0 Lux (with IR)
• Shutter time
  1 s to 1/100,000 s
• Day & Night
  IR cut filter, blue glass module
• WDR
  140 dB Wide Dynamic Range
• Lens focal length
  4 mm (fixed)
• Aperture
  F1.0
• Field of view (4 mm)
  Horizontal 94.7°, Vertical 49.4°, Diagonal 112.6°
• Pan/Tilt/Rotate adjustment
  Pan 0°–355°, Tilt 0°–75°, Rotate 0°–355°
• Supplementary light type
  Hybrid (IR + White Light)
• Supplementary light range
  Up to 40 m
• IR wavelength
  850 nm
• Smart supplement light
  Yes
• Video compression
  H.265+, H.265, H.264+, H.264, MJPEG
• Streams
  Up to 5 streams
• Main stream frame rate
  Up to 25 fps (50 Hz) / up to 30 fps (60 Hz)
• Video bit rate
  32 Kbps to 8 Mbps
• Deep learning / Open platform
  HEOP support, OpenDev SDK (HEOP 2.0), supports Caffe/TensorFlow/PaddlePaddle/ONNX
• Computing power
  1.5 TOPS
• Memory / Storage (on-device)
  40 MB open resources, 350 MB smart RAM, 1 GB eMMC
• Network interface
  RJ45 10/100 Mbps Ethernet
• Network protocols
  TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, SRTP, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv4/IPv6, UDP, Bonjour, SSL/TLS, ARP, WebSocket
• Power input
  12 V DC, PoE
• Power consumption
  Approximately 10.2 W
• Ingress protection
  IP67
• Vandal resistance
  IK10
• Operating temperature
  (manufacturer typical range; consult datasheet)
• Dimensions
  Ø97.6 × 121.5 mm
• Product weight
  620 g
• Material
  Rugged enclosure (metal/plastic composite typical for turret/dome housings)
• Mounting
  Ceiling / wall mount (standard dome mounting options)
• Typical applications
  Low-light surveillance, perimeter, entrances, parking lots, critical infrastructure
