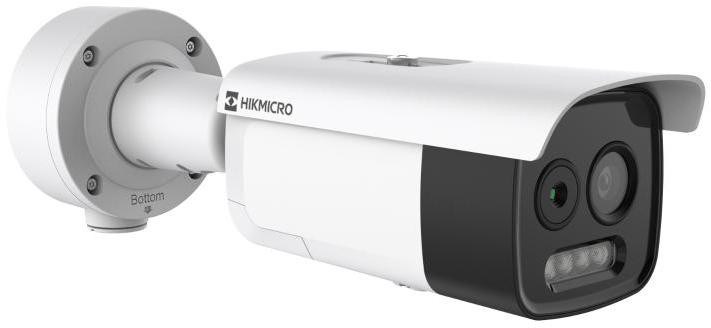

Κάμερα IP Θερμική Διπλή Hikvision HM-TD2618-7/G0/T1A (5 MP + 160×120 VOx)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Hikvision
• Model
  HM-TD2618-7/G0/T1A
• Product type
  Dual thermal + optical IP bullet camera (perimeter/fire detection)
• Optical resolution
  5 MP (2688 × 1944), 1/2.7" progressive-scan CMOS
• Thermal resolution
  160 × 120 pixels (VOx)
• Thermal sensitivity (NETD)
  ≤ 25 mK @ 25 °C (F1.0)
• Thermal lens
  6.9 mm (approx. 7 mm), FOV ~24.6° × 18.5°
• Optical lens
  8 mm (fixed)
• Optical minimum illumination
  0.0089 Lux @(F1.6, AGC ON), 0 Lux with IR
• Thermal frame rate
  25 fps (typical)
• Optical features
  WDR 120 dB, progressive scan
• Temperature measurement range
  Standard: −20 °C to 150 °C (configurable modes; some detection modes report up to 550 °C for fire alarm functionality)
• Temperature measurement accuracy
  Default alarm configuration: ±8 °C (see datasheet for calibration/mode details)
• IR/Illumination range
  IR up to 60 meters (supporting low-light optical imaging)
• Zoom
  4× (electronic/optical combined depending on configuration)
• Video analytics
  Embedded perimeter protection analytics and alarm support
• Alarm I/O
  2 inputs / 2 outputs
• Network
  IP-based, supports PoE+ (802.3at) and 12 V DC power
• Storage
  microSD slot, up to 512 GB
• Ingress protection
  IP67 (suitable for outdoor use)
• Impact protection
  IK10
• Operating temperature
  Designed for outdoor temperatures (see datasheet for full range)
• Material / Housing
  Rugged metal housing (die-cast aluminum typical for PRO series)
• Included accessories
  DS-1260ZJ junction box (included)
• Mounting
  Bullet mount; compatible with supplied junction box
• Dimensions (camera body)
  Not specified exactly in public datasheet (see official datasheet)
• Weight (product)
  Approximately 1500 g
• Packaging
  Includes camera, DS-1260ZJ junction box, mounting accessories and documentation
• Compliance/features
  Perimeter protection analytics, fire/temperature alarm modes, PoE+, microSD recording, WDR
