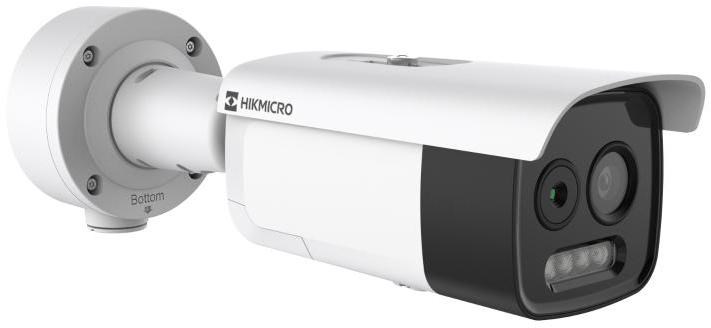

Κάμερα IP Hikvision HM-TD2618-10/G0/T1A Θερμική & Οπτική Bi-spectrum Bullet Camera

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Hikvision
• Model / MPN
  HM-TD2618-10/G0/T1A
• SKU / Item code
  WLONONWCRT997
• EAN / Barcode
  6974004647520
• Product Type
  Thermal & Optical Bi-spectrum Network Bullet Camera
• Series
  HeatPro Series / Security Thermal Cameras
• Thermal Resolution
  160 × 120
• Thermal Pixel Pitch
  12 μm
• Thermal Sensor Type
  VOx Uncooled Focal Plane Array (UFPA)
• Thermal NETD
  ≤25 mK (25°C, F1.0)
• Thermal Focal Length
  9.7 mm
• Thermal Field of View
  18.0° × 13.5° (H × V)
• Thermal IFOV
  1.24 mrad
• Thermal Spectral Range
  8 μm – 14 μm
• Thermal Minimum Focus Distance
  1.5 m
• Thermal Aperture
  F1.0
• Thermal Digital Zoom
  ×2, ×4
• Optical Sensor
  1/2.7" Progressive Scan CMOS
• Optical Resolution
  5 MP (2688 × 1944)
• Optical Focal Length
  12.4 mm
• Optical Field of View
  24.6° × 14° (H × V)
• Optical Aperture
  F1.6
• Optical Minimum Illumination
  0.0089 Lux @(F1.6, AGC ON), 0 Lux with IR
• Optical Shutter Speed
  1 s to 1/100,000 s
• Optical WDR
  120 dB
• IR Illumination Distance
  Up to 80 m
• Video Analytics
  Video Content Analysis (VCA) 3.0 - high-accuracy human/vehicle detection and classification
• Image Fusion
  Bi-spectrum thermal + optical image fusion
• Smart Hybrid Light
  White light / IR / Smart mode
• Temperature Measurement Range
  -20 °C to 150 °C (-4 °F to 302 °F)
• Temperature Measurement Accuracy
  ±8 °C (±14.4 °F)
• Alarms
  Temperature exception alarm, VCA-based alarms
• Storage
  microSD card support up to 512 GB
• Network / Power
  PoE support (per product listings)
• Environmental Rating
  IP67 (dust/water resistant)
• Vandal Resistance
  IK10
• Operating Temperature
  -40 °C to 65 °C (-40 °F to 149 °F)
• Operating Humidity
  ≤95%
• Dimensions
  349.1 mm × 113 mm × 105 mm
• Weight (product)
  1200 g (estimated)
• Warranty
  12 months
