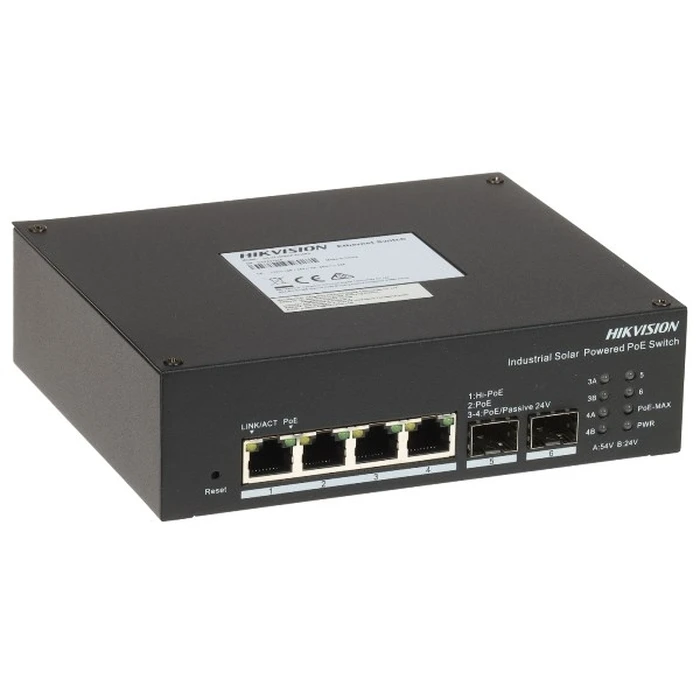

Hikvision DS-3T1506HP-EI-UPS LinkVu - Βιομηχανικός 6-θύρων Gigabit PoE Switch με ενσωματωμένο UPS (για ηλιακές εφαρμογές)

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Hikvision
• Model / MPN
  DS-3T1506HP-EI-UPS
• Series
  LinkVu (Industrial)
• Product Type
  Smart Managed Industrial Gigabit PoE Switch
• Total Ports
  6 (4× RJ45 PoE + 2× SFP uplink) + 1× RS485
• PoE Ports
  4× Gigabit RJ45 (Ports 1–4)
• PoE Standards
  IEEE 802.3af (PoE), 802.3at (PoE+), 802.3bt (PoE++)
• Max Power per Port
  Port 1: up to 90 W (Hi-PoE/PoE++), Ports 2–4: up to 30 W each
• Total PoE Budget
  110 W (extended); solar-mode budgets may differ per datasheet
• Long-Range PoE
  Up to 300 m at 10 Mbps (Ports 1–4)
• Uplink Ports
  2× Gigabit SFP (fiber)
• Serial Port
  1× RS485
• Ethernet Standard
  10/100/1000 Mbps
• Switching Capacity
  14 Gbps
• Packet Forwarding Rate
  ~10.42 Mpps
• MAC Address Table
  2 K
• Buffer Memory
  1 Mbit
• Power Input (Solar)
  12–24 V DC (10 A @12V / 5 A @24V)
• Power Input (Standard)
  54 V DC (2.22 A)
• Max Power Consumption
  120 W
• Idle Power Consumption
  ~2 W
• Integrated UPS
  Yes (battery-backed UPS for continued operation)
• PoE Features
  PoE Watchdog, PoE power monitoring
• Management
  L2 features: VLAN (802.1Q up to 4094), ACL, DHCP Snooping, STP/RSTP/ERPS, Link Aggregation, QoS, SNMP v1/v2c/v3
• Monitoring Apps
  Battery health & monitoring via Hik-Partner Pro and Hik-Connect
• Protection
  Surge protection 6 kV, Lightning protection 6 kV
• Operating Temperature
  −40 °C to 75 °C
• Storage Temperature
  −40 °C to 85 °C
• Operating Humidity
  5% to 95% (non-condensing)
• Ingress / Dust
  IP30 shell (some sources list IP40 dust protection)
• Housing Material
  Metal
• Mounting Options
  DIN-rail, Wall mount, Desk mount
• Dimensions (W×H×D)
  158.00 mm × 44.00 mm × 130.00 mm
• Net Weight
  ~700 g
• Gross / Package Weight
  ~1160 g
• Warranty
  3 years
