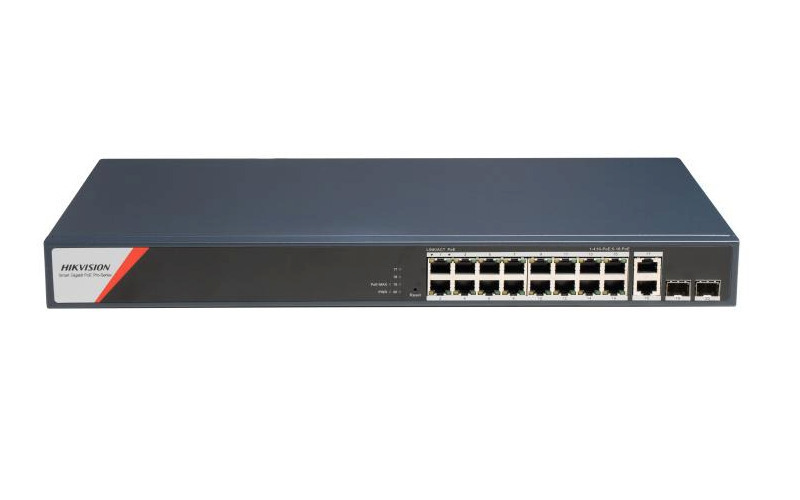

Hikvision DS-3E1520HP-SI-16P2T2F Διαχειριζόμενος L2 PoE Switch, 16 Θύρες Gigabit, 2 SFP, 230W PoE, Rackmount

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Type
  Managed
• Layer
  L2
• PoE
  Yes (IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt)
• PoE ports quantity
  16
• Total PoE budget
  230 W
• Gigabit Ethernet (copper) ports quantity
  18 (16 PoE RJ-45 + 2 additional Gigabit RJ-45)
• Fiber ports quantity
  2 (SFP)
• Ports Ethernet speed
  1000 Mbps
• Basic switching RJ-45 Ethernet ports type
  Gigabit Ethernet (10/100/1000)
• Switching capacity
  56 Gbit/s
• Forwarding rate
  29.76 Mpps
• Packet buffer memory
  4.1 MB
• MAC address table
  8000 entries
• Number of VLANs
  4094
• VLAN support
  Yes (IEEE 802.1Q)
• Link aggregation
  Yes
• Spanning tree protocol
  Yes (IEEE 802.1D, 802.1w)
• QoS support
  Yes
• Queue scheduling algorithms
  SP, Weighted Round Robin (WRR)
• Access Control List (ACL)
  Yes, 128 rules
• DHCP features
  DHCP client, DHCP snooping
• IP Source Guard (IPSG)
  Yes
• Loop protection
  Yes
• Broadcast storm control
  Yes
• Rate limiting
  Yes
• Cable length detection
  Yes
• Web-based management
  Yes
• Management interface
  Managed L2
• Power consumption (max)
  250 W
• AC input voltage
  100 - 240 V
• Power source
  AC / PoE
• Power connector
  AC-in jack
• Surge protection
  Yes, 6 kV
• Housing material
  Metal
• Rack mounting
  Yes
• Dimensions (HxWxD)
  44 x 440 x 220.8 mm
• Weight
  2.73 kg
• Package weight
  3.31 kg
• Operating temperature
  0 - 45 °C
• Storage temperature
  -40 - 85 °C
• Operating relative humidity
  5 - 95%
• Storage relative humidity
  5 - 95%
• Networking standards
  IEEE 802.1Q, IEEE 802.3at, IEEE 802.3af, IEEE 802.1ab, IEEE 802.3bt, IEEE 802.1w, IEEE 802.1D
• Forwarding performance
  29.76 Mpps
• Packet buffer
  4.1 MB
• Compliance certificates
  CB, WEEE, RCM, Low Voltage Directive (LVD), REACH, RoHS, CE, EMC
