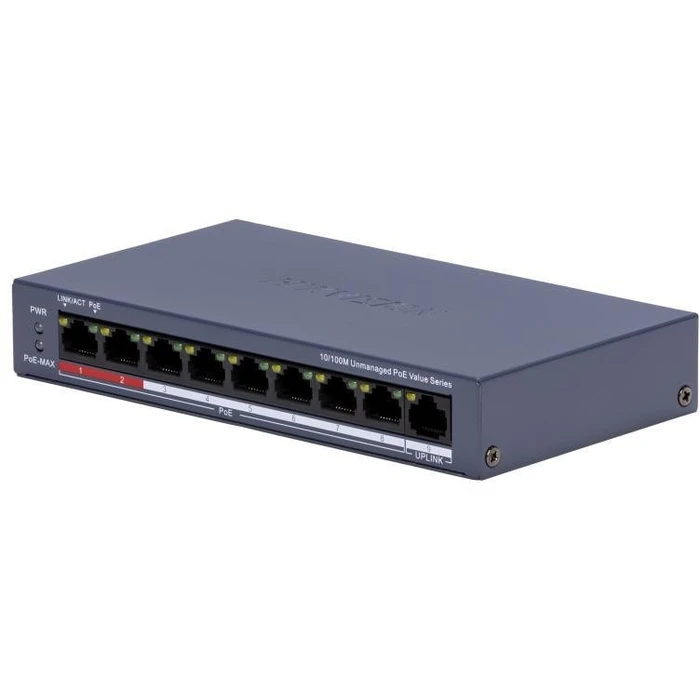

Διακόπτης PoE DS-3E0109P-E/M(C) 8 θυρών Hikvision

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Hikvision
• Model
  DS-3E0109P-E/M(C)
• SKU
  WLONONWCRSPBP
• EAN / MPN
  6936422126896
• Product Type
  Unmanaged PoE Ethernet Switch (Industrial / Long-Range)
• Ports
  8 × PoE RJ45 10/100 Mbps + 1 × RJ45 10/100 Mbps uplink
• PoE Standard
  IEEE 802.3af / IEEE 802.3at
• PoE Power per Port
  Up to 30 W
• Total PoE Budget
  60 W
• Power Supply
  48 V DC, 1.35 A (external adapter listed in some retail kits)
• Max Power Consumption
  65 W (typical listing)
• Idle Power Consumption
  5 W (typical listing)
• Switching Capacity
  1.8 Gb/s
• Packet Forwarding Rate
  1.34 Mpps
• MAC Address Table
  2K entries
• Transmission Speed
  10/100 Mbps (per port)
• Long-Range (Extend) Mode
  Supported — AF/AT up to ~250–300 m (variant-dependent); Hi-PoE up to ~150 m
• Surge Protection
  6 kV on PoE ports
• Housing Material
  Metal
• Mounting
  Desk-mounted, Wall-mounted
• Dimensions
  170 × 95 × 28 mm (listed values)
• Product Weight (net)
  350 g
• Package Weight (gross)
  890 g
• Operating Temperature
  0 °C to 40 °C (official page); some reseller listings: −10 °C to 55 °C
• Storage Temperature
  −40 °C to 85 °C
• Operating Humidity
  5% to 95% non-condensing
• LED Indicators
  Power, Link/Act, PoE
• Fanless
  Yes
• Switching Method
  Store-and-forward
• Certifications
  CE
• Warranty
  3 years
