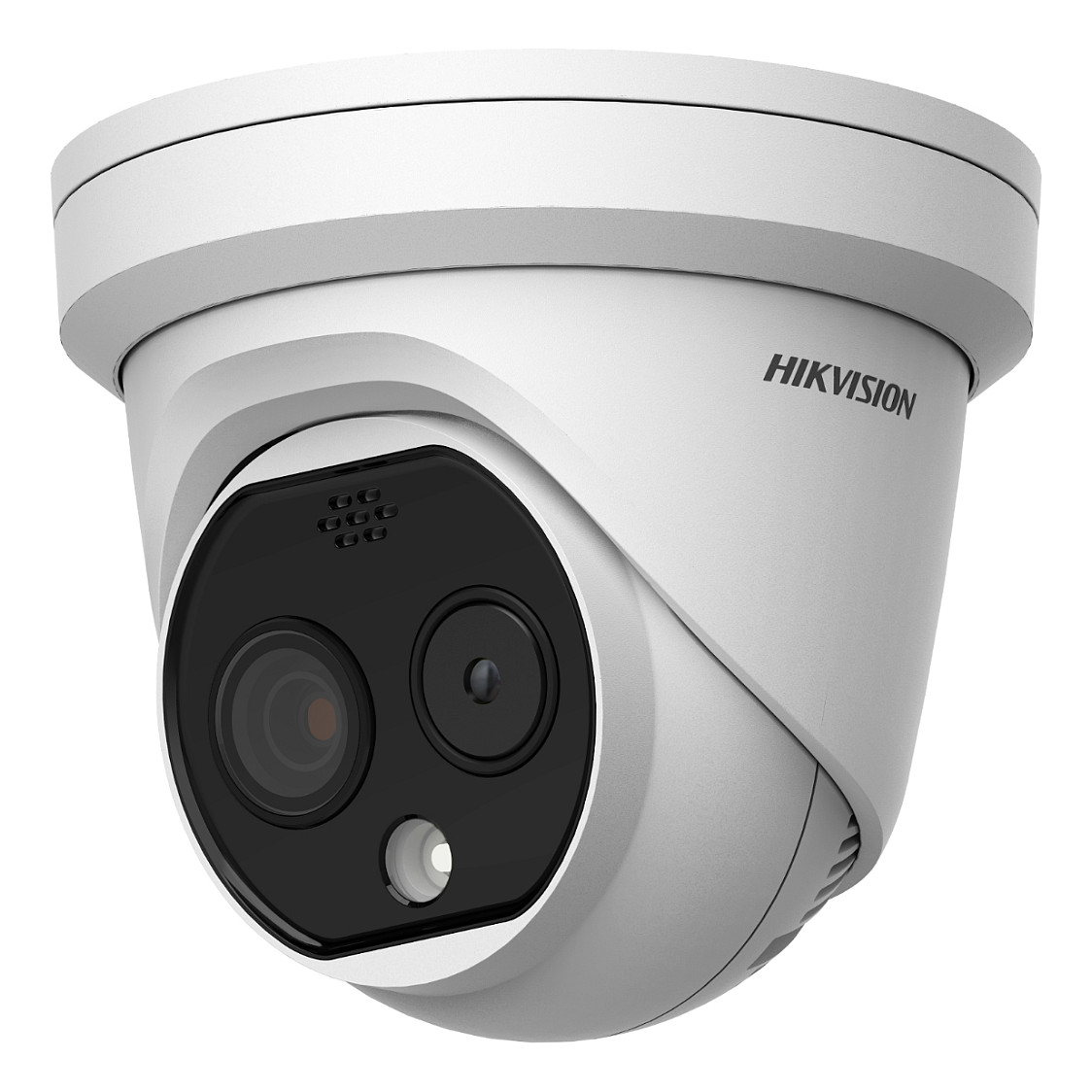

Hikvision DS-2TD1217B-6/PA(B) Θερμική Διφασματική (Bi‑Spectrum) Κάμερα Turret για Μέτρηση Θερμοκρασίας Σώματος

Περιγραφή

Τεχνικά Χαρακτηριστικά

• Brand
  Hikvision
• Model / MPN
  DS-2TD1217B-6/PA(B)
• SKU
  21164266
• EAN / Barcode
  6941264047230
• Product category
  Network thermal bi‑spectrum turret camera (HeatPro series)
• Thermal resolution
  160 × 120
• Thermal output (upscaled)
  320 × 240
• Thermal sensor type
  Vanadium Oxide (VOx) uncooled FPA
• Thermal pixel pitch
  17 μm
• Spectral range
  8 μm – 14 μm
• NETD
  < 40 mK (at 25 °C, F# = 1.1)
• Thermal focal length / lens
  6 mm (6.2 mm class listed in some docs)
• IFOV
  5.48 mrad
• Thermal field of view (H × V)
  50° × 37.2°
• Thermal minimum focus distance
  0.2 m (some listings for 6 mm variant show 0.6 m)
• Temperature measurement range
  30 °C – 45 °C
• Temperature measurement accuracy
  ±0.5 °C (typical)
• Temperature measurement modes
  Point, line, area
• Temperature alarm
  Temperature exception alarm; audio alarm and strobe light listed on some variants
• Optical image sensor
  1/2.7" Progressive Scan CMOS
• Optical resolution
  2688 × 1520 (≈4 MP)
• Optical lens focal length
  4 mm (visible channel)
• Optical field of view (H × V)
  84° × 44.8°
• Minimum illumination
  Color: 0.0176 Lux @ (F2.25, AGC ON); B/W: 0.0035 Lux @ (F2.25, AGC ON)
• Shutter speed
  1 s to 1/100,000 s
• Digital zoom
  ×2, ×4, ×8
• Image processing features
  Adaptive AGC; DDE; 3D DNR; thermal-optical overlay (PIP)
• Analytics / detection
  Perimeter protection (line crossing, intrusion, region entrance/exit on family page); temperature exception analytics
• Interfaces / I/O
  MicroSD slot (local storage), 1 audio input/1 audio output (listed by resellers), alarm I/O (1 in / 2 out listed), RS-485 (listed)
• Networking / protocols
  Standard Hikvision network camera interfaces; API/ISAPI support (listed by resellers)
• Power options
  12 V DC and PoE (listed by resellers)
• Protection / environmental
  IP66 listed by resellers; lightning protection 6 kV (listed)
• Form factor
  Turret (bi‑spectrum thermographic turret camera)
• Typical use cases
  Real-time body temperature screening in airports, customs, hospitals, schools, quarantine checkpoints
• Weight (product)
  ~500 g (approximate)
• Package dimensions (approx.)
  ≈16 × 16 × 16 cm (estimated)
• Package weight (approx.)
  ~1500 g (estimated)
